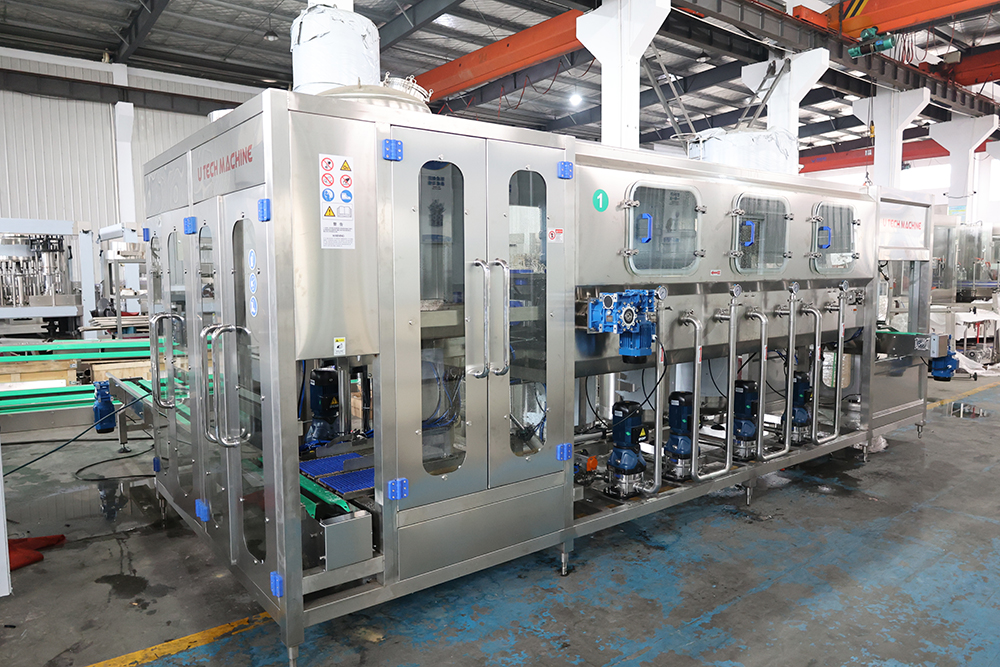

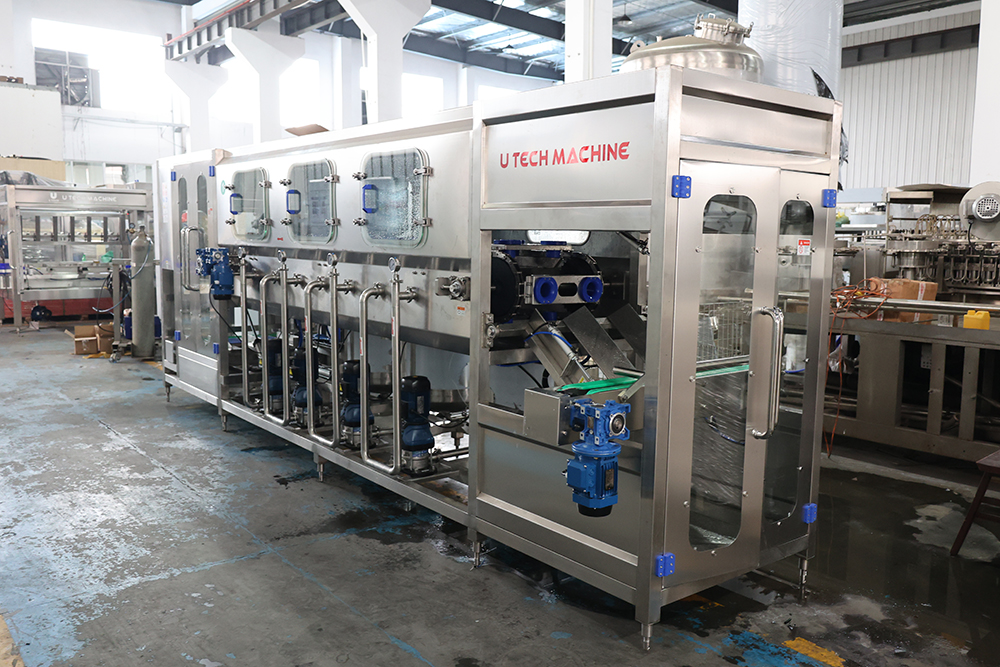

3gallon 5gallon 300BPH Automatic 20liter Drinking Mineral Water Bottling Plant

Availability:
Quantity:
Inquire Add to Basket

Product Introduction
The whole filling speed ranges from 100BPH to 2000BPH.
Filling the pure water or the mineral water in 3 or 5 gallons.
The series of machine integrate rinsing,contain rinser-filler-capper monoblock,automatic loading machine,bottle outside
washer,bottle inside washer,decapper,heating shrink tunnel,conveyor system,complete line control system.
Technical parameter
5 gallon water filling machine
Model
TXG-150
TXG-300
TXG-450
TXG-600
TXG-900
TXG-1200
Capacity(for 5 gallon)
150BPH
300BPH
450BPH
600BPH
900BPH
1200BPH
Working position number
5
7
9
11
13
15
Filling heads
1
2
3
4
8
10
Capping heads
1
1
1
1
1
1
suitable bottle
PET bottle    plastic bottle
Diameter of bottle
265-273mm
Height of bottle
150-360mm
Suitable cap
Plastic cap
Weight
500kg
2500kg
3000kg
3500kg
7000kg
8000kg
Main motor power
1.5kw
6kw
30kw
32kw
35kw
40kw
Datail images

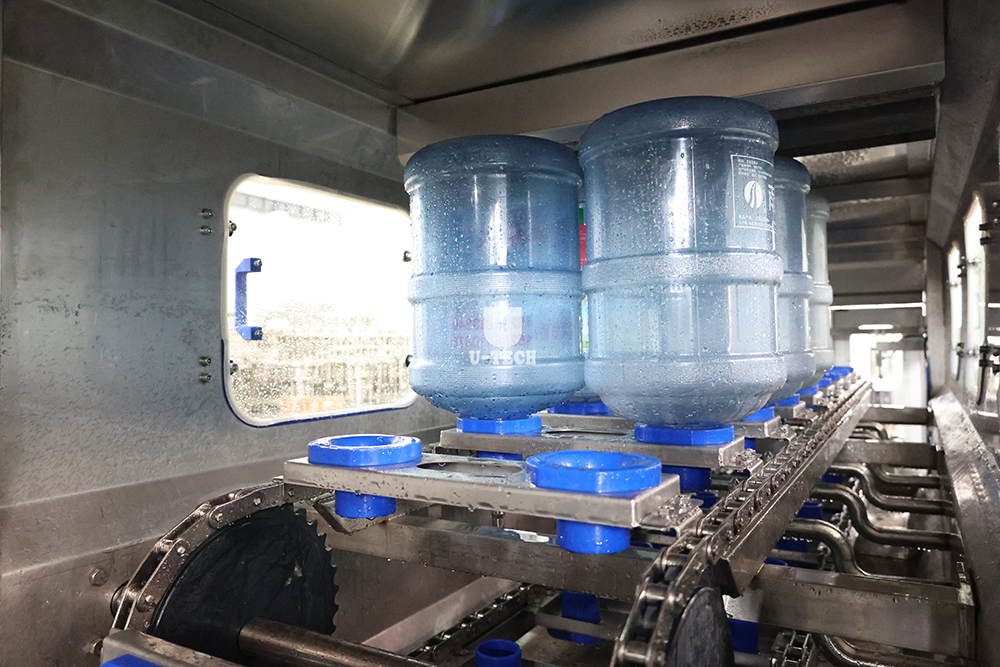

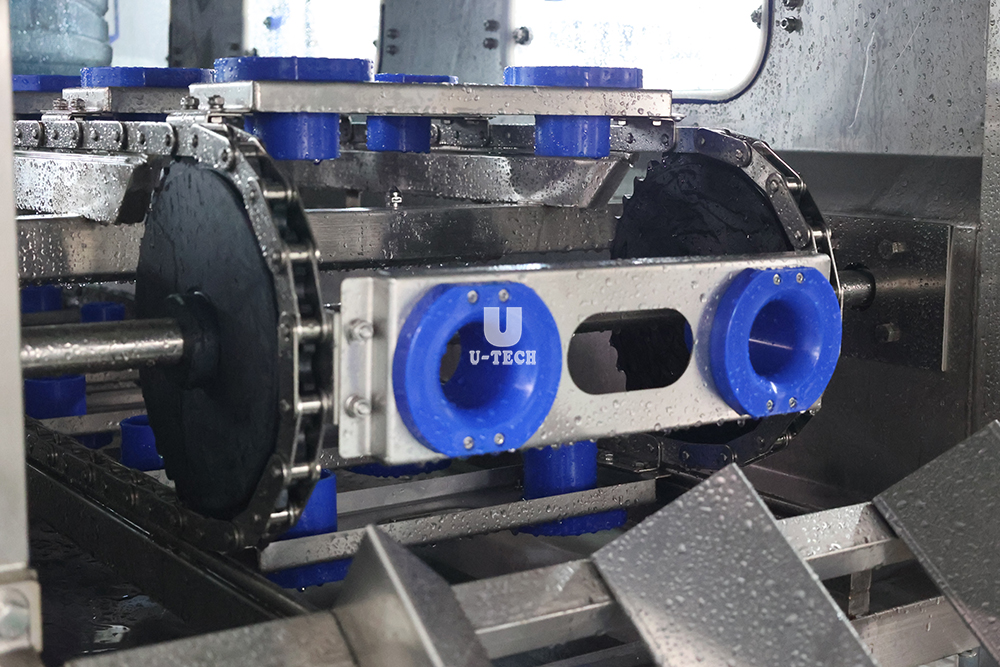

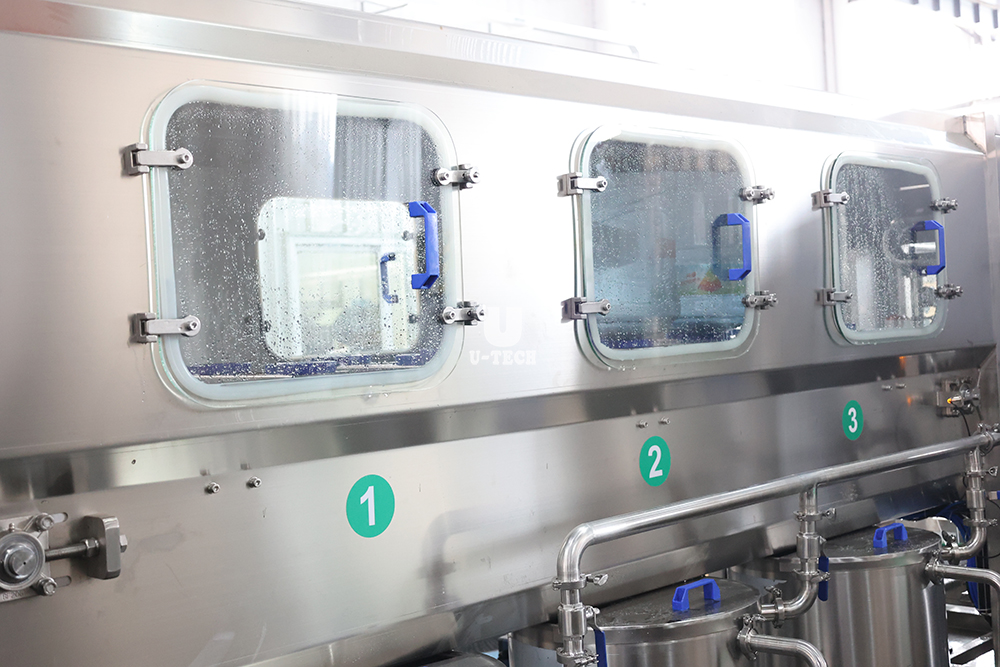

Inside Washing Part


1.It is designed for 5 washing treatment.
2.It can manage 5 liters to 5 Gallons bottles.
3.Automatic bottle unloads and out load.
4.Neck handling of the bottle by the grippers.
5.Lack of point with water stagnation.
6.Automatic disinfection of the rinsing area. 7.Change-over easy and with no downtimes.
8.Easy access for ordinary maintenance.

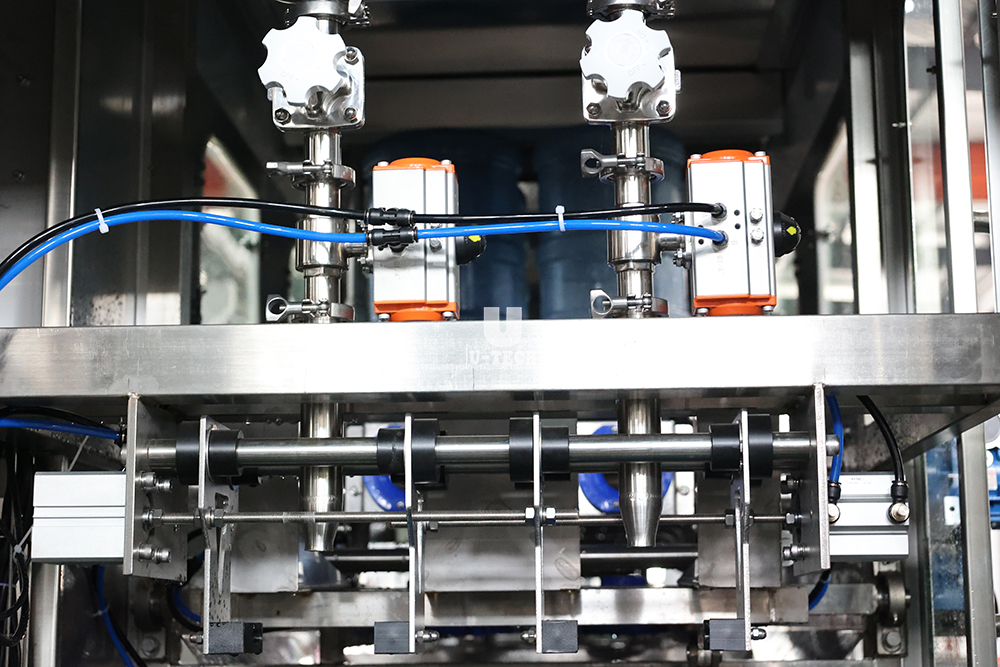

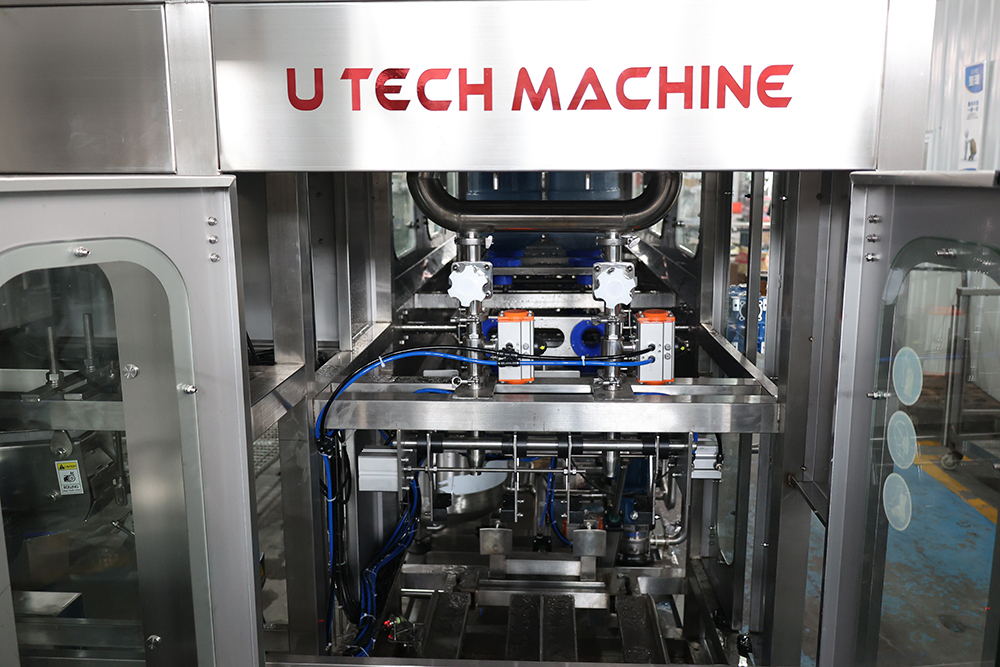

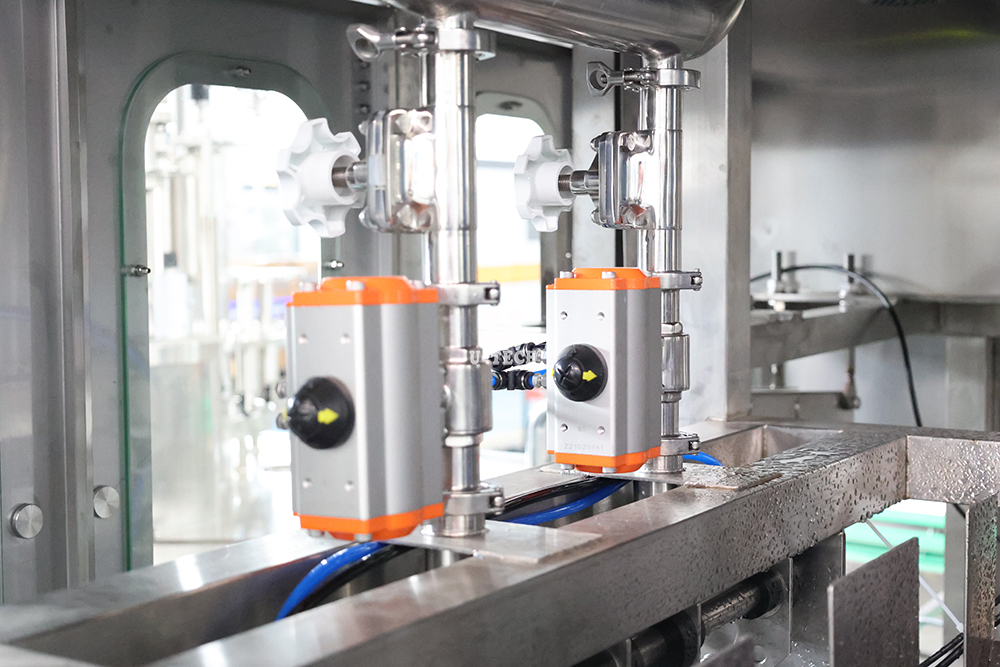

Filling Part

1. Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
2. Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
