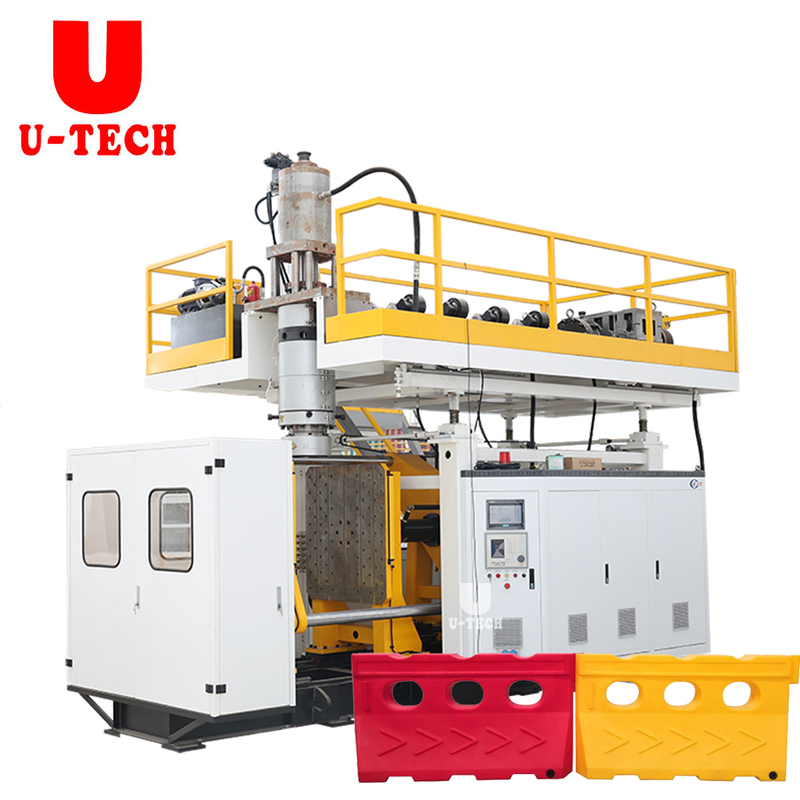

Automatic jerry can drum hdpe blue open top barrel board fuel tank extrusion blow molding machine

Availability:
Quantity:
Inquire Add to Basket

Product Introduction

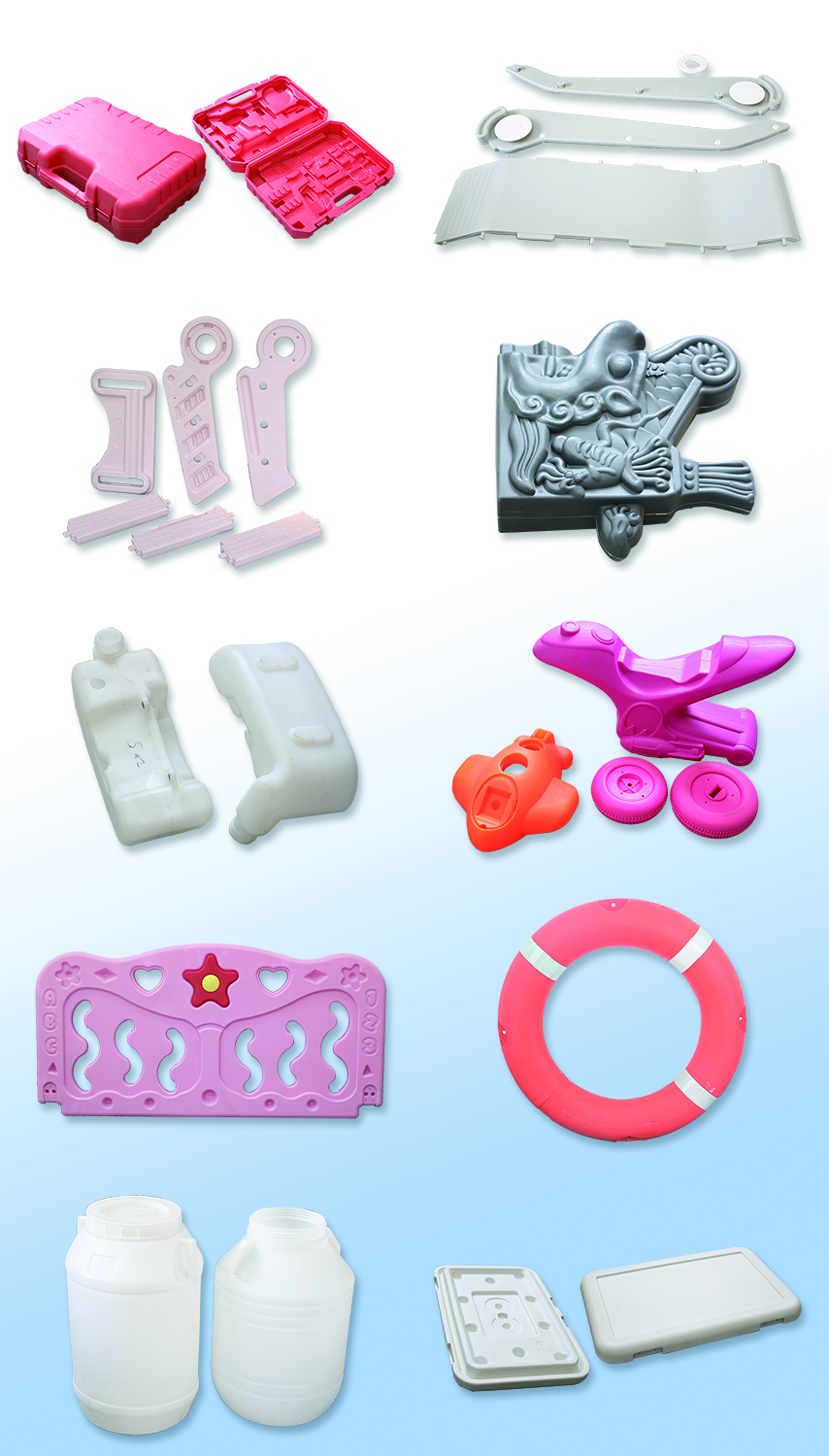

The BST series extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for
foods,toys,beverages, medicines, chemical products, pesticides, detergents, etc with material of HDPE,PE,PP,PVC from 5ml to 20L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and Other benefit.
Application
Machine details
Technical parameter
Model
BST65
Max. Product Volume
(L)
5L
Dry cycle
(pc/h)
700
Screw Diameter
(mm)
65
Screw L/D ratio
(L/D)
25
Screw drive power
(KW)
15
Screw heating capacity
(KW)
5.04~6.7
No. of heating zone
(ZONE)
3
Max. Output of HDPE
(Kg/hr)
60
Oil pump drive power
(KW)
7.5
Clamping force
(KN)
60
Platen distance
(mm)
148~508
Mold moving stroke
(mm)
380
Max. Size of Mold(W*H)
(mm)
370*390
Max. Die diameter
(mm)
145
Die heat capacity
(KW)
2.5
No. of heating zone
(ZONE)
3
Central distance of Double head
(mm)
160,180
Blowing pressure
(Mpa)
0.6
Air volume
(M3/MIN)
0.4
Cooling water pressure
(Mpa)
0.2~0.3
Water consumption
(L/MIN)
50
Size of machine ( L*W*H)
(m)
3.43*1.77*2.58
Weight of machine
(TON)
4
Auxiliary Equipment
