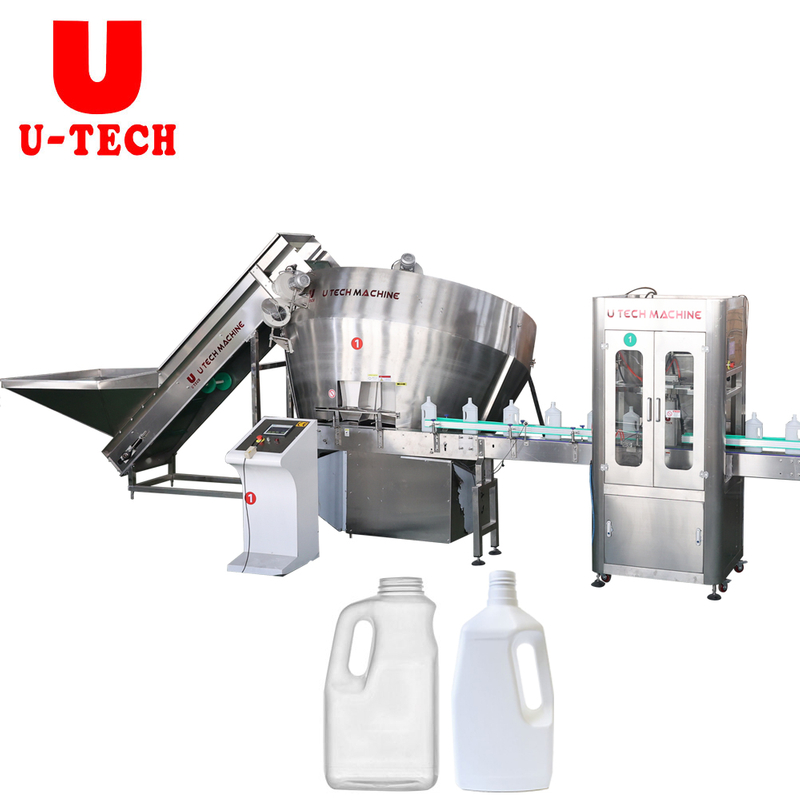

Automatic Jerrycan Plastic Pet Bottle Unscrambler Bottle Sorting Feeding Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

  Absorbing foreign advanced technology is the foundation of producing LP-16 type bottle unscramble machine. It is developed and researched according to the requirement of high speed direction and this machine is the leading equipment in domestic market.

Technical Parameters

Model	ULP-18
Work station	18
capacity	10000 BPH
Max capacity	12000 BPH
Air pressure	0.7MPa
air consumption	1.5M 3 / min
bottle	diameter 50 - 96 , bottle height 165 - 310
Main power	1.5KW
Hoist power	0.75KW
Overall dimension	Φ 2300×2340
weight	3400kg

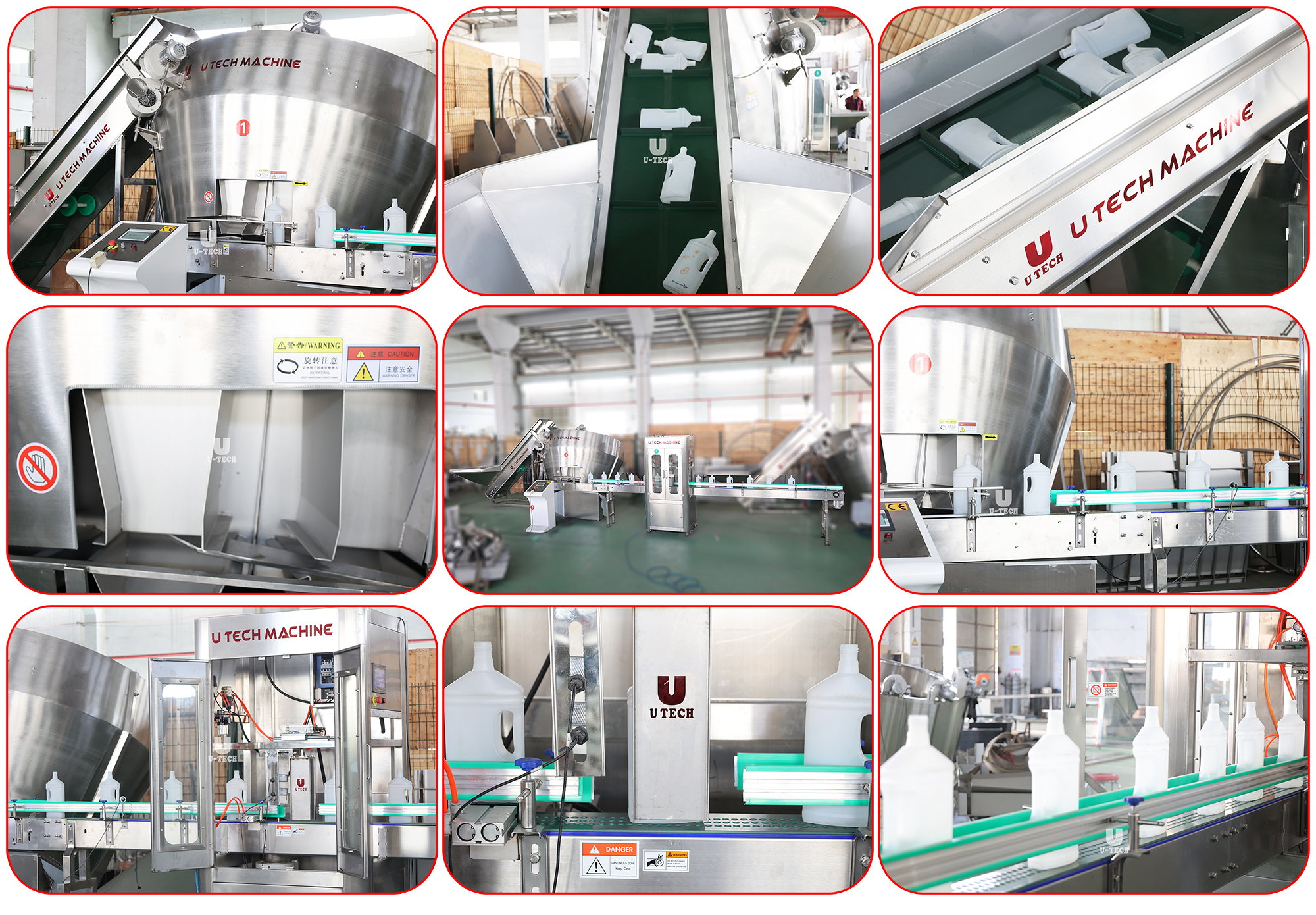

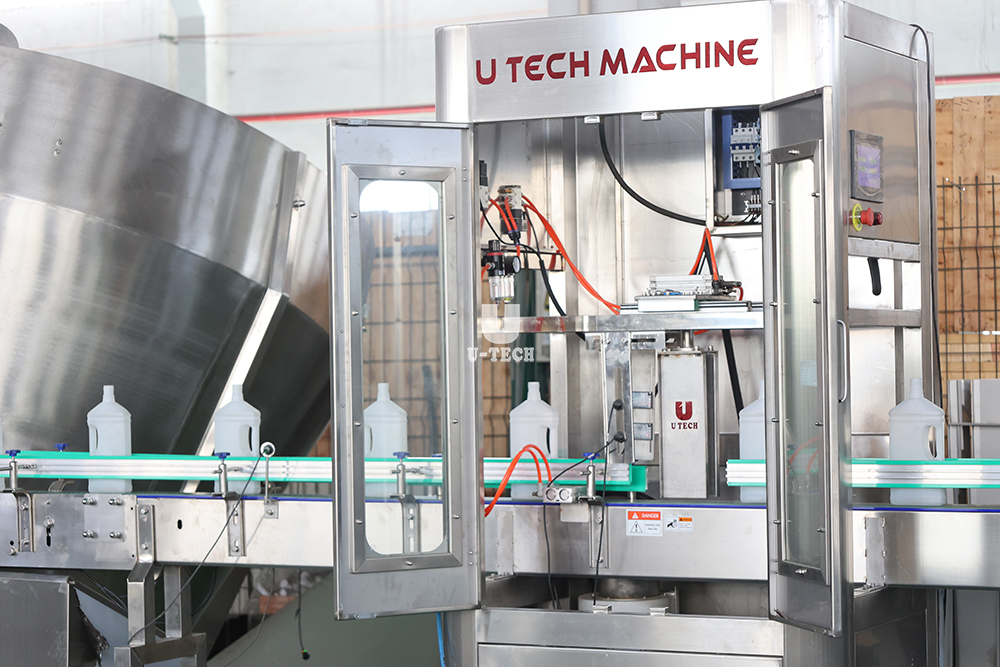

Machine details

Performance Characteristics ：

1.Frequency converter speed drive fine synchronization, digital display work output, easy to connect with various filling
machines.

2. The specially designed bottle drop slot can adapt to the bottle with little difference in size, without the need to replace the bottle drop slot, and improve the production efficiency.

3. lower part of the cylinder body is provided with a maintenance port, which is convenient for maintenance personnel to enter the bottom of the machine. The cabinet is equipped with maintenance lighting, convenient maintenance.

4. is equipped with perfect safety protection measures, when the repair door is opened, the machine can not be started, and the machine can be controlled by manual operator at this time.

5. A bottle-clamping detector is provided

6. the bottle-clamping machine, which can effectively protect the safety of the machine. and equipped with fault indicator light and touch screen to show the cause of the failure.

7. main motor speed regulation through the man-machine interface, can easily set the production speed, and can automatically start and stop according to the air duct or the condition of the bottle on the transport.

8. Full body of SUS304 stainless steel material, simple appearance, beautiful, novel structure,unique, can ensure the bottle clean and pollution-free.

Control System

S/N	Name	Brand	country
1	Main motor	ABB	Switzerland
2	Inverter	MITSUBISHI	Japan
3	PLC	OMRON	Japan
4	Touch screen	MITSUBISHI	Japan
5	Contactor	SCHNEIDER	France
6	Thermo- relay	SCHNEIDER	France
7	Air-break switch	SCHNEIDER	France
8	Proximity switch	TURCK	USA
9	Photoelectric switch	BANNER	USA
10	Air circuit system	SMC	Japan
11	Water pump	Southern	China

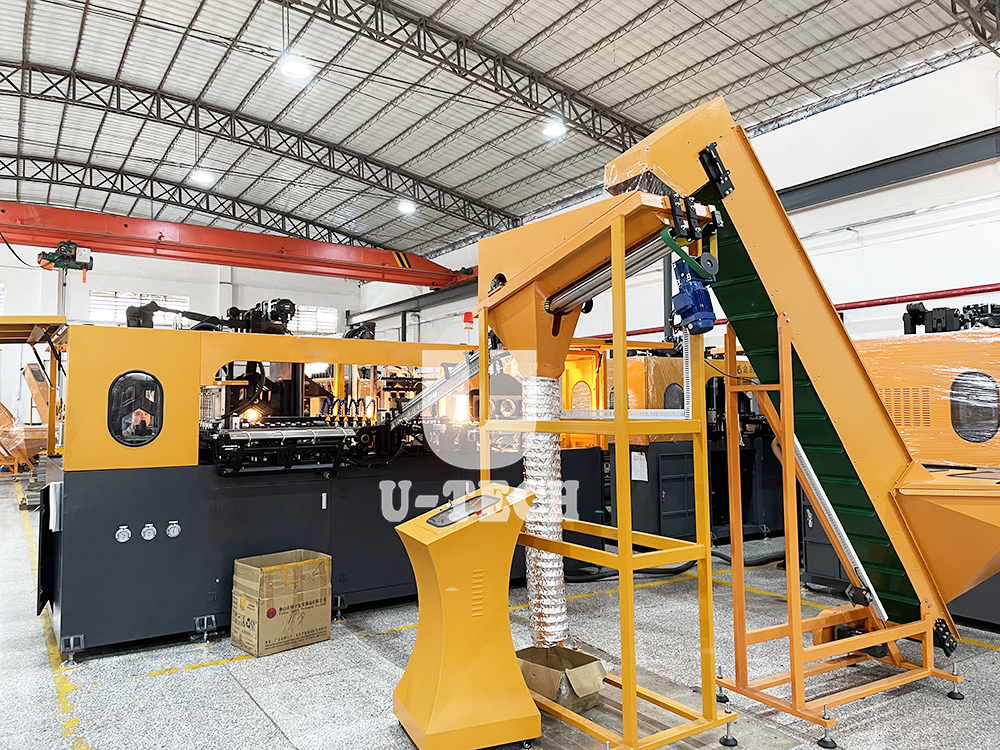

PET Bottle blowing machine

 Adopting high pressure clamping, automatic stretch blow molding machine makes self-adjustment in accordance with the different pressure needed during production, thus ensures the super clamping force. While the high pressure sealing system with automatic adjustment permits that mold sealing is under condition of 100% air tightness before blowing and avoid air energy loss owing to incomplete air tightness. With such effective control over air energy and power, it takes a big part to lower costs and improve efficiency.

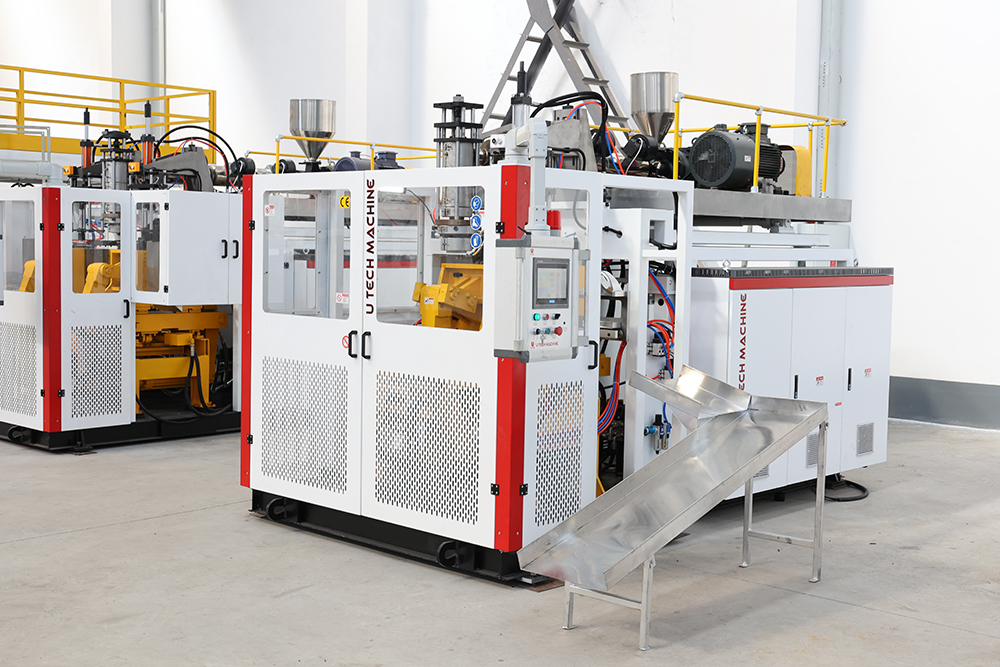

Extrusion blow moudling machine

 The BST series extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for
foods,toys,beverages, medicines, chemical products, pesticides, detergents, etc with material of HDPE,PE,PP,PVC from 5ml to 20L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and Other benefit.
