QGF-600
U TECH

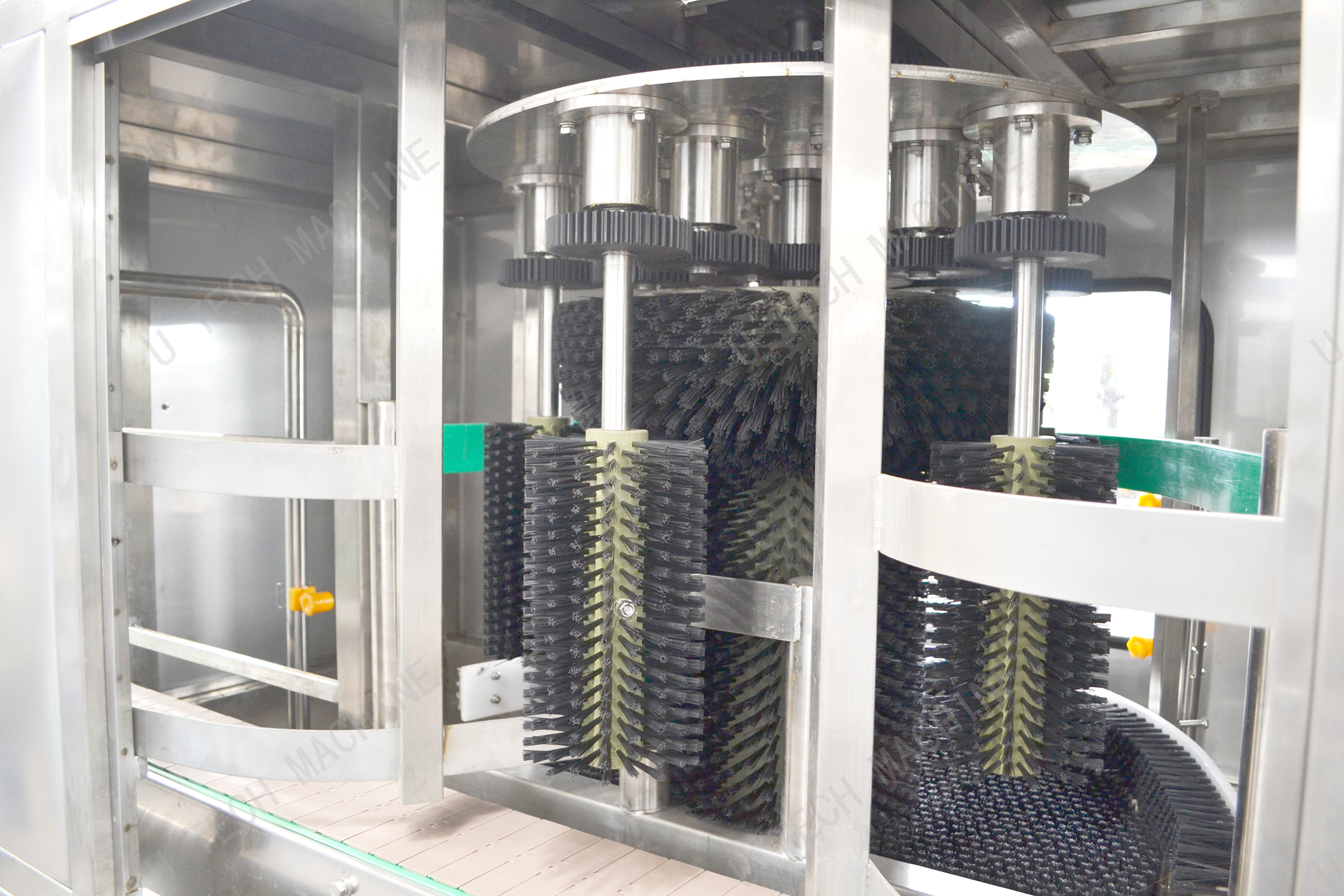

This QGF series barreled water fiiling line is mainly used to produce bottled water with volume from 3 gallon to 5 gallon.And different models can offer production capacity from 100 to 2000B/H.The whole production process operates as follows:Empty barrel are conveyed into decapping machine,which will remove bottle caps.Those caps can be recycled after being cleaned and disinfected.Then barrel are conveyed into the extemal bursh washing machine to take all-round ringsing with hot alkali and pure water.After ringsed,barrel will be sent to ringsing filling capping machine,where bottles are ringsed inside with hot alkali,disinfectant liquid and pure water.and then barrel is filled with pure water provided by water treatment system.Then after capped,those barreled water is sent to shrink packing machine in which shrink packaging of caps is done.
1.The 5 Gallon Filling Machineis composed of barrel washer, barrel filling machine and barrel sealer into one unit.
2. Especially for filling drinking water of 3 and 5 gallons. It is an idea filling line to produce mineral water, distilled water and purified water.
3. The whole line is made of superior stainless steel, anticorrosive and easy to clean.
4. Only two operators are needed for a line, which is wholly automatic barreled
5. Full-auto or semi-auto barrel de-capper, full-auto leakage inspection, full-auto barrel outside brusher, full-auto barrel loading machine, steam shrinking film machine and coding system can be choose depends on what customer's need.
Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of filling machine and packing with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in beverage and other packing equipment.
Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), barreled filling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle blowing machines, and injection molding machines, extrusion blow molding machines (PP/PE/PVC/PETG/PC...) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts.
This QGF series barreled water fiiling line is mainly used to produce bottled water with volume from 3 gallon to 5 gallon.And different models can offer production capacity from 100 to 2000B/H.The whole production process operates as follows:Empty barrel are conveyed into decapping machine,which will remove bottle caps.Those caps can be recycled after being cleaned and disinfected.Then barrel are conveyed into the extemal bursh washing machine to take all-round ringsing with hot alkali and pure water.After ringsed,barrel will be sent to ringsing filling capping machine,where bottles are ringsed inside with hot alkali,disinfectant liquid and pure water.and then barrel is filled with pure water provided by water treatment system.Then after capped,those barreled water is sent to shrink packing machine in which shrink packaging of caps is done.
1.The 5 Gallon Filling Machineis composed of barrel washer, barrel filling machine and barrel sealer into one unit.
2. Especially for filling drinking water of 3 and 5 gallons. It is an idea filling line to produce mineral water, distilled water and purified water.
3. The whole line is made of superior stainless steel, anticorrosive and easy to clean.
4. Only two operators are needed for a line, which is wholly automatic barreled
5. Full-auto or semi-auto barrel de-capper, full-auto leakage inspection, full-auto barrel outside brusher, full-auto barrel loading machine, steam shrinking film machine and coding system can be choose depends on what customer's need.
Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of filling machine and packing with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in beverage and other packing equipment.
Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), barreled filling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle blowing machines, and injection molding machines, extrusion blow molding machines (PP/PE/PVC/PETG/PC...) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts.
Model | QGF-100 | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-1500 | QGF-2000 |
Capacity (5 gallon) | 100BPH | 150BPH | 300BPH |
450BPH | 600BPH | 900BPH | 1200BPH |
1500BPH | 2000BPH |
Working position number | 3 | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 21 |
Filling heads | 1 | 1 | 2 | 3 | 4 | 8 | 10 | 12 | 15 |
Capping heads | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Suitable bottle | PET bottle,plastic bottle | ||||||||
Diameter of bottle | φ265-273mm | ||||||||
Height of bottle | 150-360mm | ||||||||
Suitable cap | Plastic cap | ||||||||
Weight | 450kg | 500kg | 2500kg | 3000kg | 3500kg | 7000kg | 8000kg | 8500kg | 9500kg |
Main motor power | 1.41kw | 1.5kw | 6kw | 30kw | 32kw | 35kw | 40kw | 45kw | 52kw |
