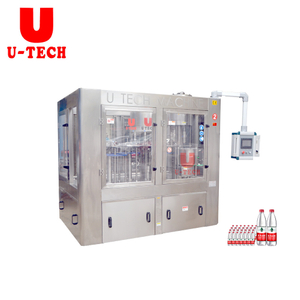

12000BPH Small Bottle Natural Spring Water Filling Machine Plant Price

Bottle water filling machine is full-automatic multiple-function washing, filling, capping unit. It is used in washing, filling, capping all kinds of non-gas drink, such as vinegar, wine, mineral water, pure water.
It adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling, capping, which makes changing different size bottles very easy. Most of elements of the electric system employ famous brand products. The machine parts contact with the liquid are made of high quality stainless steel. They obtain the advantages of good abrasive resistance, high stability, low failure rate, etc. The quality of the equipment can reach the international advanced level and gained good reputation among our clients.
  • CGF24-24-6

  • U TECH

Production Description

The machine combines washing, filling and capping three function in a body,used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.  the whole process is automatic, Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient. The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable. the photoelectric sensor detect all part running state, with high degree of automation ,easy operation.

Working principle

The air conveying tunnel is installed in the ground by support, the fan is installed above the conveying tunnel. In the air inlet, has air filter, it can protect the dust be blown in to the bottle. And the bottle is transported into the three-in-one unit by air conveyor.


1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottl eneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

5. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

6. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

7. Super-low star wheel structure can highly improve the strength of the whole machine.

8. Central greasing oil system can grease all bearings easily.

9.Screw capper adopts French advanced technologies which can screw cap promptly when clamping bottle.

10. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, OMRON,ABB.

11. Easy to operate, save the cost for workers.






Electric protection switch



Circuit breaker






Touch screen






Photoelectricity switch



Pneumatic element









Technical data

Model CGF24-24-6
Capacity 12000PBH
Washing heads 24
Filling heads 24
Capping heads 6
suitable bottle PET bottle,plastic bottle
Diameter of bottle 55-110mm
Height of bottle 150-310mm
Suitable cap Plastic screw cap
Weight 4500kg
Main motor power 3kw

Packing and Delivery

Packing and delivery.png

The machines will be packed with high quality plastic film ,then put into the wood box ,the special packaging box is according to the immunity standard in China,it suits for long-distance transport, damp proof, rustproof, land way and seaway.

Installation and maintenance

The machine we can offer you the 2 years warranty and 2 years free spare parts .complete set install & maintain instruction Book in English language, or we can sent our engineers to help you.



Q1:Are you a trading company or a manufactory?
A1:We are a manufactory, can give u best service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
