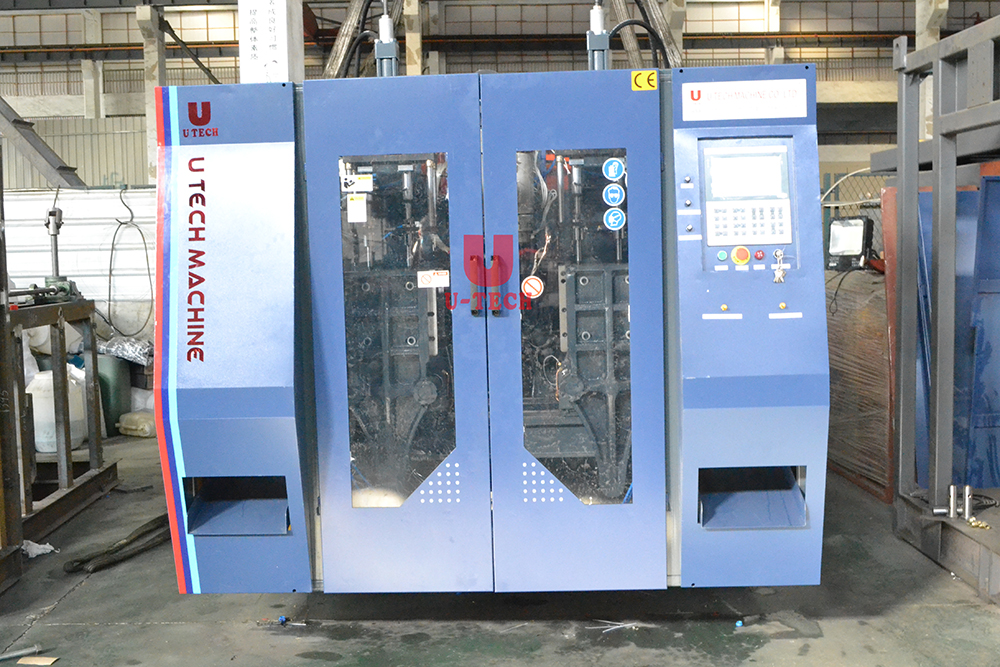

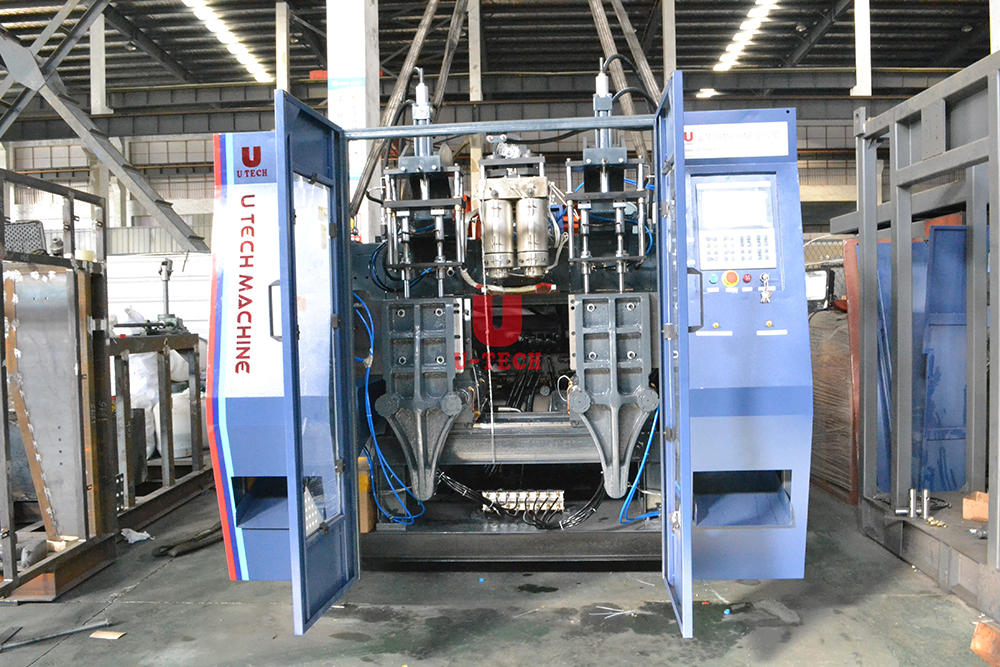

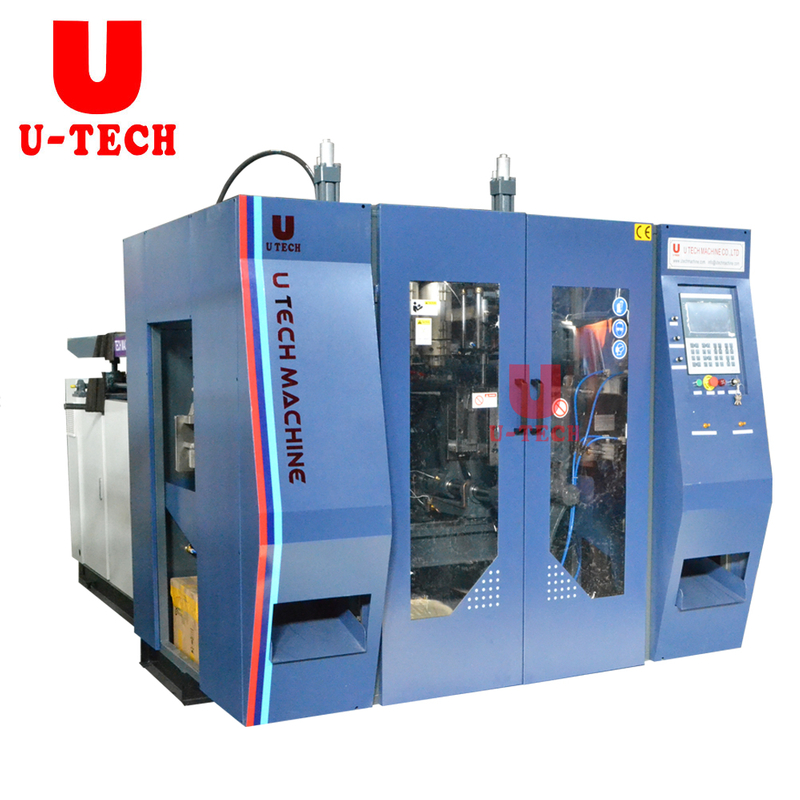

1-5L HDPE PP PE Extrusion Blow Molding Machine

Share to:

1-5L HDPE PP PE Extrusion Blow Molding Machine

Availability:

Quantity:



Inquire Add to Basket

Model:
BST-70
Brand:
U TECH

Product Description

Introduction

Extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines,chemical products, pesticides&detergents, water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.

Parameters

Category	Item	Unit	BST70	BST80	BST90
Extruder Unit	Screw diameter	mm	70	80	90
	Screw L/D ratio	L/D	25:1	25:1	25:1
	Plasticising capacity	kg/hr	80	100	120
	number of heating zone	kw	10	12.5	12.5
	extruder driving power	zone	4	5
	extruder heating power	Kw	15	22	30
Die head	number of heating zone	zone	3	3	4
	power of die heating	kw	4	6	8
	max die-pin diameter	mm	250	350	400
	accumulator capacity	kg	3	4	6
specifications	Max container capacity	L	20	30	50
	machine dimension	M	42.62.7	53.13.2	53.13.9
	total weight	tom	4.5	7	9

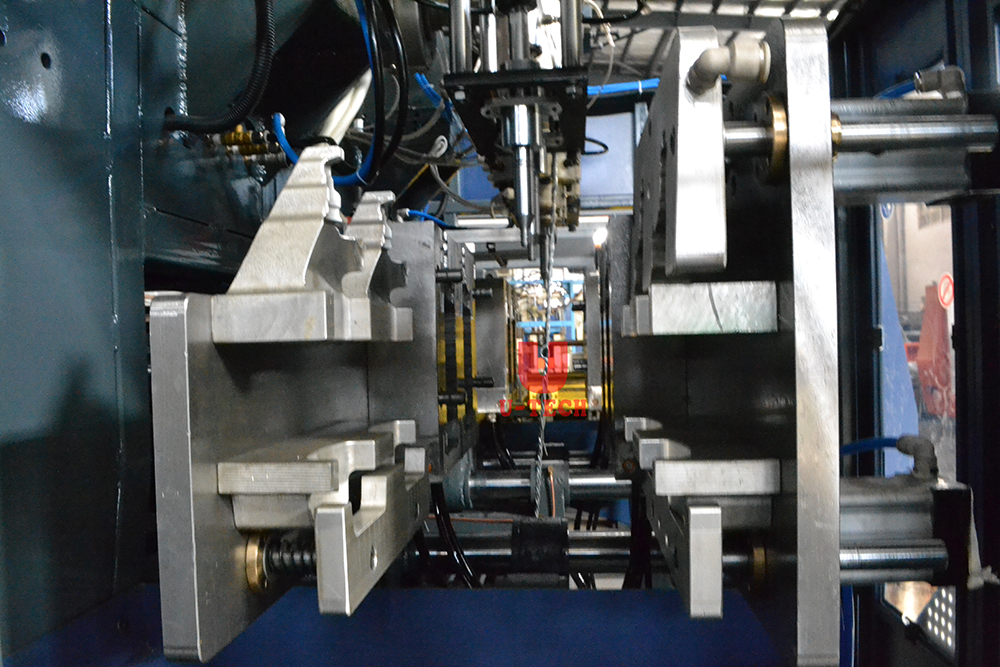

Clamping Unit	clamping force	kn	160	300	400
	platen opening stroke	mm	250-800	350-1050	350-1250
	max mould size	mm	520*600	700*1000	900*1200
	mould thickness	mm	260-400	360-500	360-600
Power	Oil pump motor	kw	7.5	11	11
	total power	kw	40	63	70
	fan power for screw	kw	0.72	0.72	0.72
	air pressure	mpa	0.7	0.7	0.7
	air consumption	m 3 /min	0.9	0.9	0.9
	average energy consumption	kw	20	28	35

Components list

COMPONENTS NAME	BRAND	ORIGIN
PLC	MITSUBISHI	Japan

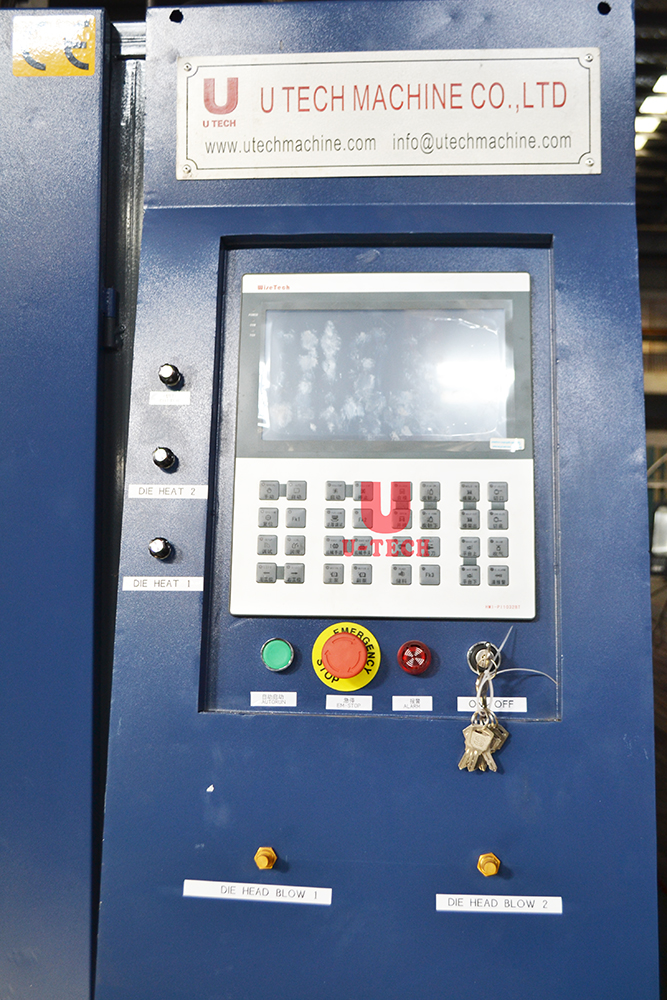

Operation screen	SIMENS	Germany
Parison control system	MOOG	Japan
Inverter	MITSUBISHI	Japan
Pneumatic parts	FESTO	Germany
Hydraulic pump and valve	YUKEN	Japan
Transducer	GEFRAN	Italy
Contactor	SCHNEIDER	France
Relay	SCHNEIDER	France
