Semi Automatic 5 Gallon Pet Bottle 18.9 L 20 L Stretch Blow Moulding Machine

Share to:

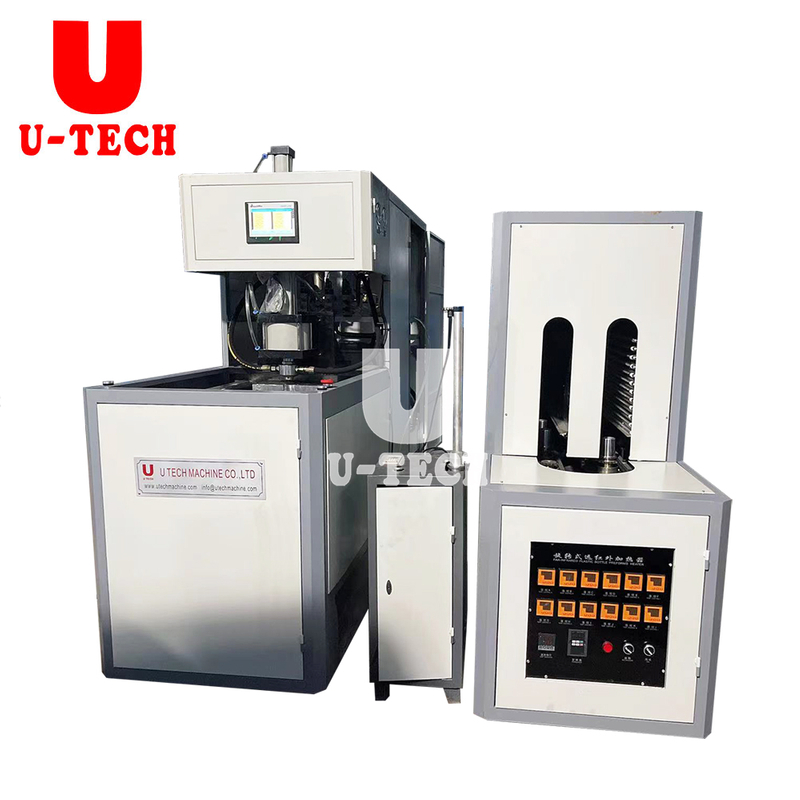

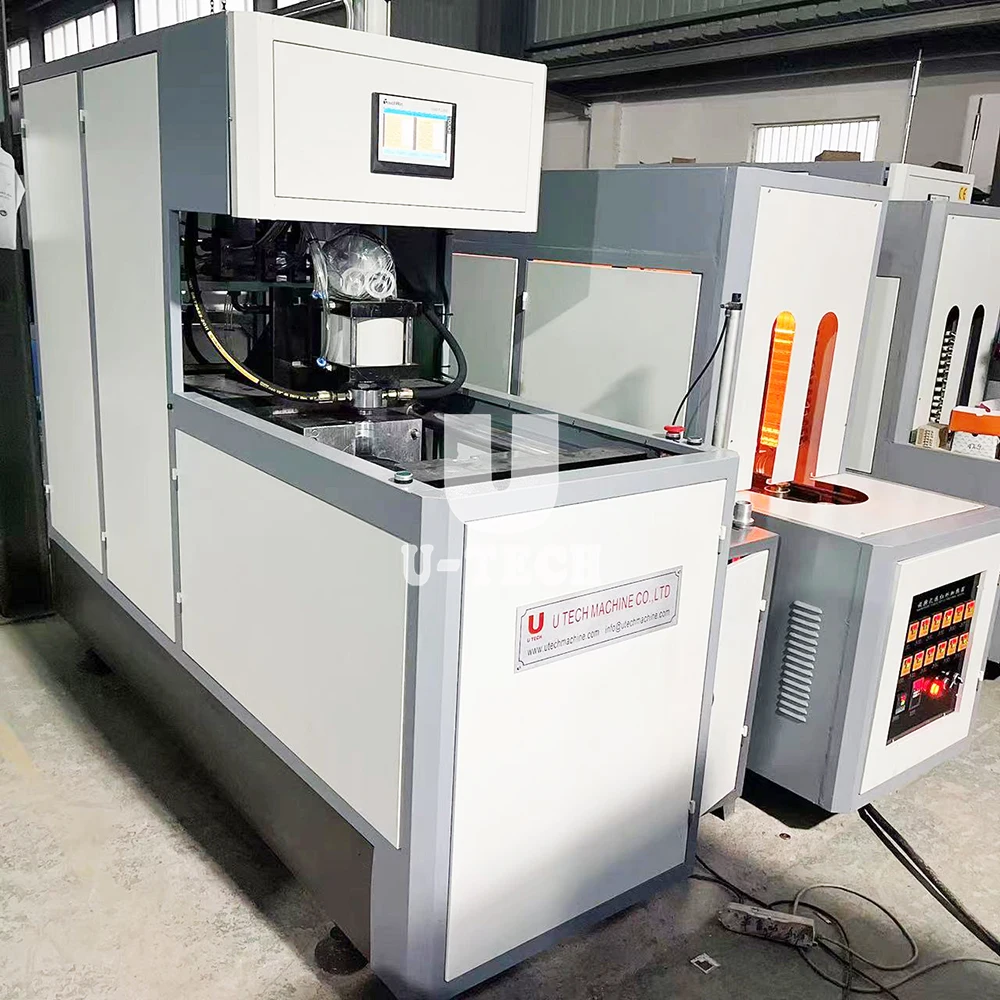

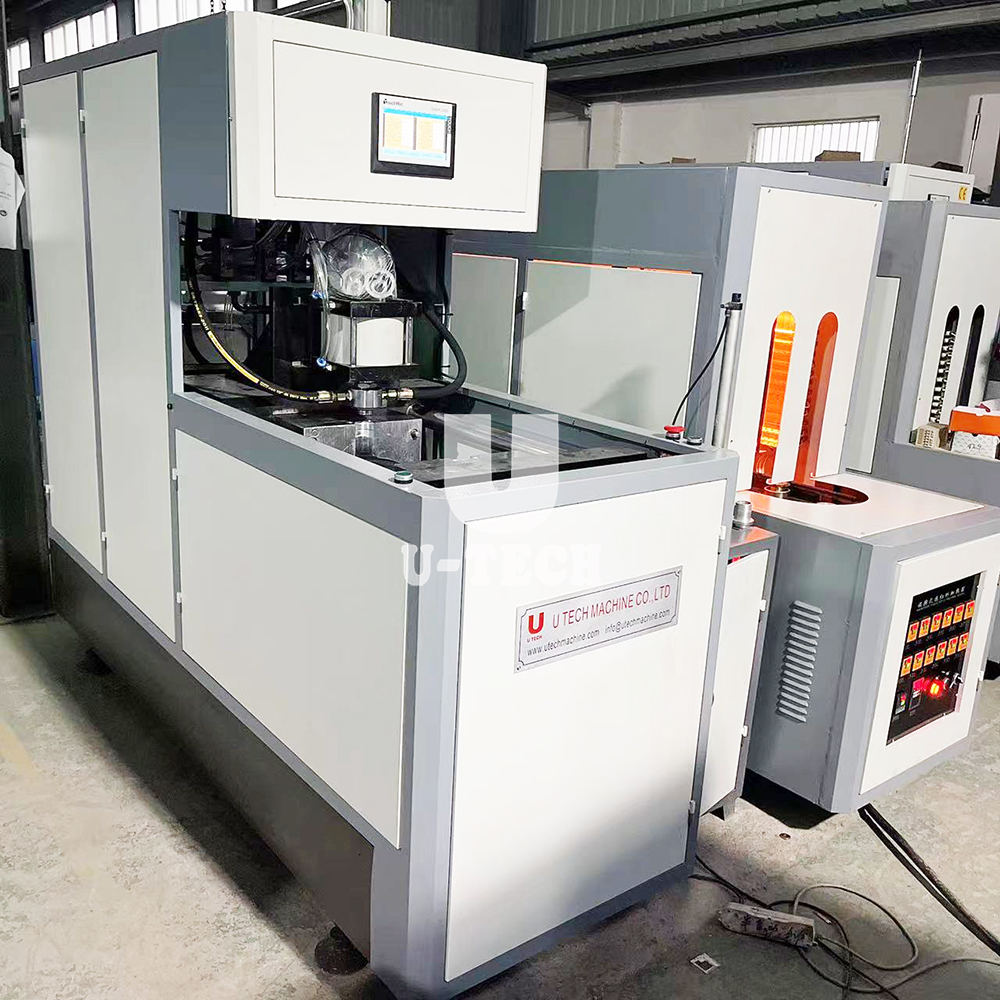

Semi Automatic 5 Gallon Pet Bottle 18.9 L 20 L Stretch Blow Moulding Machine

Availability:

Quantity:



Inquire Add to Basket

Brand:
U TECH

Product Description

Product Description

Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.
The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation. 3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.
PLC control system,the operaton is easy.

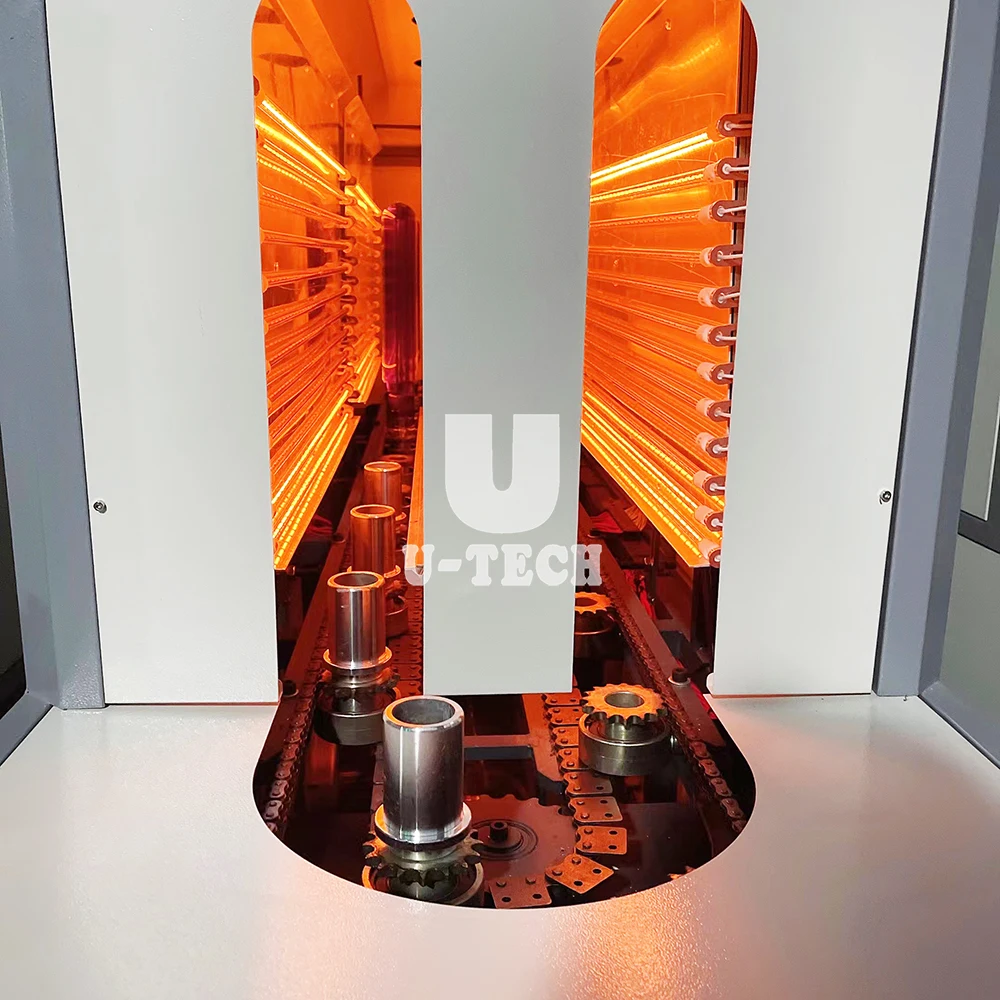

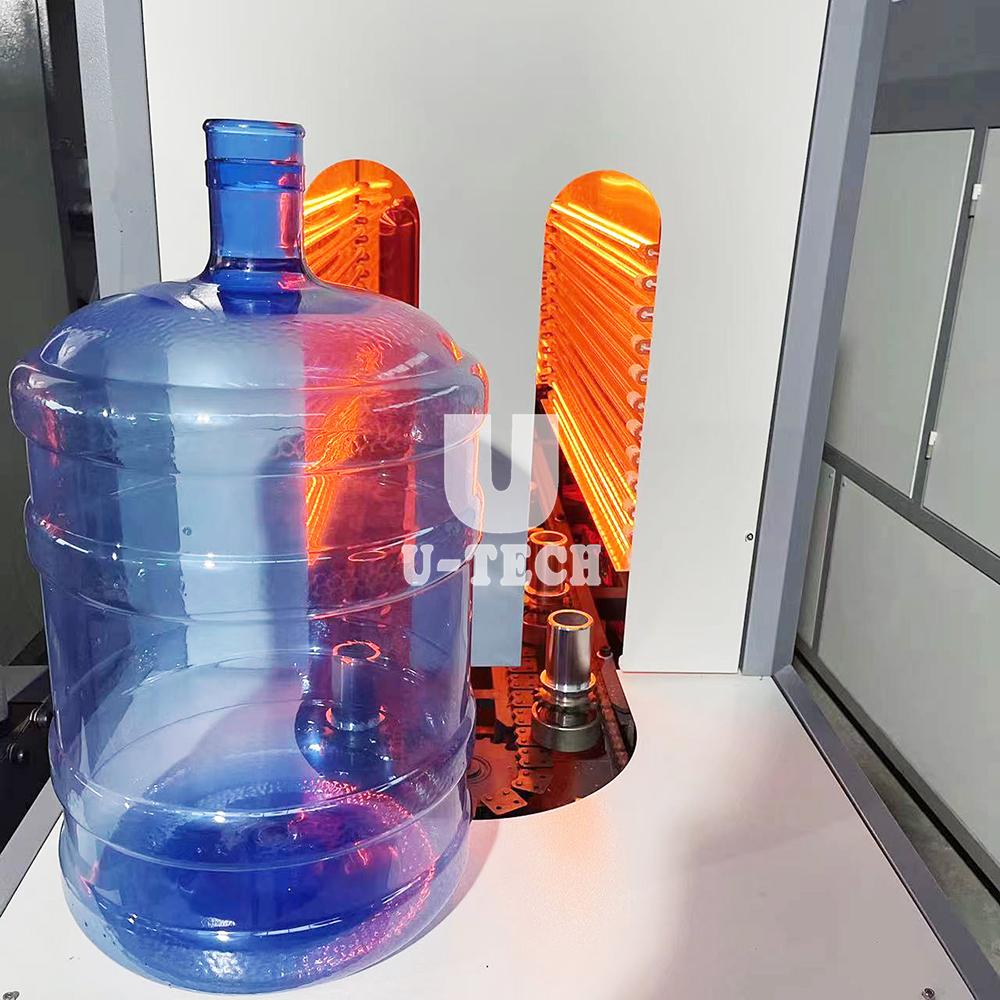

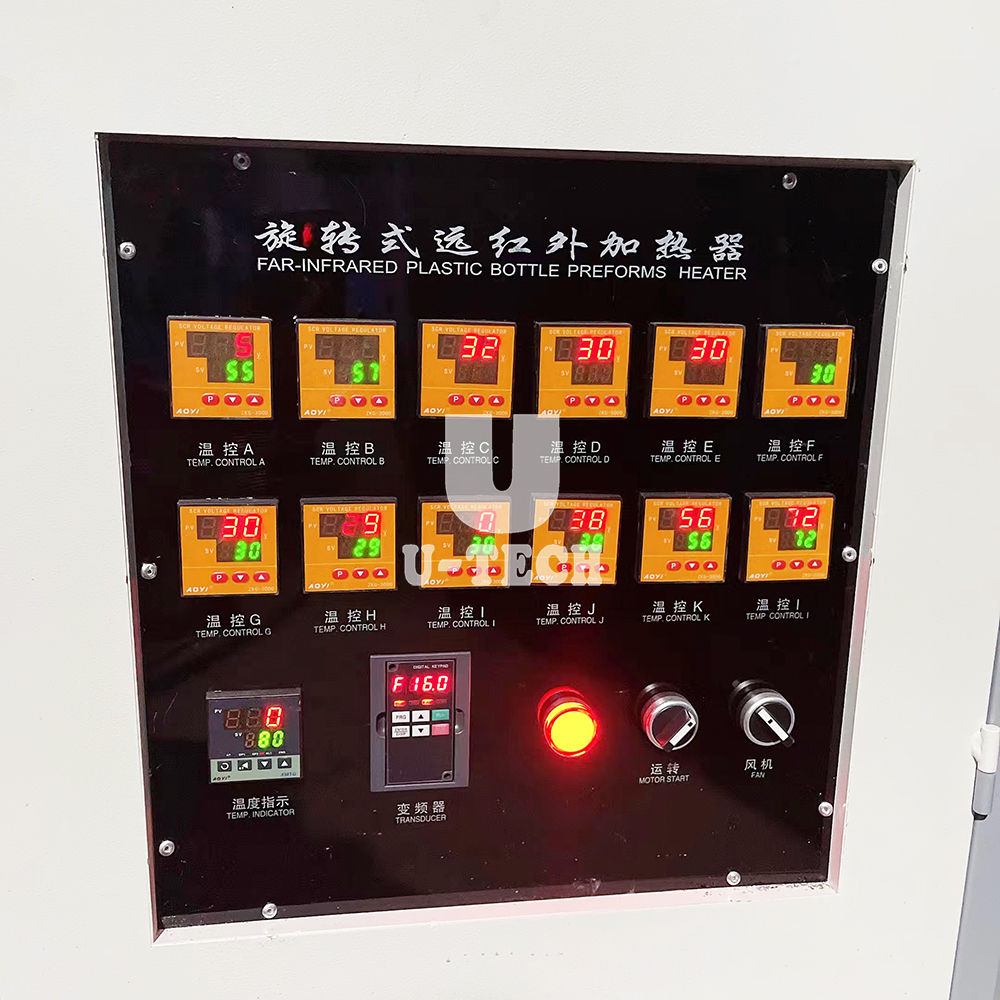

With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.

Technical parameter

Type	UT-120
Output	According to bottle type	80-100PCS/H
Product species	Bottle diameter	150mm-300mm
	bottle height	250mm-550mm
	Bottle mouth diameter	15mm-100mm
Mould	cavity	1cavities
	mould thickness	200~450mm
	Effective area of mold	600*600mm
Main power	Power	380v 4Phase /220v 2Phase 50/60HZ
	install power/actual power	26kw/11kw
	High pressure air compressor	1.2m3/min 3.0MPa
	Cold dry machine	2.0m3/min 3.0MPa 1set
Cooling water	Cooling water quantity	15L/min
Main machine size	Length width height/weight	21507301700mm/950kg
Oven size	Length width height /weight	24506801580mm/650kg

Details Images

Related Products

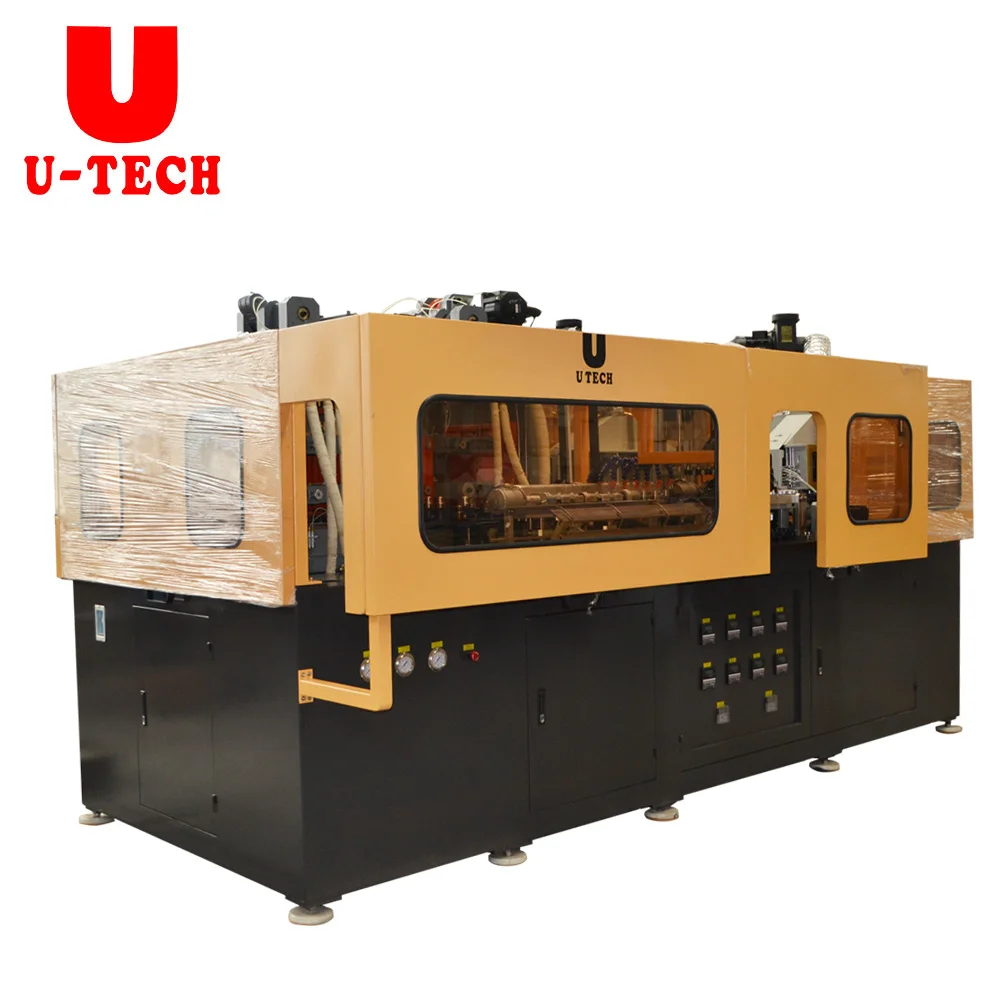

 Automatic PET bottle blowing machine

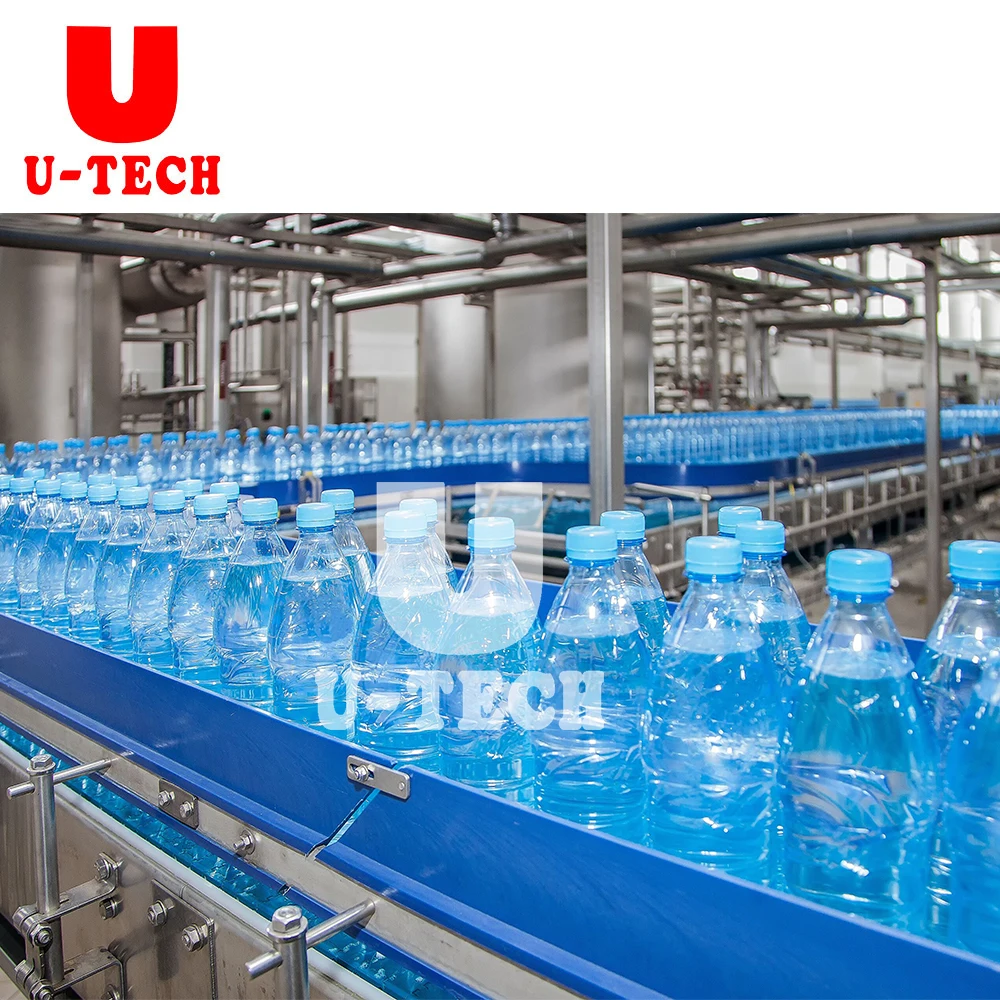

 Water filling machine

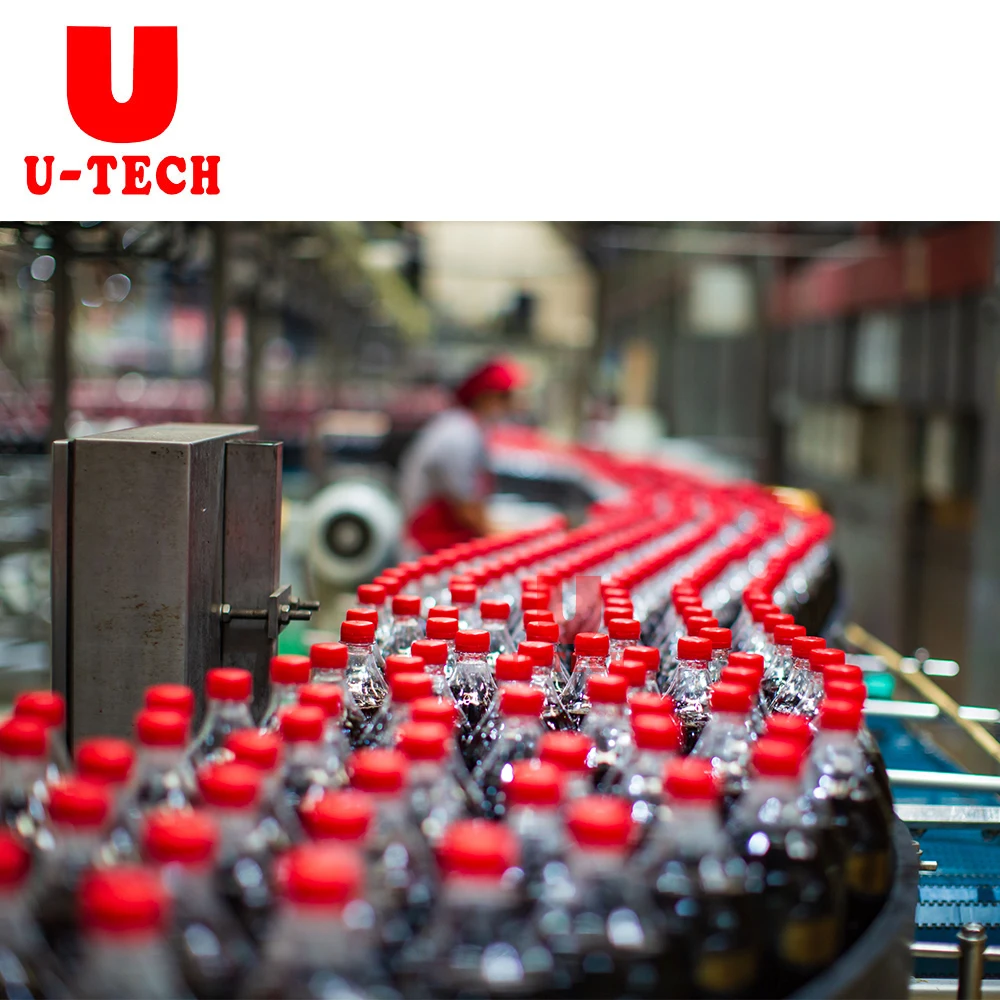

 Carbonated drink filling machine

 Juice filling machine

Our Services

 What service U Tech Machine Co.,Ltd can offer you ?
 * Well-trained & experienced staff are to answer all your inquiries in English and Chinese
 *  24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
 *  2 Years guarantee
 *  Your business relationship with us will be confidential to any third party.
 *  Good after-sle service offered, please get back to us if you got any questions

FAQ

Q1:Do you have any reference project?    >> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.


 Q2:What's your guarantee or the warranty of the quality if we buy your machines?
    >>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.


 Q3: Do you provide customized service?
    >> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so
on.


 Q4:When can I get my machine after I paid?
>> A4:We will deliver the machines on time as the date we agreed both side.
 Q5:How can I install my machine when it arrives?
 >> A5:We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.
