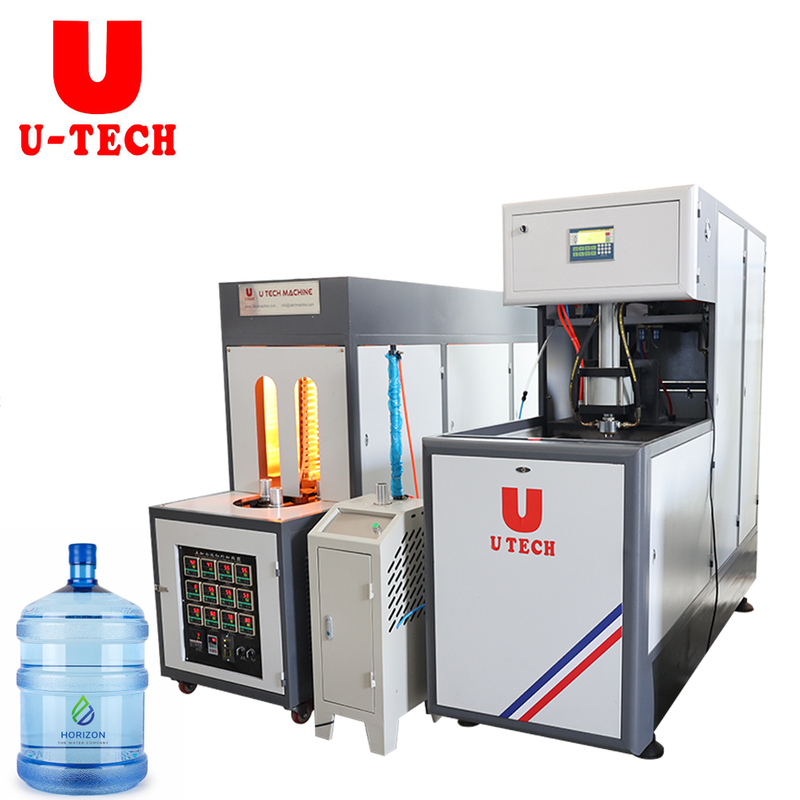

Semi Automatic Mineral Spring Natural Water 20L Barrel Pet Plastic 5 Gallon Bottle Making Machine

Availability:
Quantity:
Inquire Add to Basket

Product Description
1. Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.
2. The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation.
3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.
4. PLC control system,the operaton is easy.
5. With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.
Technical parameter
Type
UT-120
Output
According to bottle type
80-100PCS/H
Product species
Bottle diameter
150mm-300mm
bottle height
250mm-550mm
Bottle mouth diameter
15mm-100mm
Mould
cavity
1cavities
mould thickness
200~450mm
Effective area of mold
600*600mm
Main power
Power
380v 4Phase /220v 2Phase 50/60HZ
install power/actual power
26kw/11kw
High pressure air compressor
1.2m3/min 3.0MPa
Cold dry machine
2.0m3/min 3.0MPa 1set
Cooling water
Cooling water quantity
15L/min
Main machine size
Length width height/weight
2150*730*1700mm/950kg
Oven size
Length width height /weight
2450*680*1580mm/650kg

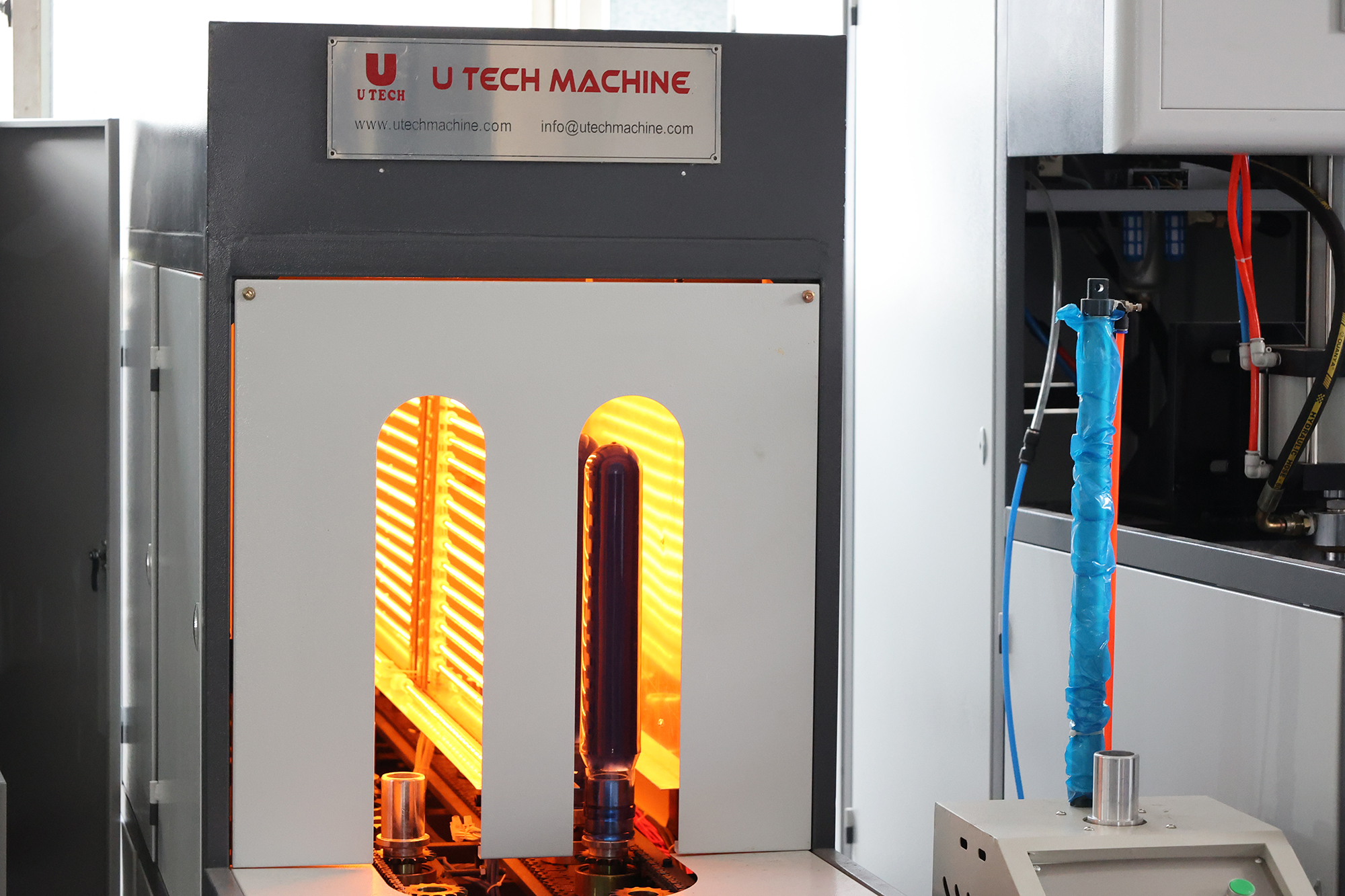

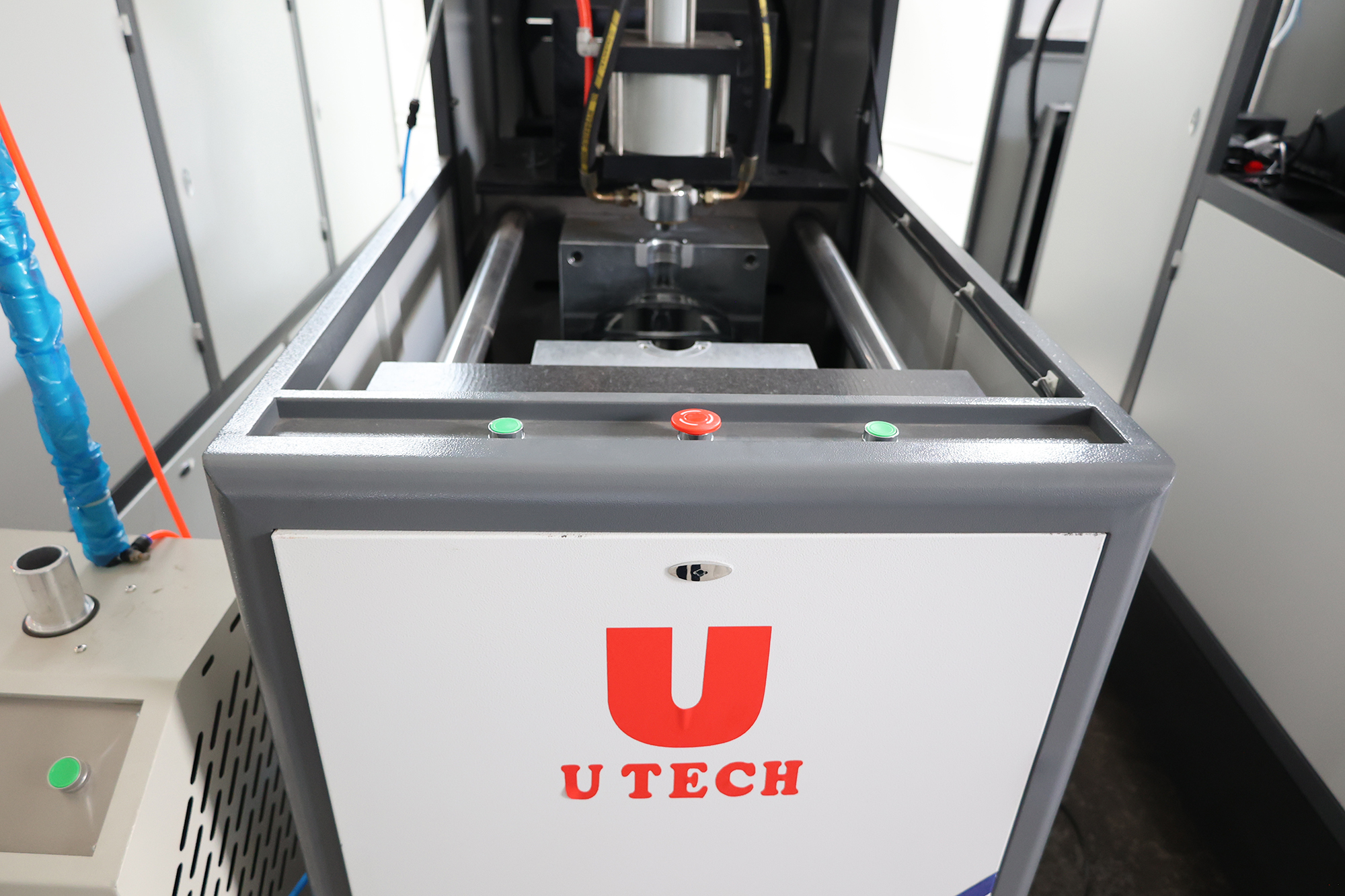

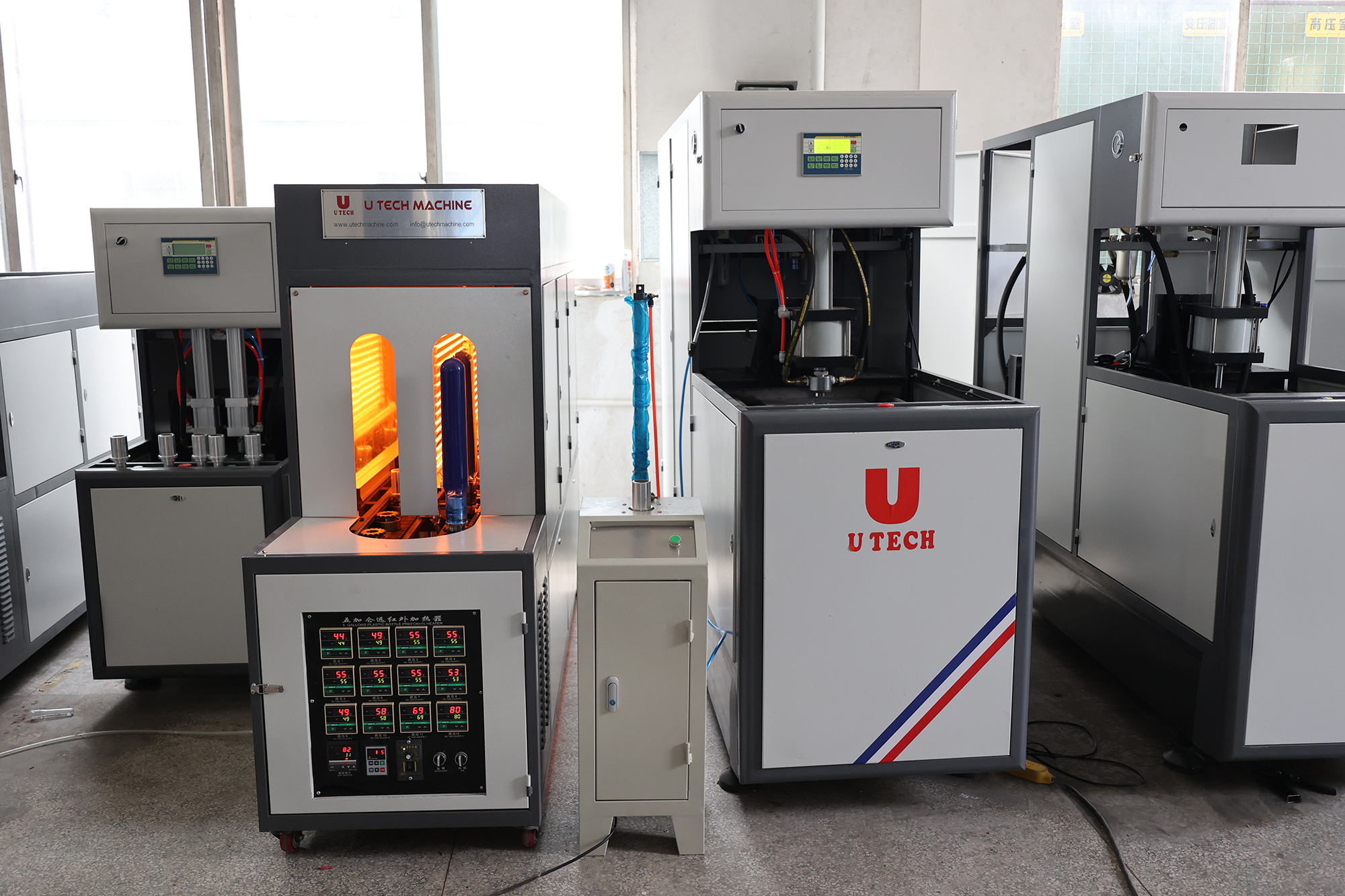

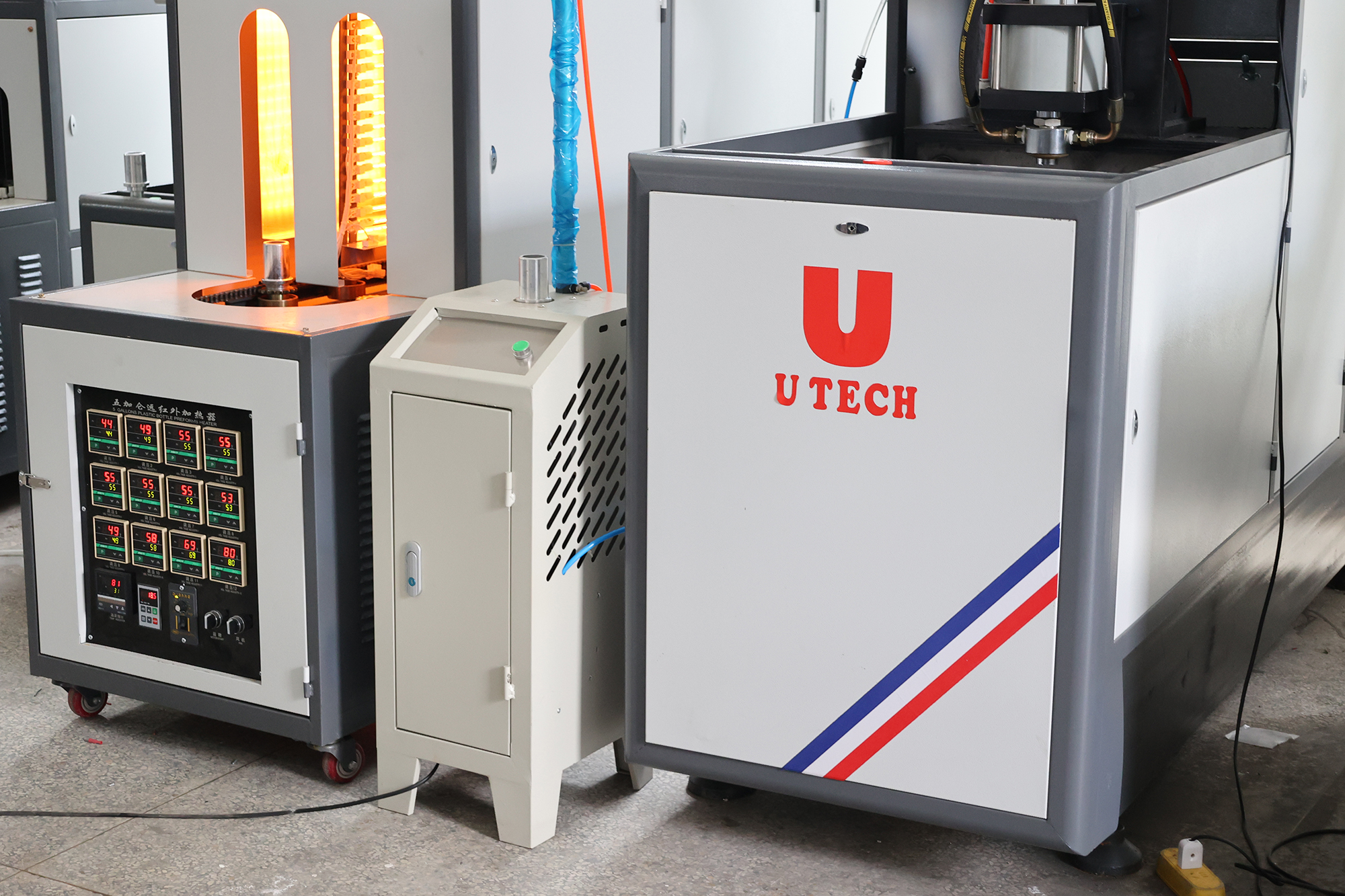

Details Images
