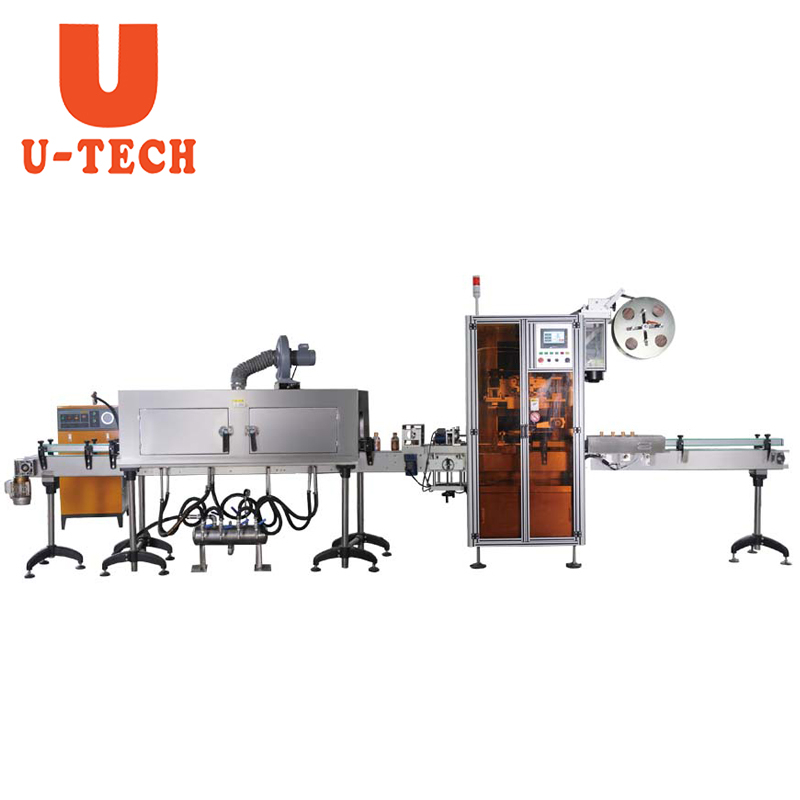

Features of UT-150B/250B Sleeve Labeling Machine
All-cover type stainless steel host machine: the whole machine is waterproof as well as rustproof.
Adjustable cutter head: unique cyclotron cut-off, double sided cutting edge with a long service life.
Single positioning centre guide pillar: more stable for label delivery.
Synchronous bottle divider: a more stable transmission for the bottle.
Bottom set label brush: more precision for casting label.
Label-controlling electric-eye shelf: unique combination of tail and electric-eye to improve the precision for cutting off the membrane materials.
Push-button control cabinet: a more humanized operation.
Independent feeding material shelf: the position of the material shelf is optional at will.
It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; also, it adopts the positioning module to ensure the casting label precise, rapid and stable.
Applicable Types of Bottles
Various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curve bottle and cup-shaped, etc.
Technical Data Sheet
|Size of Host Machine||L2100mm x W850mm x H2000mm||L2100mm x W850mm x H2000mm|
|Applicable Diameter of Bottle Body||Φ28mm-Φ125mm||Φ28mm-Φ125mm|
|Applicable Length of Lable||30mm-250mm||30mm-250mm|
|Applicable Thickness of Label||0.03mm-0.13mm||0.03mm-0.13mm|
|Applicable Internal Diameter of Paper Tube||(Free Adjustment)||(Free Adjustment)|
