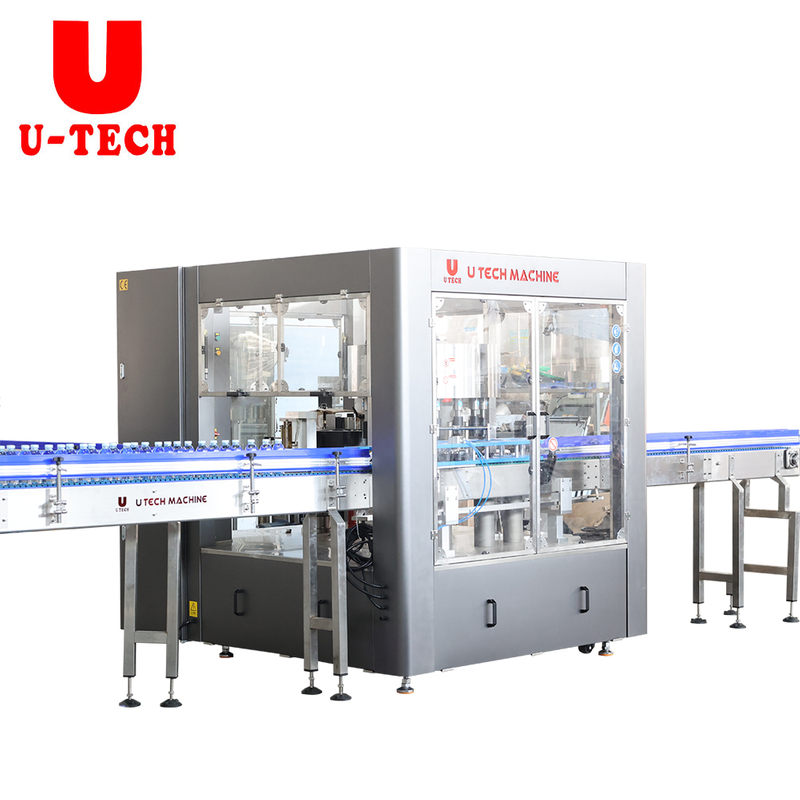

U TECH Automatic High Speed Rotary Type PET Glass Bottle BOPP OPP Hot Glue Labeling Machine

Availability:
Quantity:
Inquire Add to Basket

Introduction
This hot melt glue plastic bottle label applicator is widely suitable for different material of container and label. The label
cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical models in cost to make mass production and intergrated operating.

This equipment adopts the current labeling machine type, the most advanced, the most precise method for the volume label of OPP and other plastic material as base material, through the automatic correction instrument and various kinds of high precision photoelectric sensing elements to control the label location precision, adopt scientific institutions to complete automatic cutting and automatic send logo, and will be in the form of roller coating label solid, reliable and accurate paste on the packing materials.

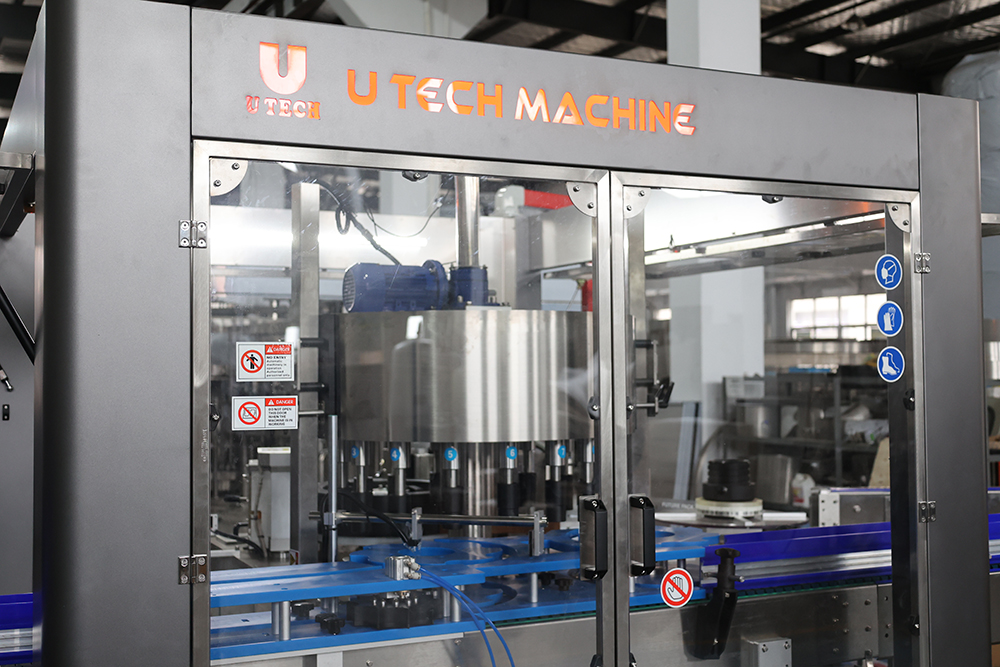

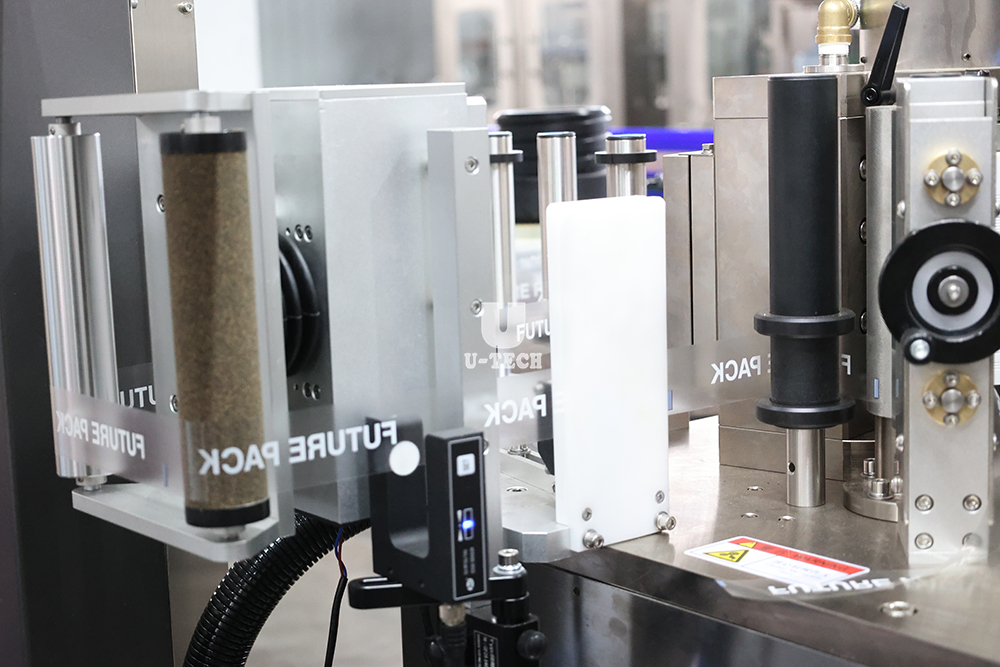

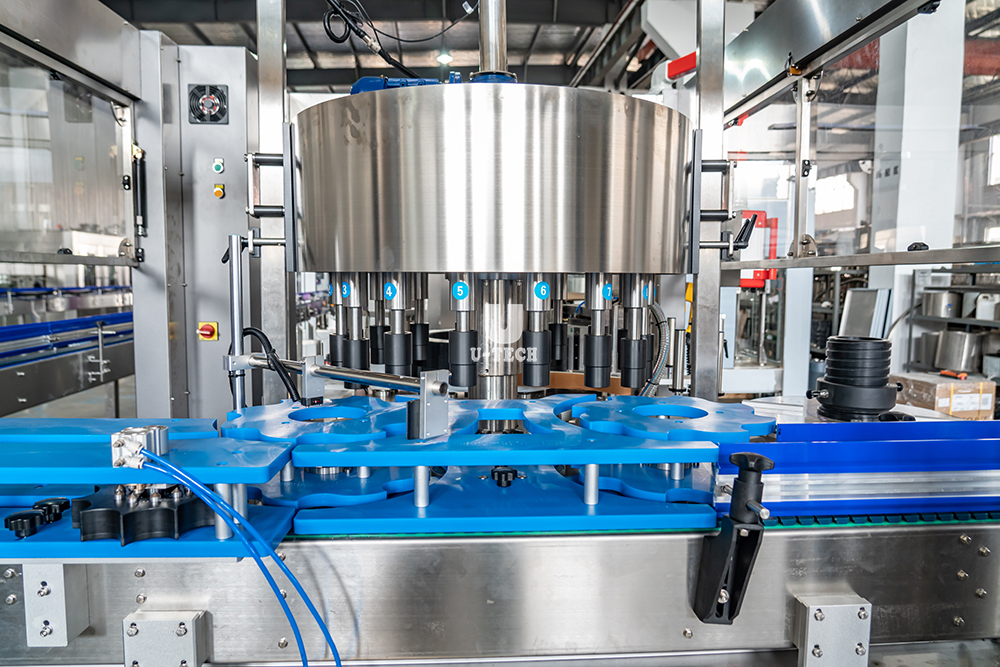

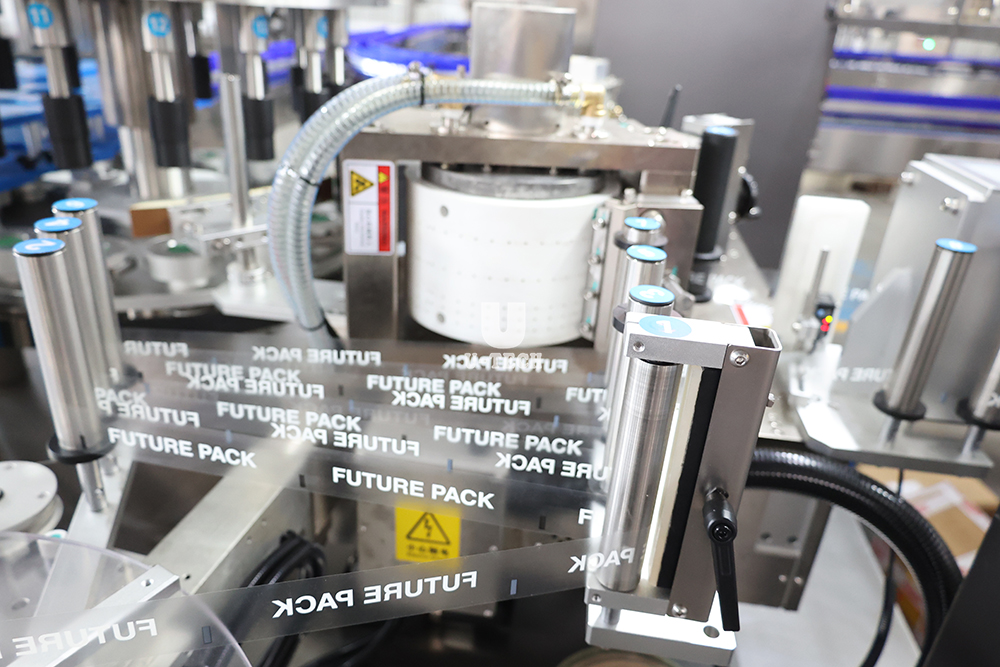

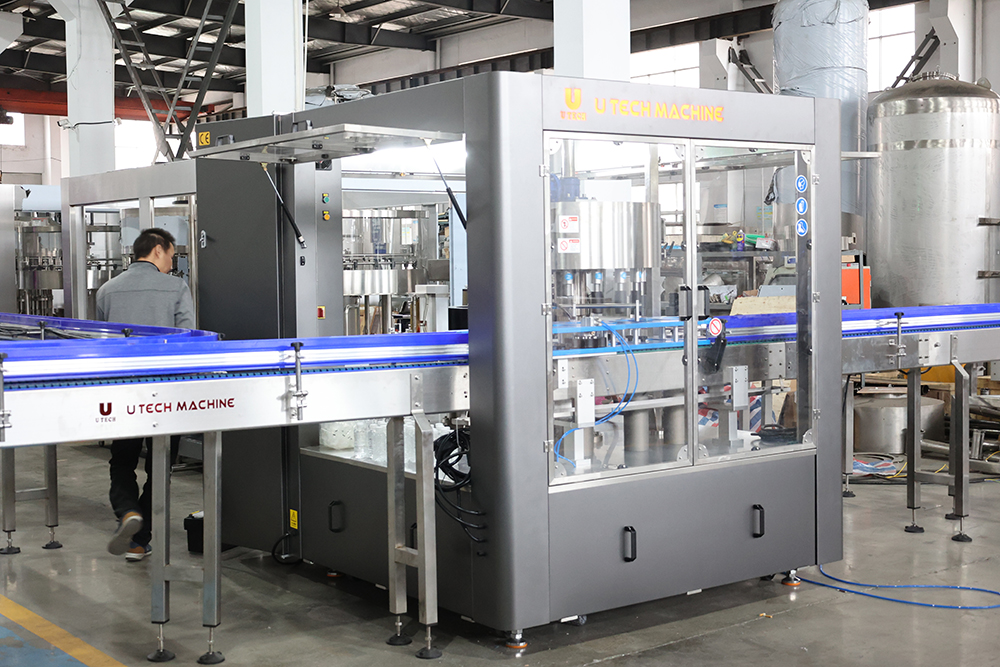

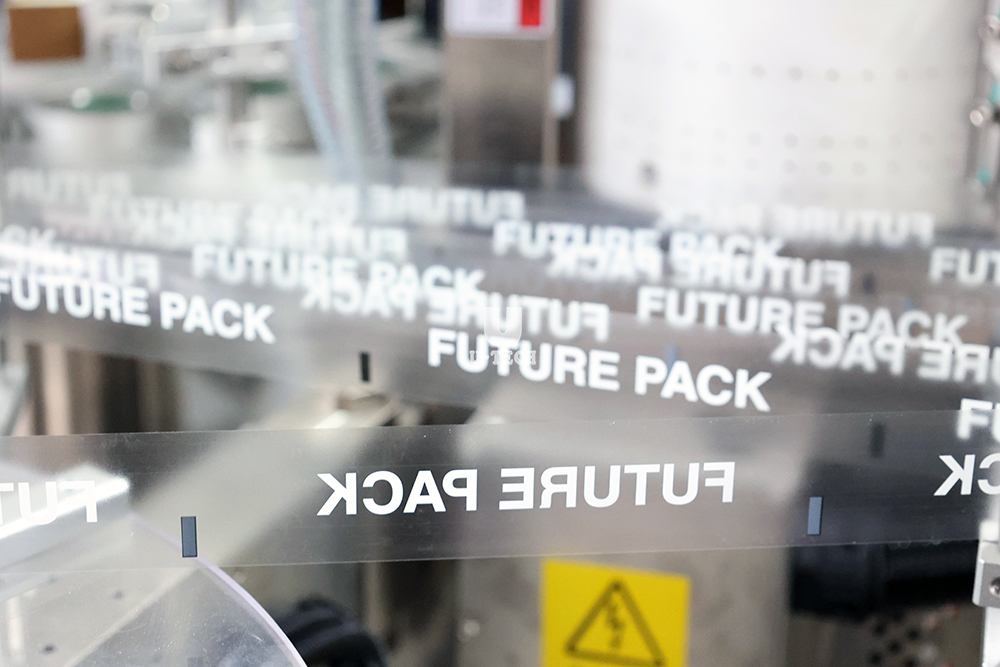

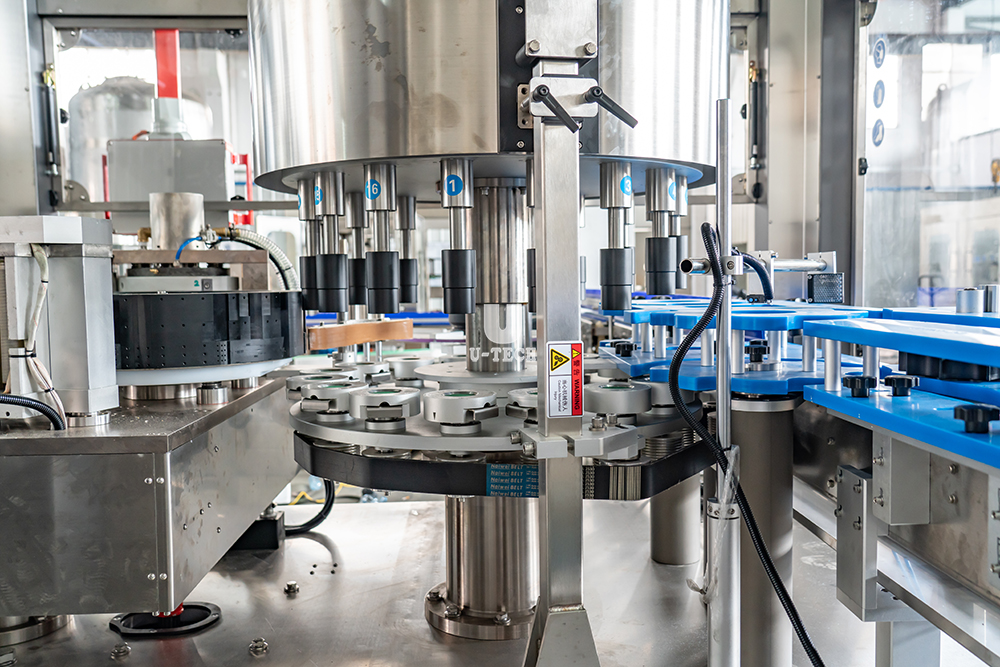

Machine details
Technical Parameters
No.
Item
Parameter data
1
Voltage
380V
2
Frequency
50Hz
3
Power
8KW
4
Available bottle dimension
Diameter:40-105mm,height=80-350MM
5
Label specification
Length:125-325mm,Height:20-150mm
6
Gluing way
Roll painting(about 10mm, both label head and tail)
7
Capacity
10,000 bottles per hour(500ml bottle)
8
Glue Consumption
l kg/ 100,000bolttle(label height:50mm)
9
Compressed Air Pressure
MIN5.0bar MAX8.0bar
10
Consumption of Compressed Air
0.2M³/minute
11
Total Weight
2500Kg
12
Overall dimension
L=3150,W=1770,H=1800
Application
water bottle
juice bottle
carbonated drinks bottle
oil bottle
ring-pull can
glass bottle
