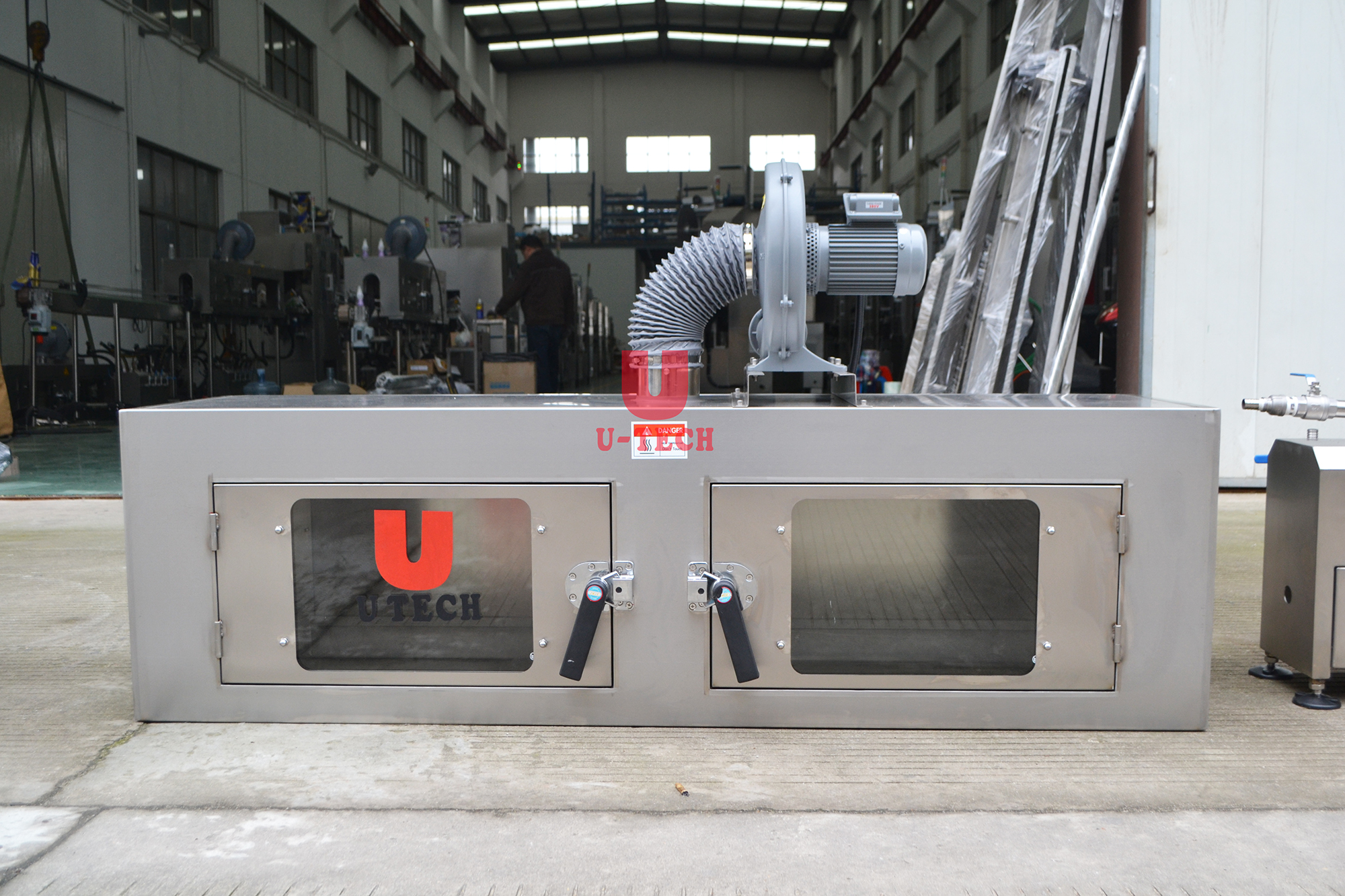

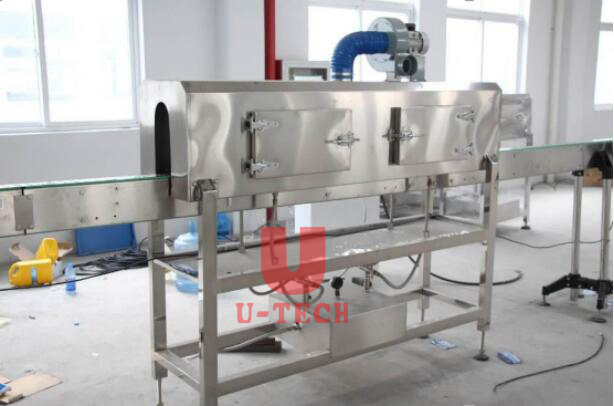

Steam Shrinking Tunnel

Quantity:

In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style steam shrinking oven is easy to adjust and maintain. It has an even shrinking. The distribution of Iow-pressure steam drum and spouting way of steam are uniform and designed with seamless tube. The nozzle is divided to be adjustable three segments and the height, position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect. The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also complies with the international safety standard. The stainless steel defrosting tray collects condense water. The whole machine adopts the water-proof design with the convenience of easy operation and low maintenance.

Special Design
Based on the original configuration, double layer holding furnace is manufactured to take effect on energy saving and environmental protection.

UTL-2000
Technical Parameters
Input Power Supply of Blower
Φ1 220VAC 1.1KW
Input Power Supply of Steam Generator
380V/50Hz
Working Pressure
≤0.1Mpa
Weight
230Kg
Steam Consumption
10-20Kg/h
Size of Oven Body
L2300mm x W400mm x H450mm
Transporting Speed
0-35m/min
