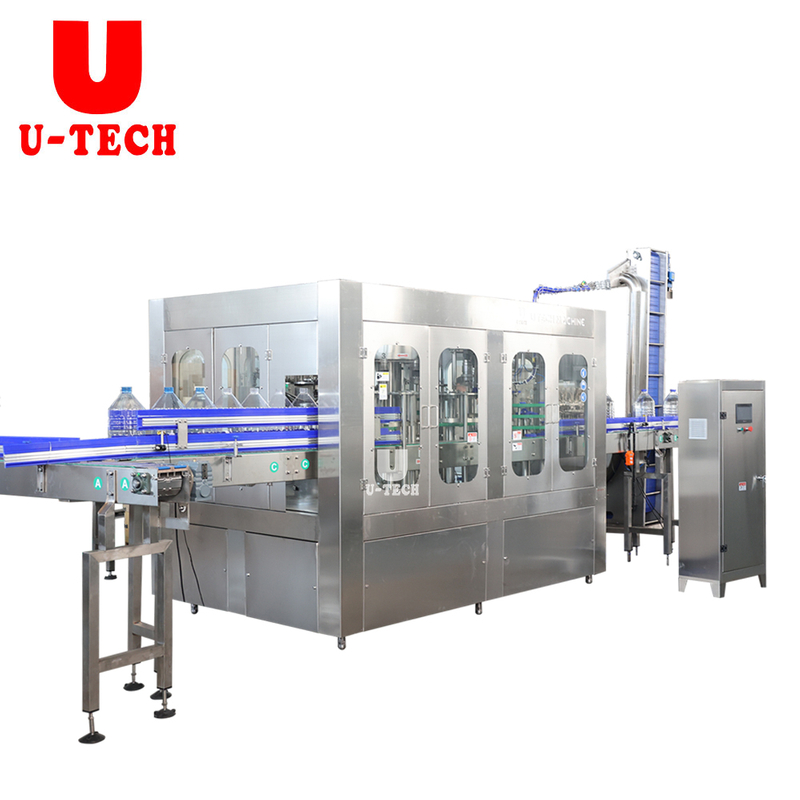

Rotary High Speed 3 in 1 Plastic Mineral Drinking Water 10L Water Filling Machine Line

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

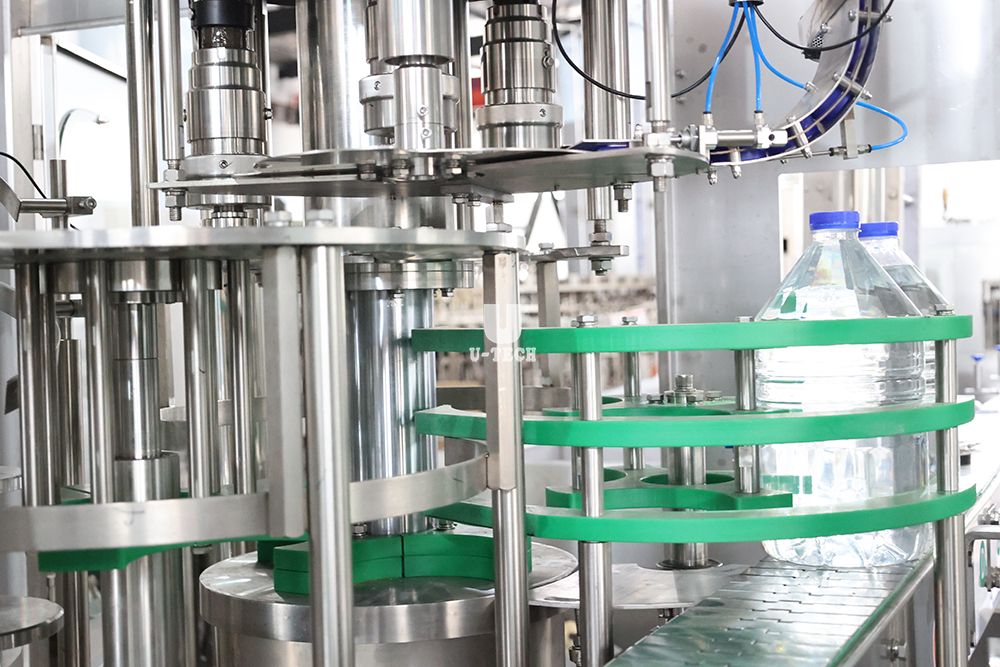

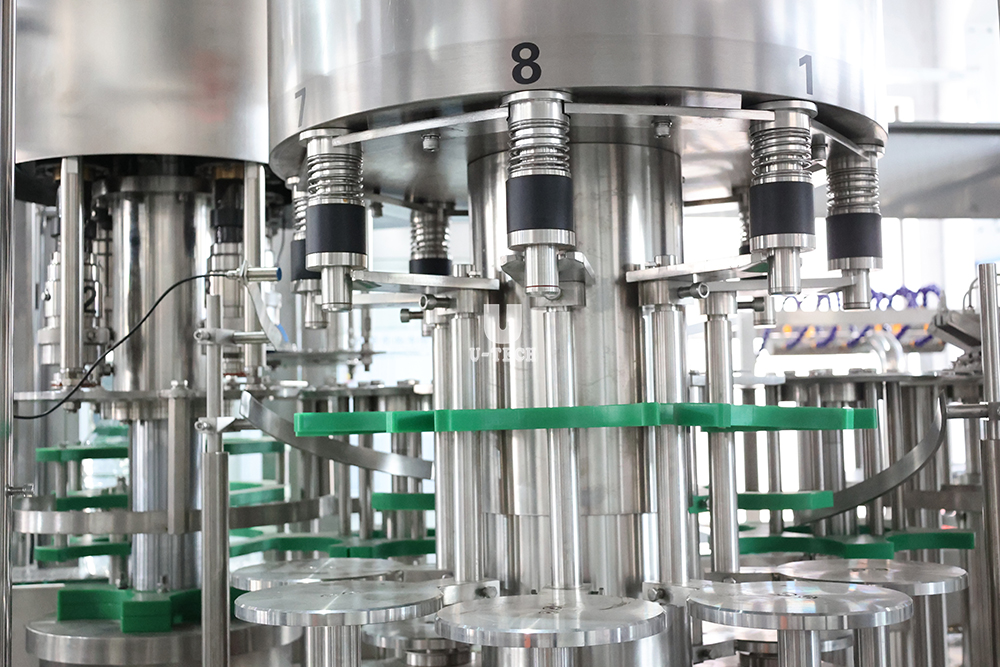

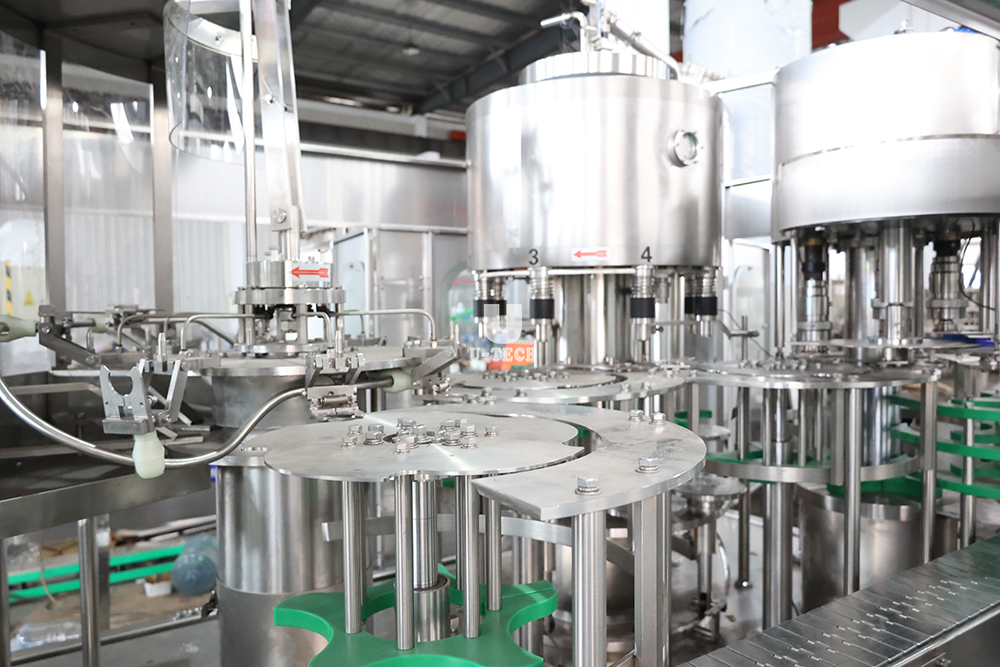

The water filling machine is a 3 in 1 equipment composed of 8 rinsing heads, 8 filling heads and 8 capping heads. It is innovated and designed in the requirement of pure water and mineral water in 5L bottle, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

Technical Parameters

Model	XGF8-8-3
Working stations	Rinsing 8, filling 8,capping3
Capacity	1200B/H
Air source pressure	0.4MPa
Air consumption	0.7m3/min
Rinsing water pressure	0.2-0.3MPa
Rinsing water consumption	2.5T/h
Man motor power	2.5KW
Dimension	3900×3123×2700
Total weight	3000kg

Details Images

Flow chart

Water treatment system

Water treatment system,also called water filtration sterlizer system, is the process of purifying the raw water by a series equipments and devices to be drinkable.The water treatment equipment includes silica sand filter, active carbon filter, sodium-ion exchanger, precision filter, reverse osmosis, hollow fiber filter, ozone generator, ozone mixing tower and water tank, etc.

Automatic pet bottle blowing machine

The pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities
and the maximum capacity of the products is 20L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.

5L water filling machine

The bottle types applicable for various parts are easily, conveniently and rapidly adjustable when you want to produce from 5L to 12L or 15L bottle.It adopts new micro-negative pressure filling, stable and reliable. Compared with other same model same specification machines, the benefit of our machine is stable and strong machine structure, the materials is very real.

Bottle dryer

The air knife dryer uses the large amount of air generated by the blower to blow off/blow the water droplets outside the bottle to achieve the effect of drying, so as to prepare for the next step of coding, labeling, labeling and other packaging. The overall structure of the air knife dryer is reasonable and simple, and the operation is simple. At the same time, the drying principle is wind, not high temperature, and is more suitable for some plastic bottles that are not resistant to high temperature.

Adhesive labeling machine

The main categories are: automatic vertical round bottle labeling machine, automatic horizontal round bottle labeling machine, automatic corner labeling machine, automatic wine labeling machine, flat labeling machine, automatic flat assembly line labeling head , Upper and lower self-adhesive labeling machine, double-sided pneumatic labeling machine, single-sided labeling machine.
