Rotary Automatic 3 in 1 Small Plastic Glass Bottle Vinegar Fish Soy Sauce Filling Machine Line

Availability:
Quantity:
Inquire Add to Basket

Product Description
This is full automatic 3-in-1 small bottle filling and capping machine which is piston filling type. It could be
applicable for all kinds of oil, birds' nest , fruit &vegetable sauce(with or without solid piece),granule drink quantify filling
and capping.It has PLC control system and is easy to operate.
Application
Technical parameter
Model
UT 24-24-6
Washing heads
24
Filling heads
24
Capping heads
6
Capacity
10000-12000BPH (500ml)
Suited bottles
Design by part glass
Enter source pressure
0.7MPa
Enter consumption
0.8 m3/min
Rinser water pressure
0.2～0.25MPa
Rinser water consumption
1-2t/hr
Working AC
380V
Control DC
24V
Main motor power
2.2KW
Main power
5.5KW
Diamension
2260X1610X2750mm
Weight
4000kg

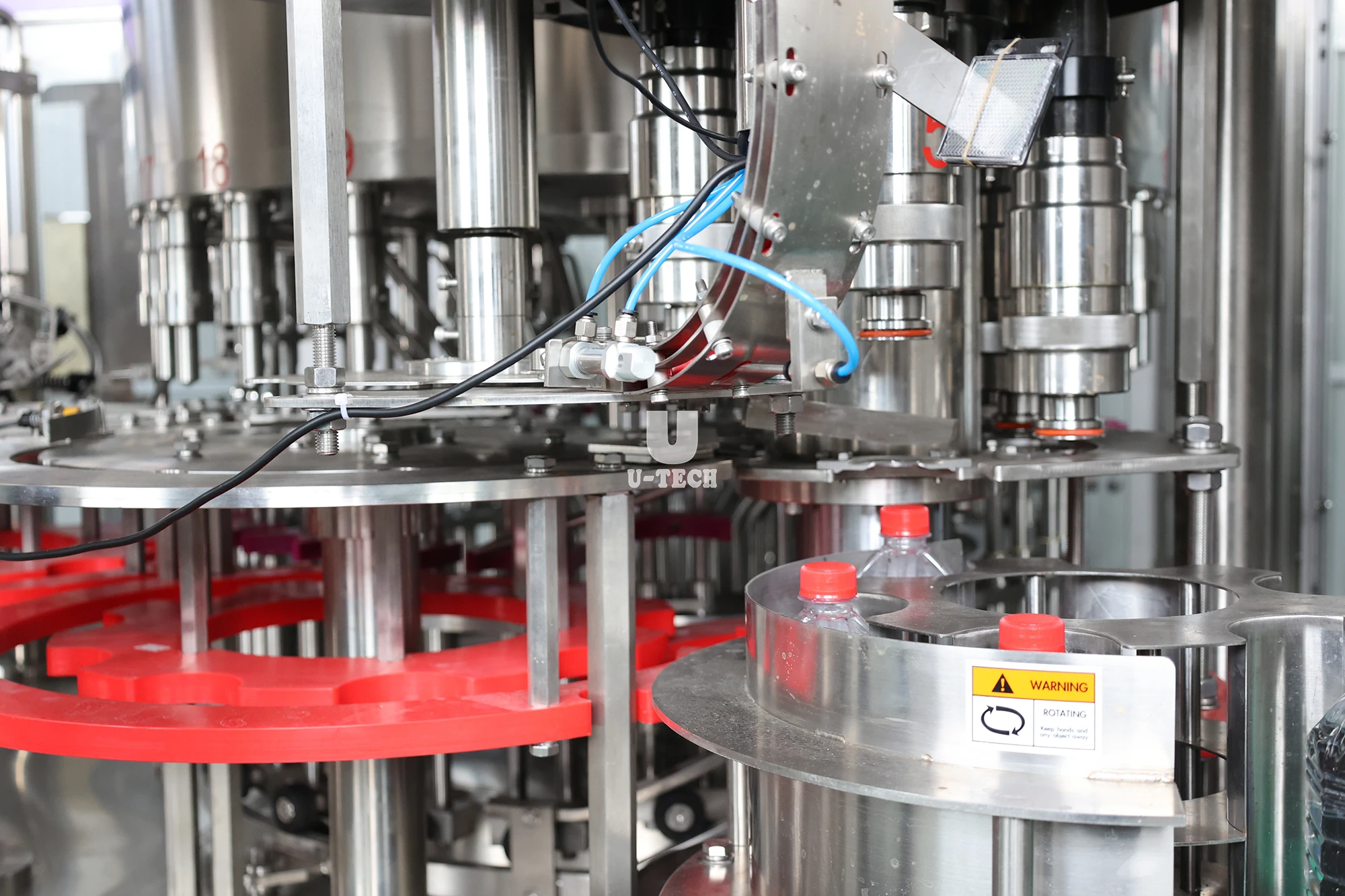

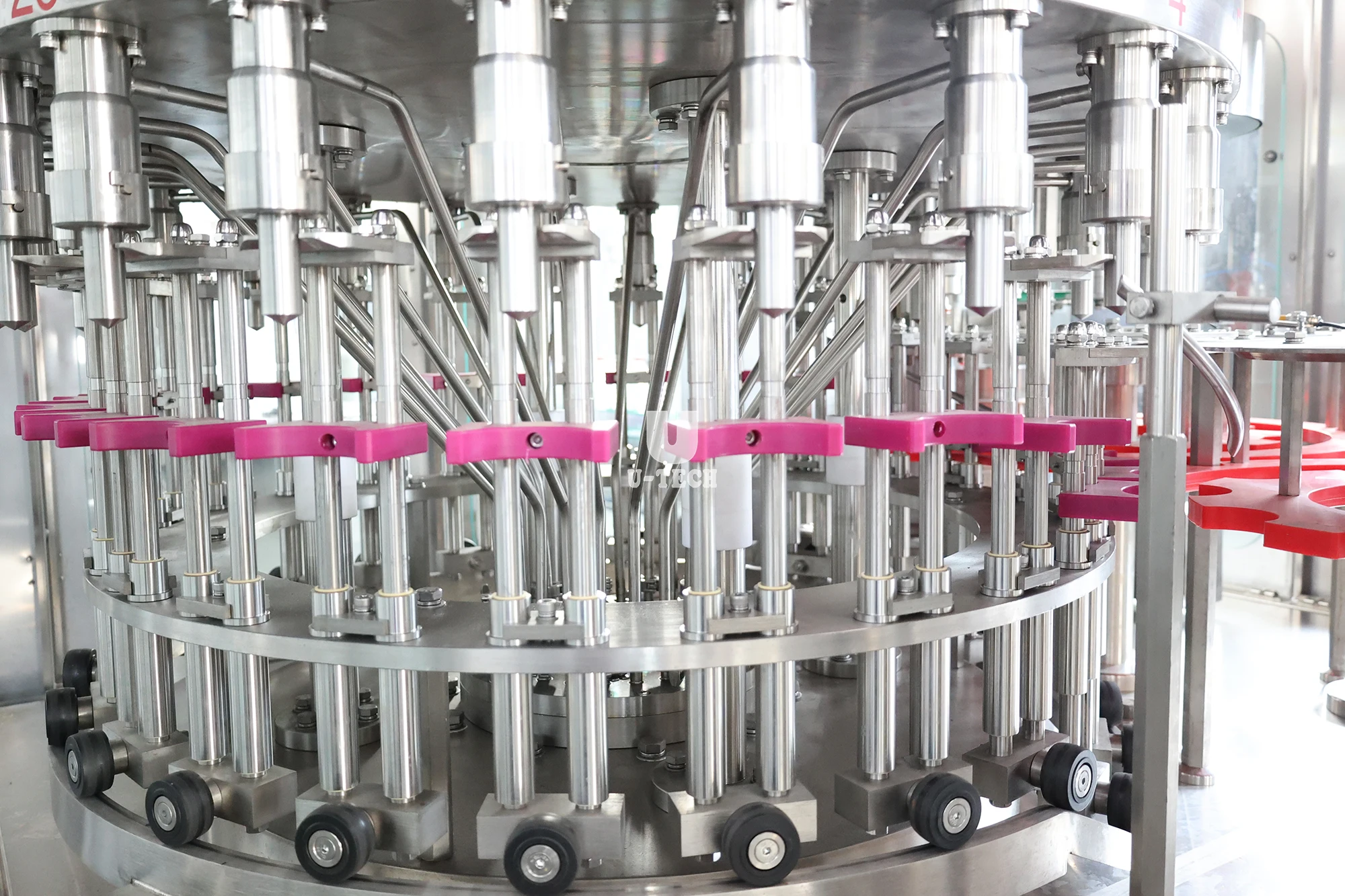

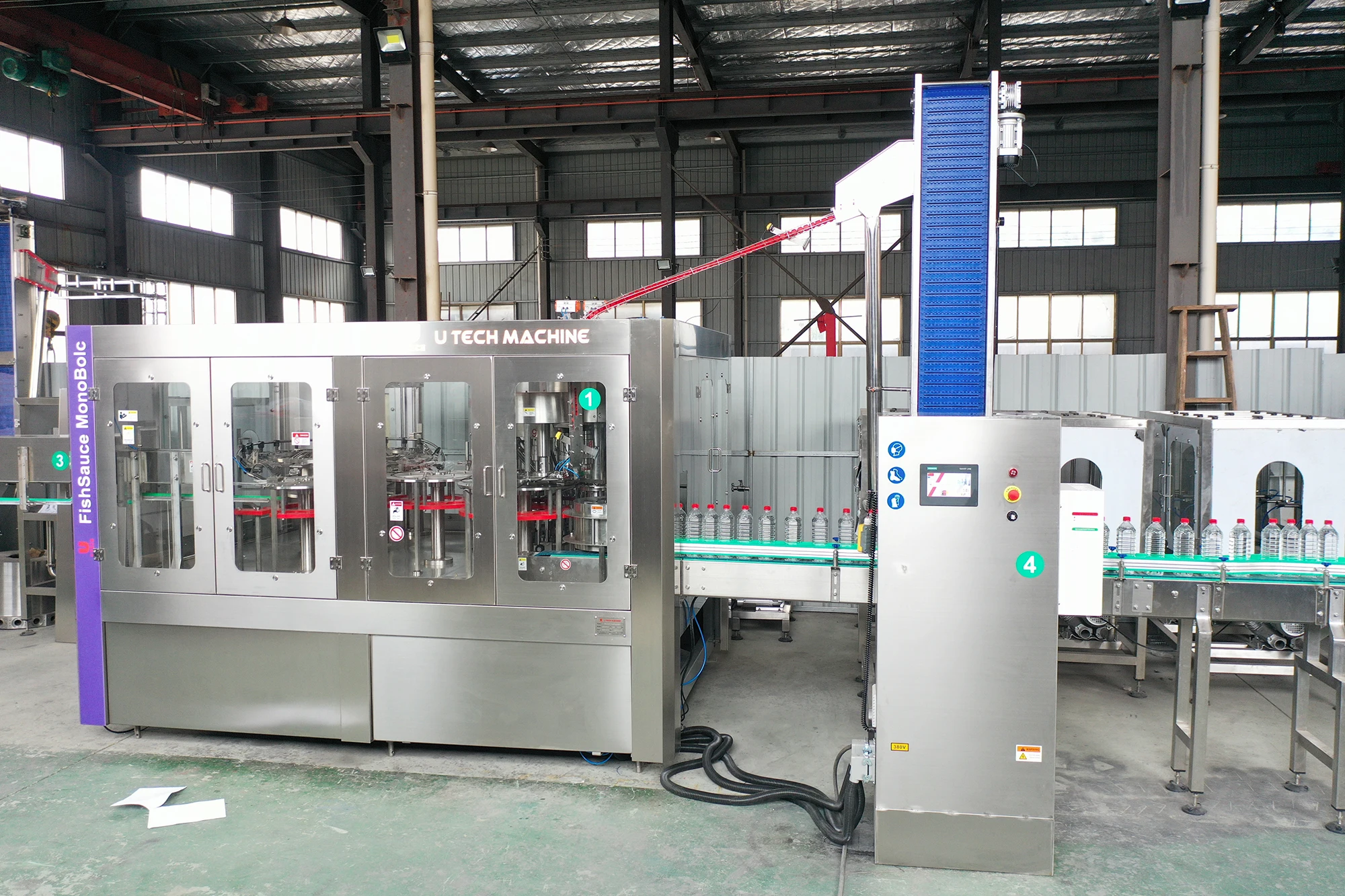

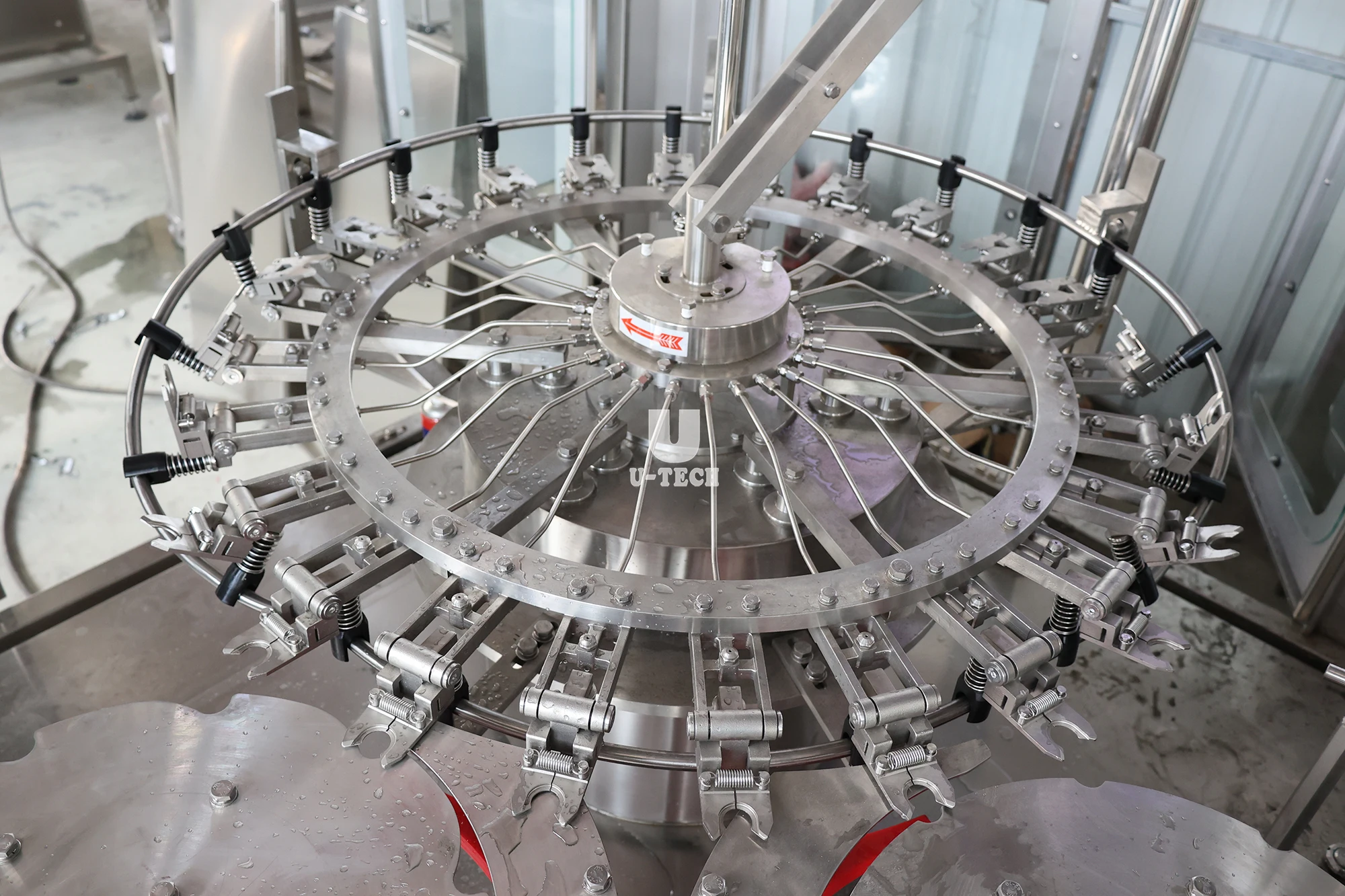

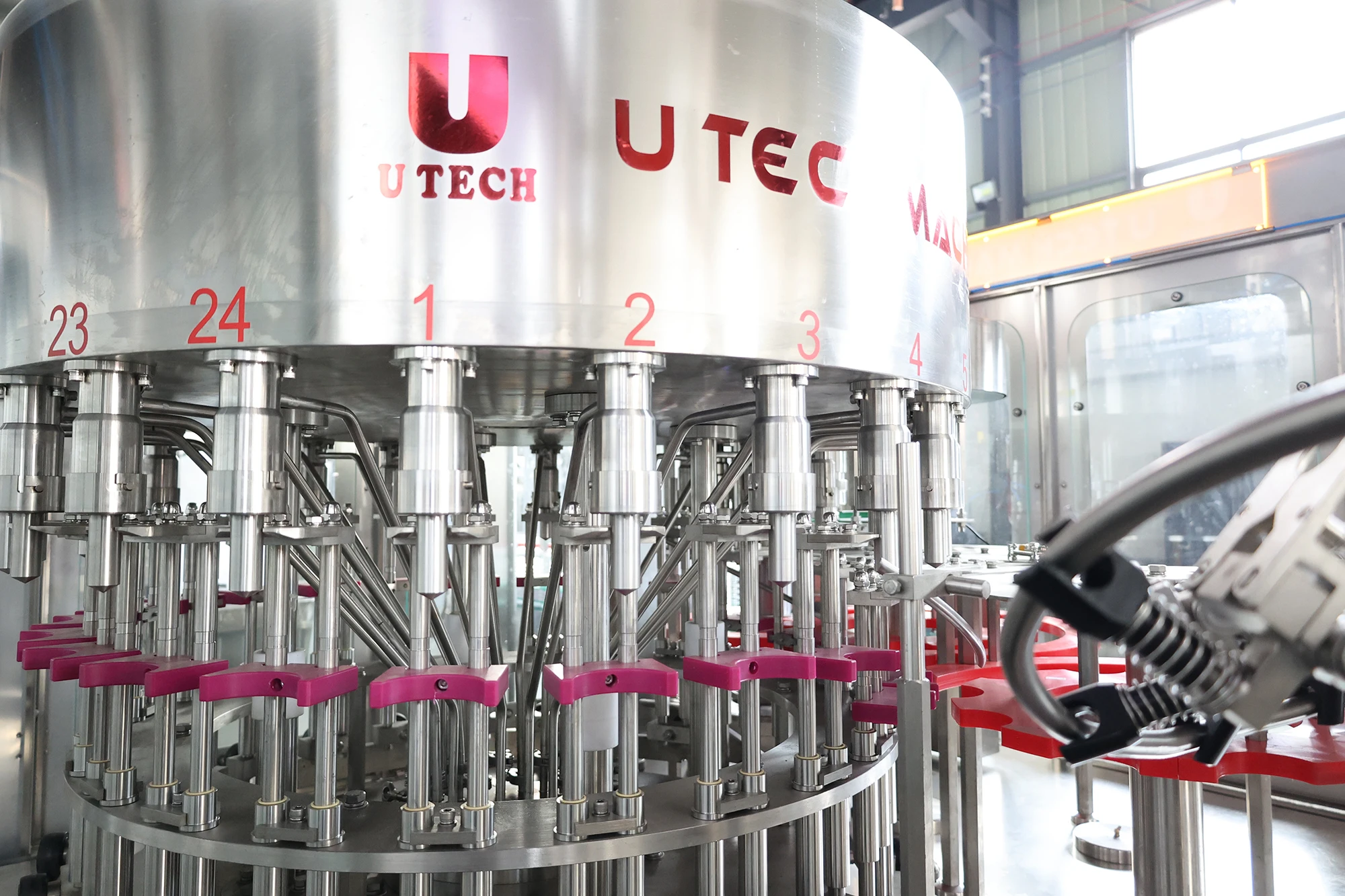

Detailed Images
