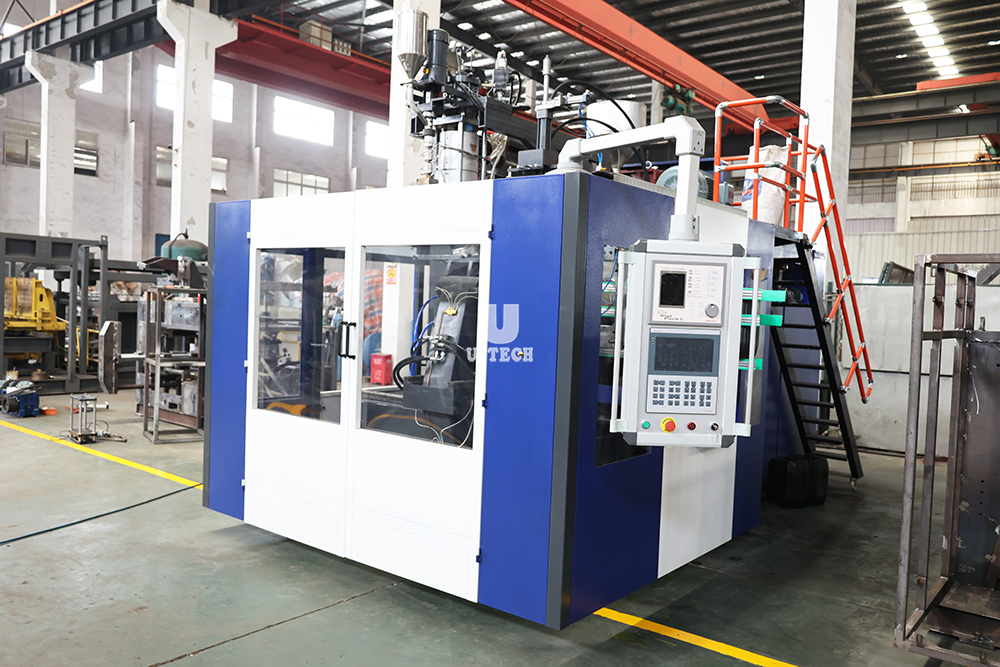

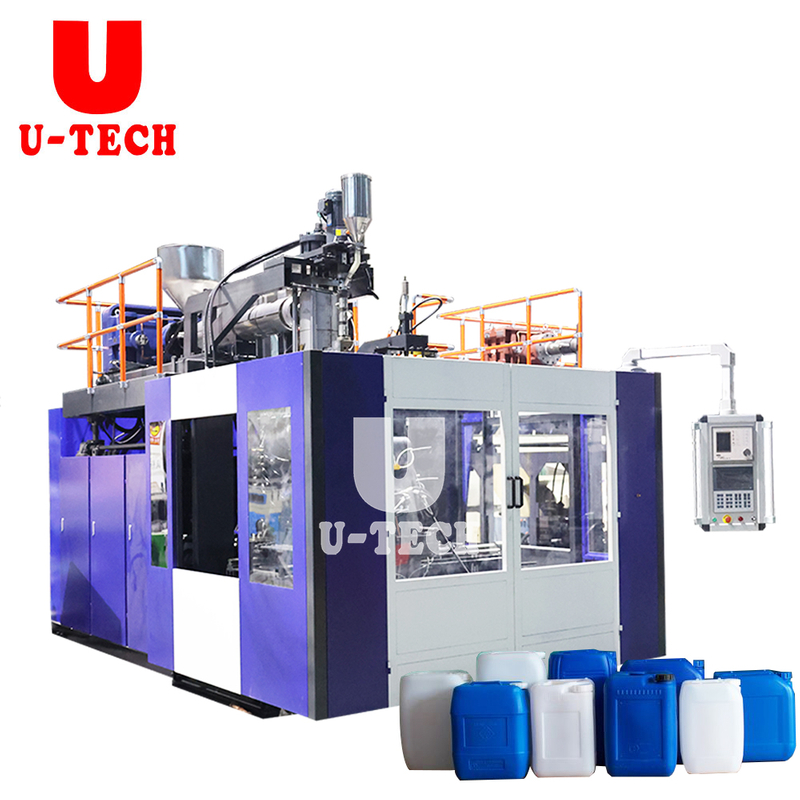

PP PE Chemical Container 20L Drum Plastic Blow Moulding Machine

Quantity:
  • BST-20
  • U TECH

PP PE chemical container 20L drum plastic blow moulding machine


Introduction

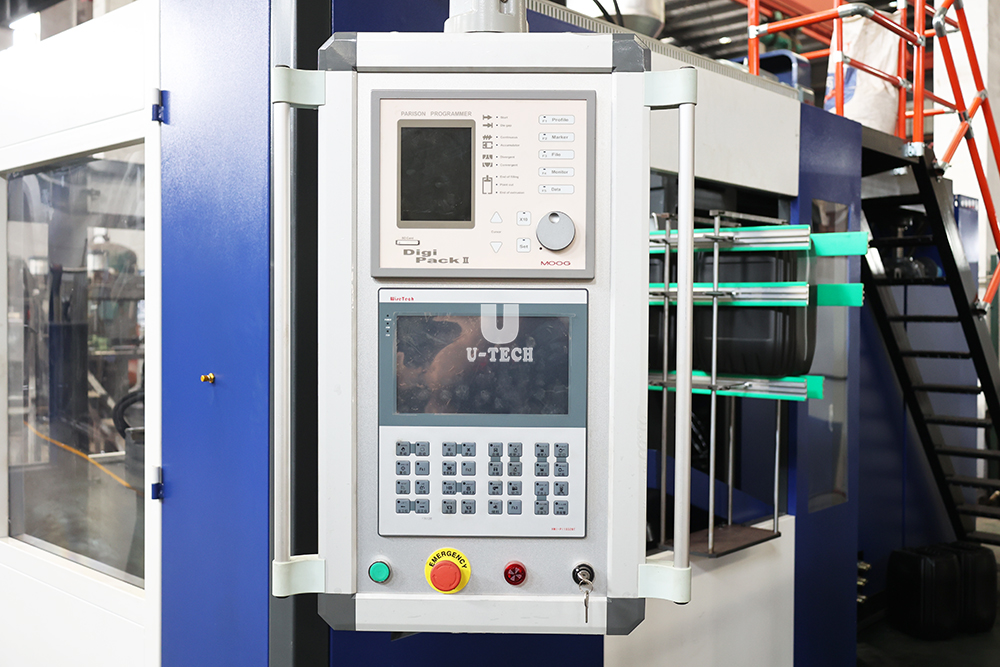

1. the electronic control system: Japan's Mitsubishi PLC computer and human-machine interface (English or Chinese) control, color touch-screen operation. All the process set to change, retrieval, monitoring, troubleshooting and other functions are implemented on the touch screen, no point of contact with the working principle, components and durable.


2. the hydraulic system: proportional pressure control, with imported brands Yuken hydraulic components, stable and reliable.


3. the plasticizing system: efficient plastics mixing screw, to ensure plasticizing full uniform.


4. the speed control system: VVVF + alloy steel and hard gear reducer, speed stable, low noise, durable.

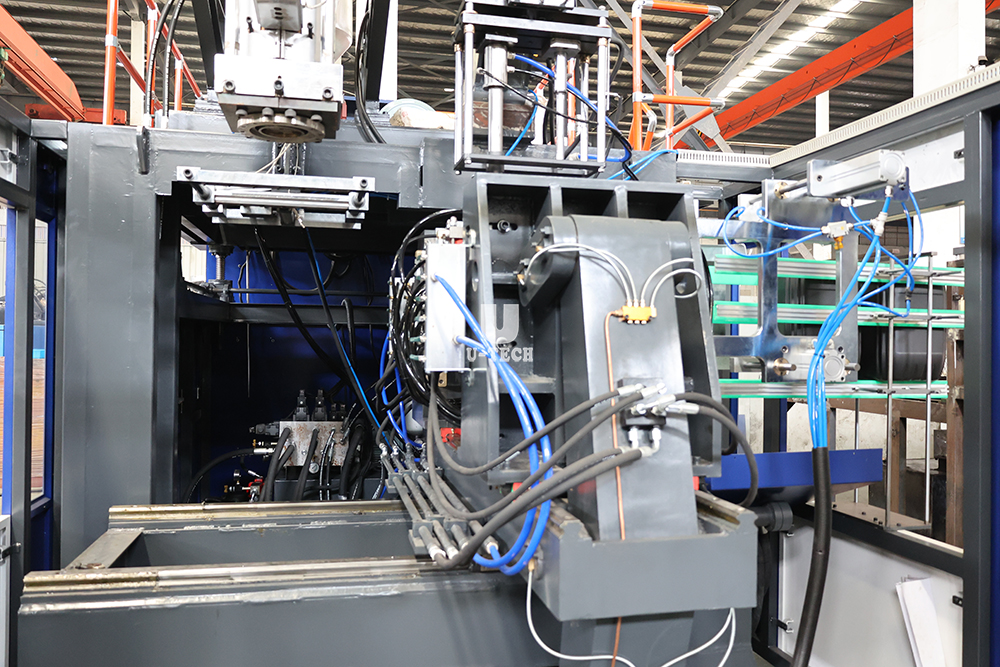

5. the opening and closing mold, mold transfer system: beam arm, three position, center locking clamping mechanism, to ensure long-term use. Clamping force balance, no deformation, the use of body translation mode (ball linear guide), high precision, low resistance, fast.


6. blowing the needle holder: blow the whole Square-type needle holder, a solid does not shift to ensure a smooth incision products.



Feature


Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.


Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.


Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing. It provides sufficient steady high pressure to blowing. It provides sufficient steady high pressure to bloww large irregular shape bottles.


Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.


Operated step-by-step and in semi-auto maode.


Wide-mouth jar and hot-fill bottles can also be made.



Parameter

SPECIFICATIONS & TECHNICAL DATA

Extrusion Unit

Screw Diameter

mm

75

Plasticizing Capacity

Kg/hour

90

Temperature Control Zone

No.

5

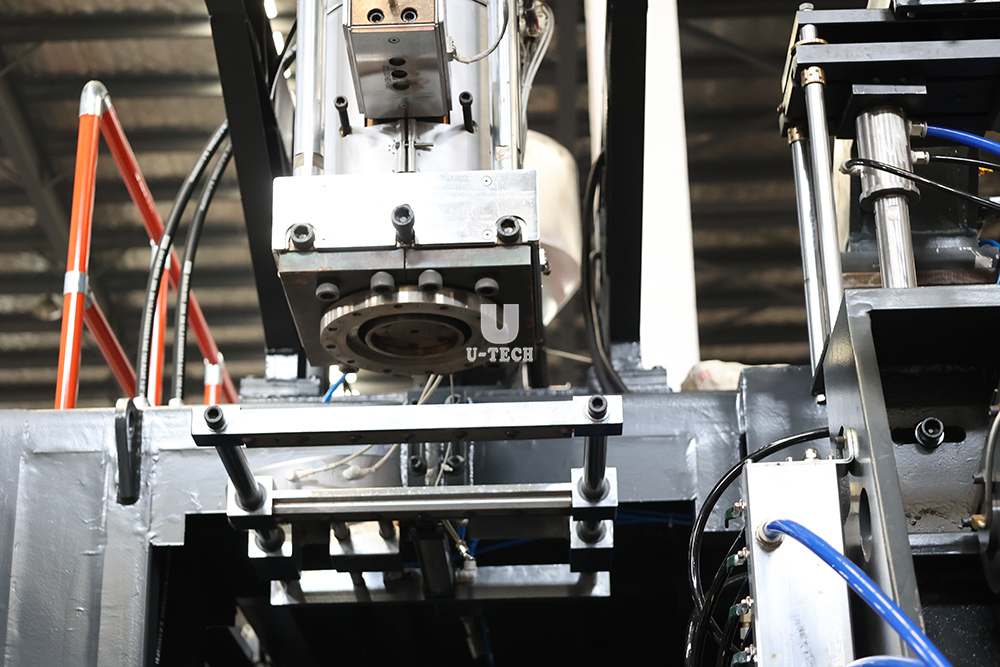

Continuous Head

Single Head Max Die Diameter

mm

230

Double Head Central Distance

mm

230

Triple Head Central Distance

mm

160

Four Head Central Distance

mm

120

Clamping Unit

Clamping Force

KN

180

Platen Size

mm

500x550

Opening Distance

mm

250~750

Moving Distance

mm

560

Max Mould Size

mm

600x500

Driving System

Extrusion Motor Power

KW

30

Pump Motor Power

KW

11

Machine Total Power

KW

72

Average Power Consumption

KW

37
