High Speed Complete Project Automatic Small Bottle Mango Grape Apple Orange Fruit Juice Filling Machine

Availability:
Quantity:
Inquire Add to Basket

Description
RCGF series juice filling line is used to produce PET bottled juice within the volume from 200ml to 2000ml.different models can satisfy various requirement of output from 1500B/H to 25000B/H.this machine incorporates ringsing,filling and capping into one kind of full-automatic equipment.It is suitable for producing PET and Plastic bottled juice and tea.The method of filling adopts hot filling .The equipment is fitted with advanced Mitshbishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable.the photoelectric sensor is used to detect operating confitions of each section,which makes the operation of this equipment highly automatic and convenient.
Flow
Sample
Technical Parameters
Model
RCGF8-8-3
RCGF14-12-5
RCGF16-16-5
RCGF24-24-6
RCGF32-32-8
RCGF40-40-10
capacity(BPH)
1500
(500ML)
4000
（500ML）
5500
(500ML)
8000
(500ML)
10000
(500ML)
14000
(500ML)
washing heads
8
14
16
24
32
40
filling
heads
8
12
16
24
32
40
capping heads
3
5
5
6
8
10
suitable bottle
PET bottle plastic bottle
diameter of bottle
55-100mm
height of bottle
150-300mm
suitable cap
plastic screw cap
weight(kg)
1500
2000
3000
5000
7000
7800
main motor power(kw)
1.2
1.5
2.2
2.2
3
5.5

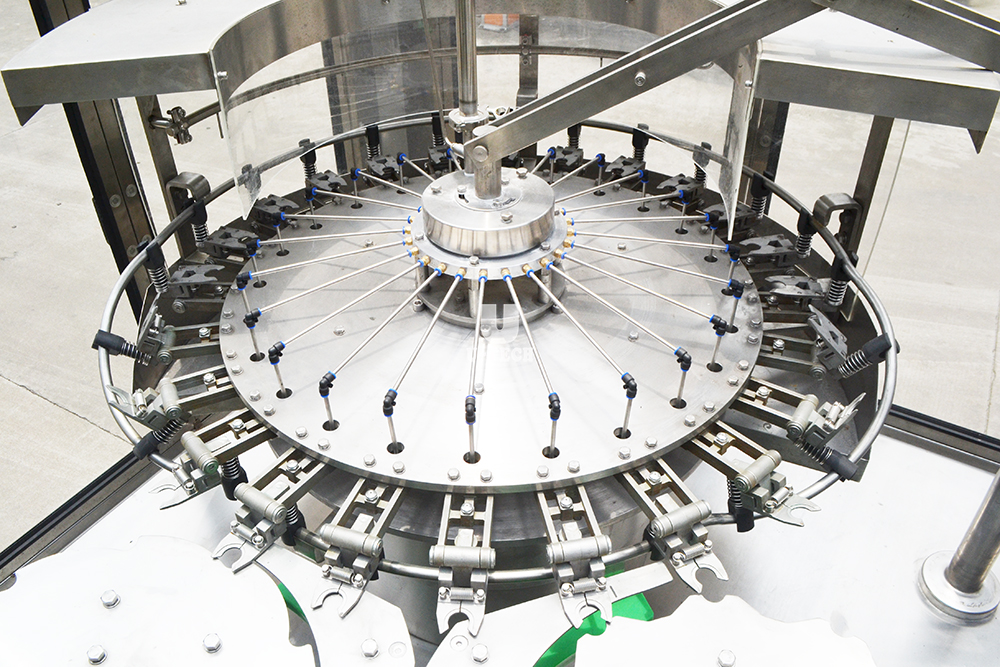

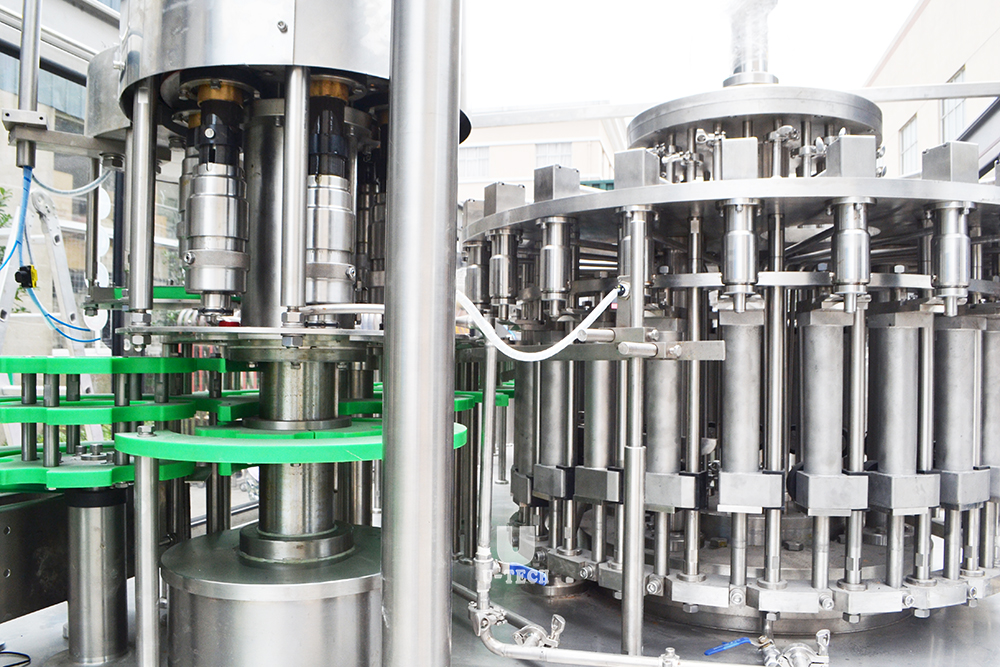

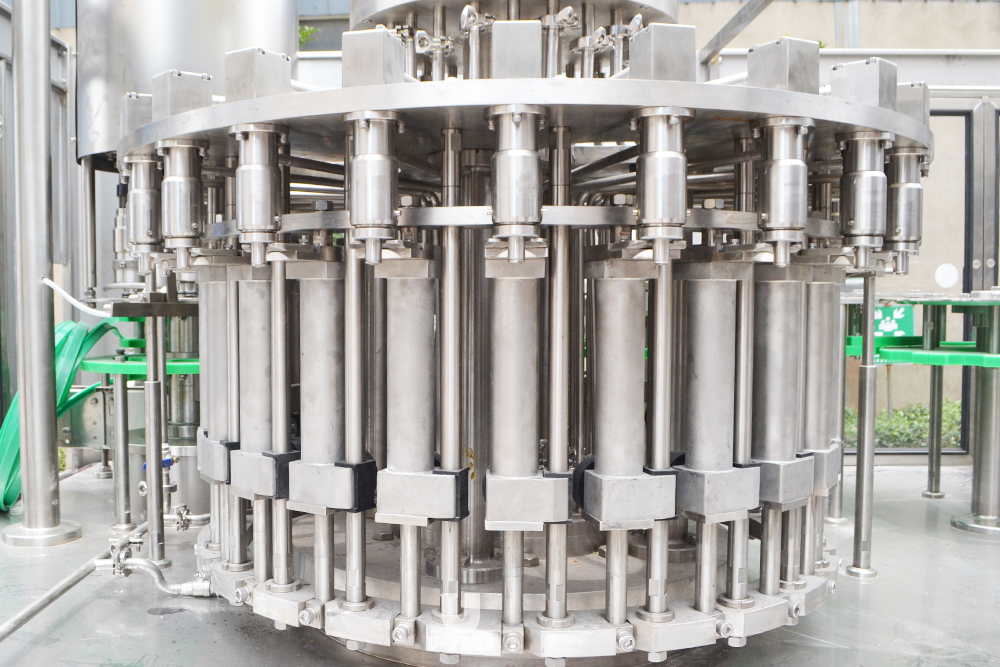

Machine Details
