High Speed Automatic Plastic Glass Bottle Beverage Energy Drink Beer Can Opp Labeling Machine

Share to:

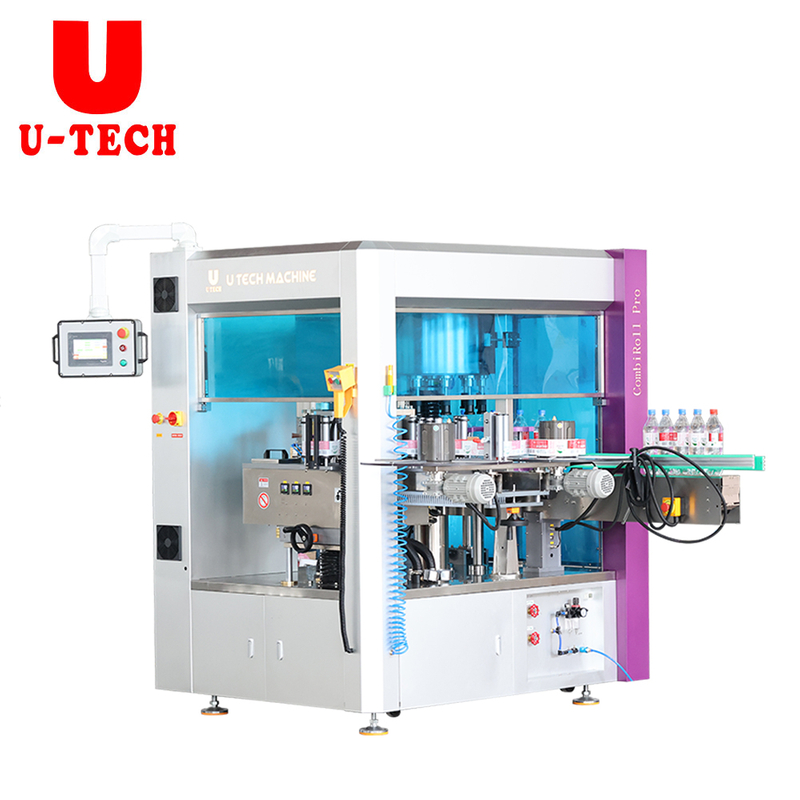

High Speed Automatic Plastic Glass Bottle Beverage Energy Drink Beer Can Opp Labeling Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Introduction

This hot melt glue plastic bottle label applicator is widely suitable for different material of container and label. The label
cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical models in cost to make mass production and intergrated operating.

This equipment adopts the current labeling machine type, the most advanced, the most precise method for the volume label of OPP and other plastic material as base material, through the automatic correction instrument and various kinds of high precision photoelectric sensing elements to control the label location precision, adopt scientific institutions to complete automatic cutting and automatic send logo, and will be in the form of roller coating label solid, reliable and accurate paste on the packing materials.

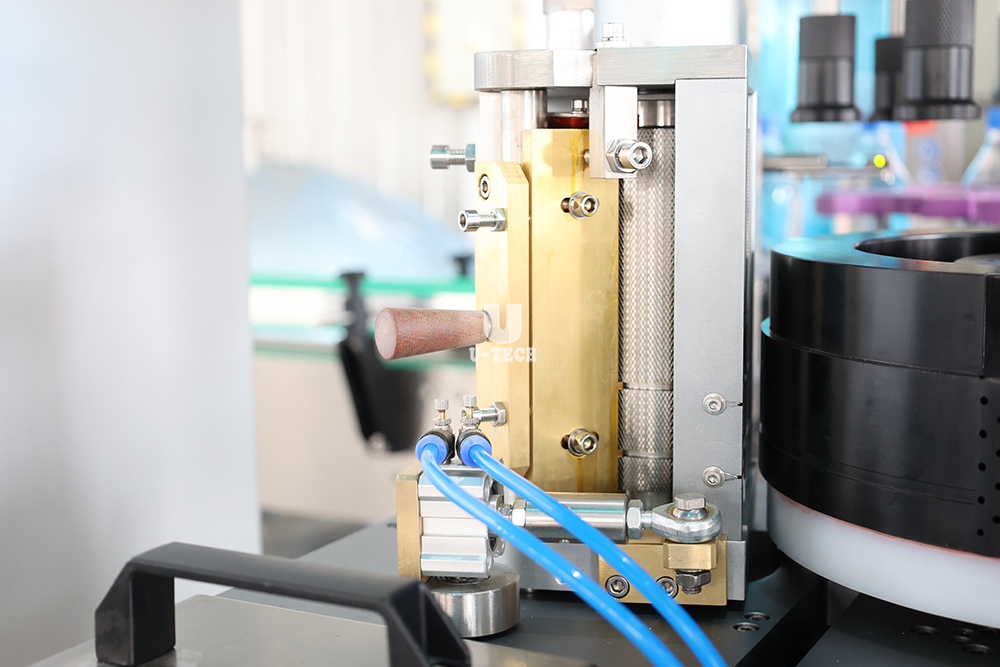

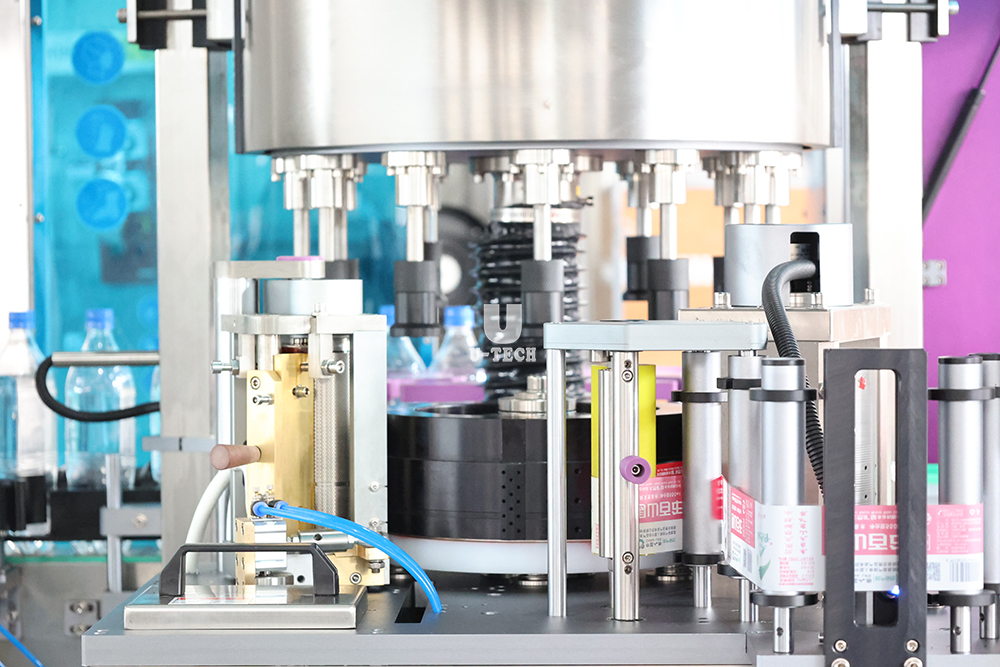

Machine details

Technical Parameters

No.	Item	Parameter data
1	Voltage	380V
2	Frequency	50Hz
3	Power	8KW
4	Available bottle dimension	Diameter:40-105mm,height=80-350MM
5	Label specification	Length:125-325mm,Height:20-150mm
6	Gluing way	Roll painting(about 10mm, both label head and tail)
7	Capacity	10,000 bottles per hour(500ml bottle)
8	Glue Consumption	l kg/ 100,000bolttle(label height:50mm)
9	Compressed Air Pressure	MIN5.0bar MAX8.0bar
10	Consumption of Compressed Air	0.2M³/minute
11	Total Weight	2500Kg
12	Overall dimension	L=3150,W=1770,H=1800

Application

water bottle

juice bottle

carbonated drinks bottle

oil bottle

ring-pull can

glass bottle
