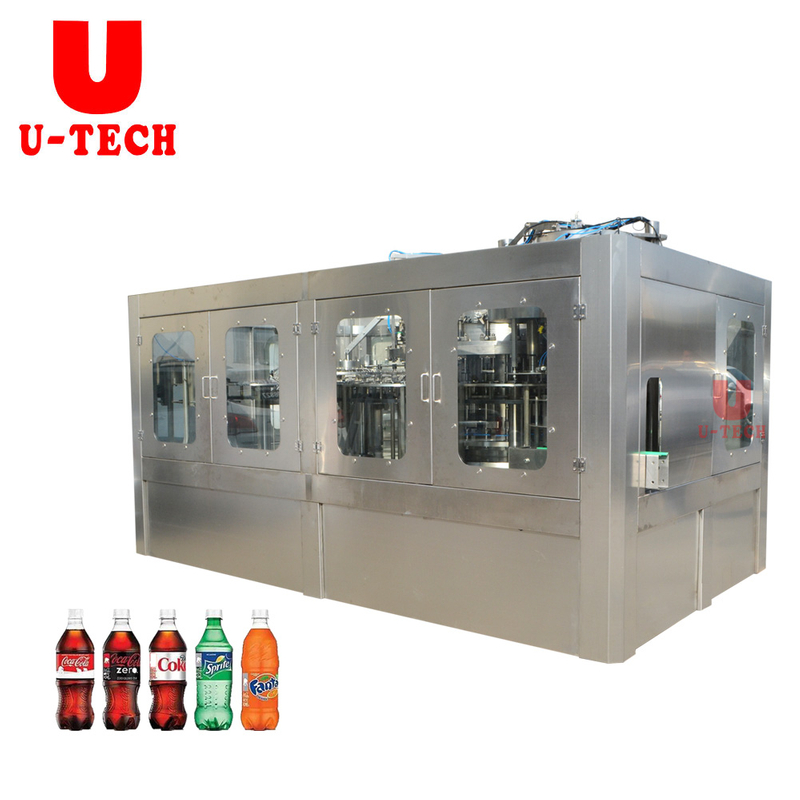

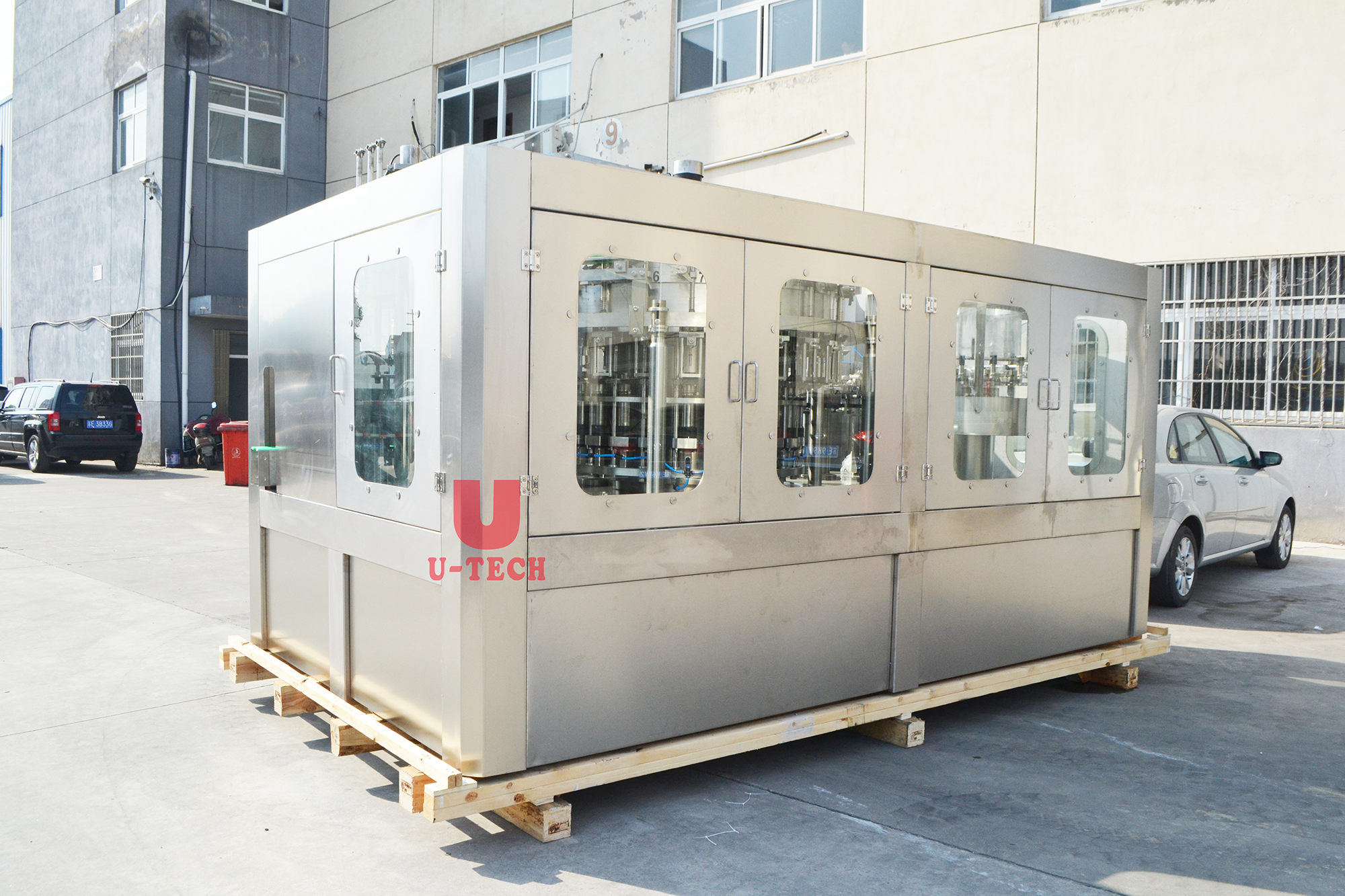

Automatic Small Scale Bottle 3 in 1 Cola Carbonated Drinks Drinking Soda Water Filling Machinery

Availability:
Quantity:
Inquire Add to Basket

Description and Flow
The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.

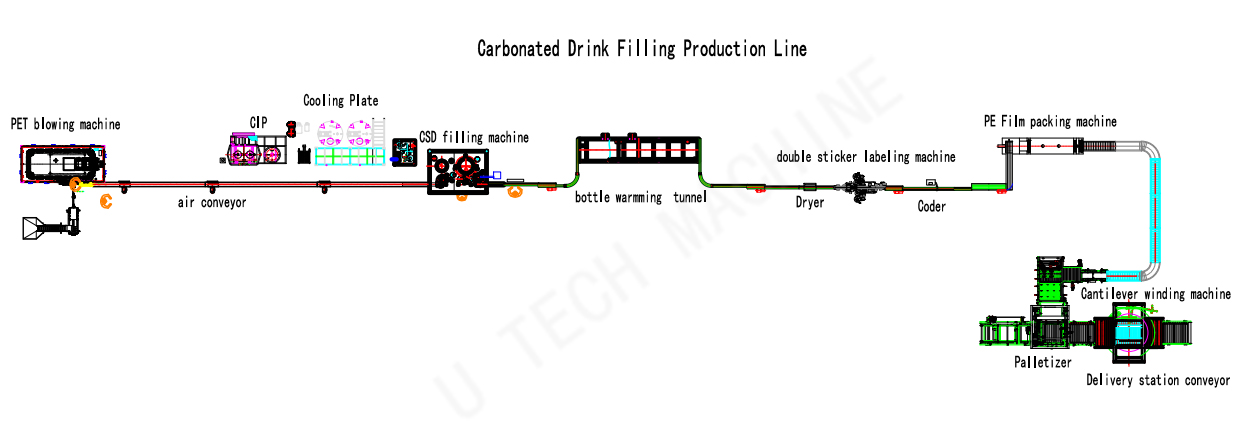

Flow

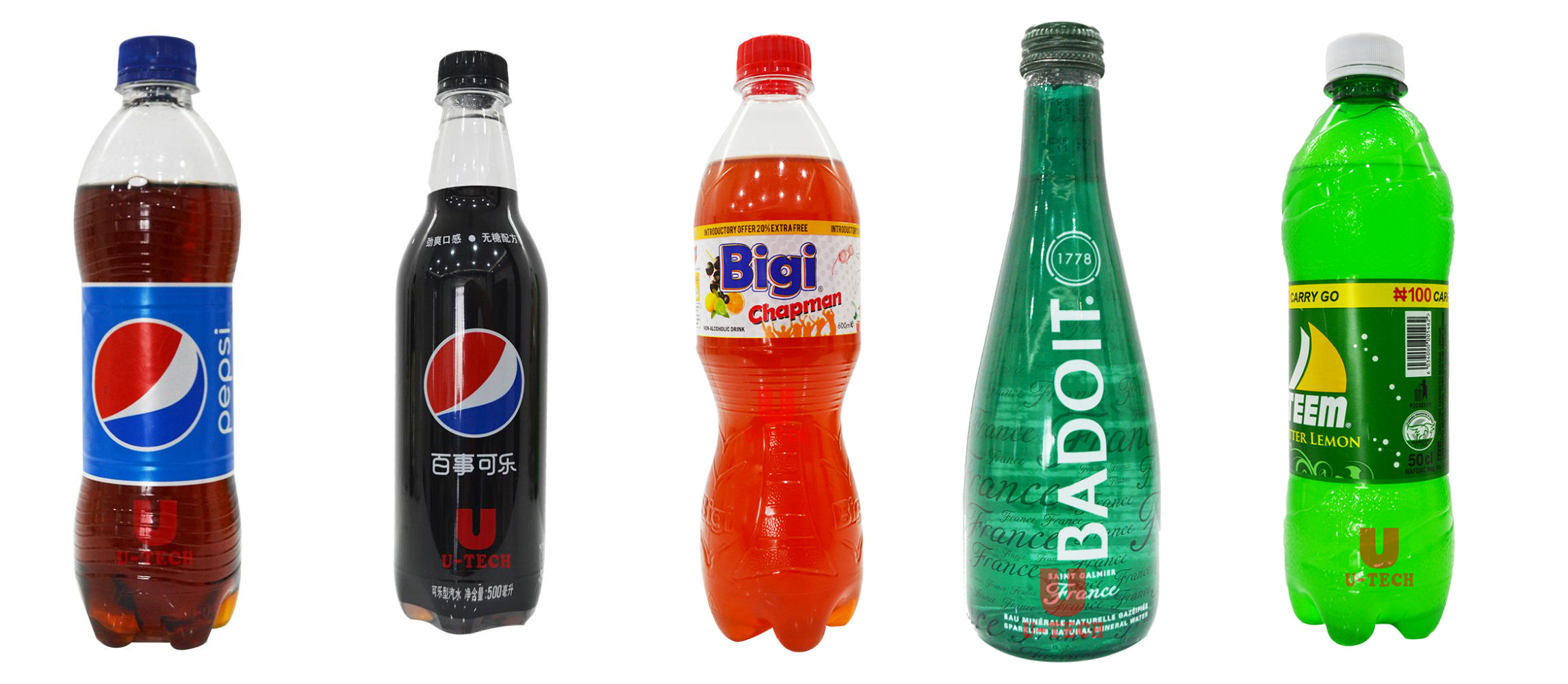

Sample
Technical Parameters
Model
DCGF24-24-6
capacity(500ml)
6000BPH(500ML)

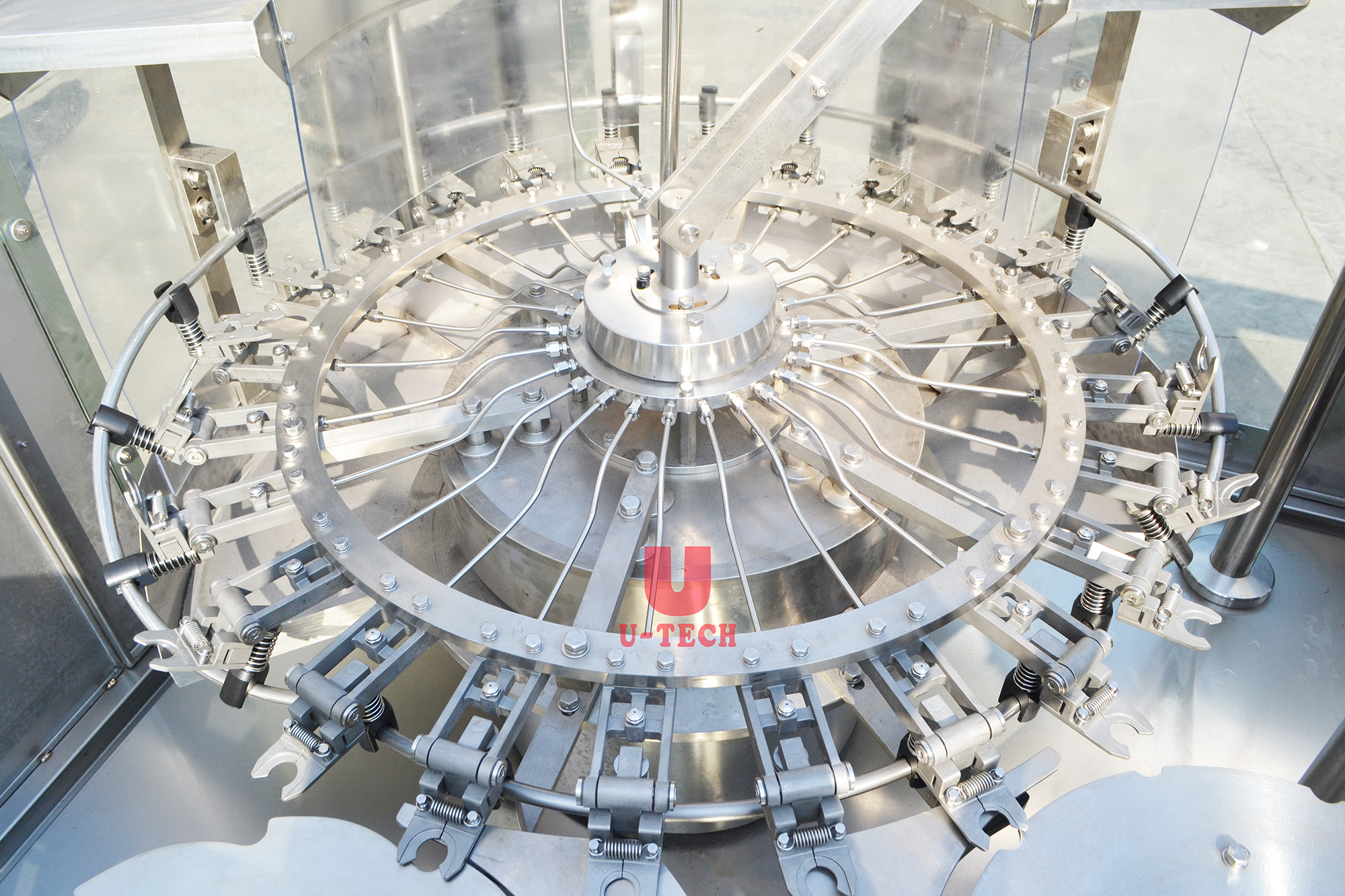

Washing heads
24

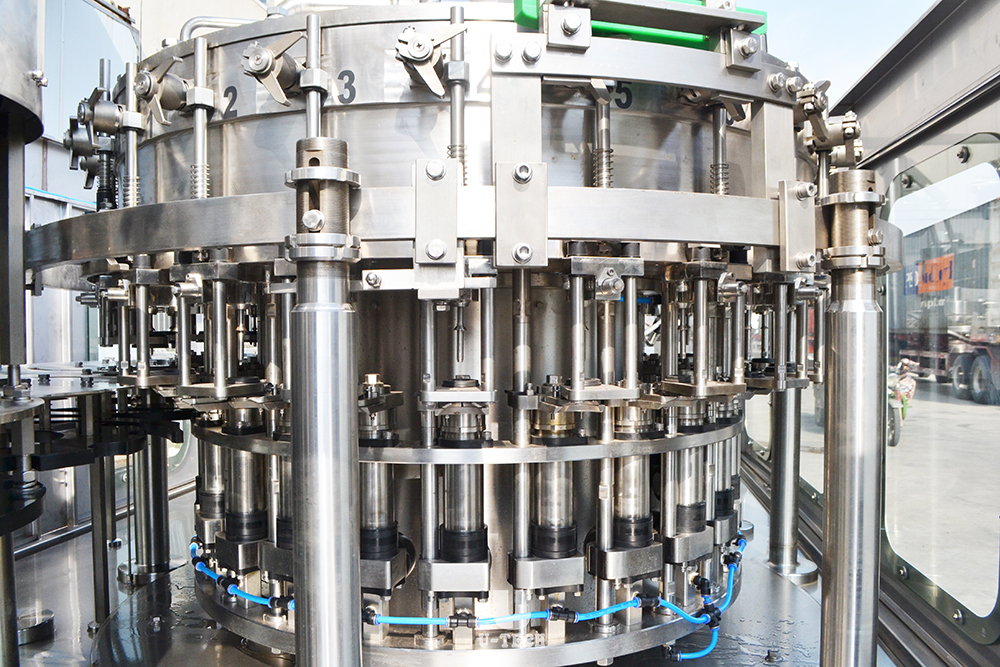

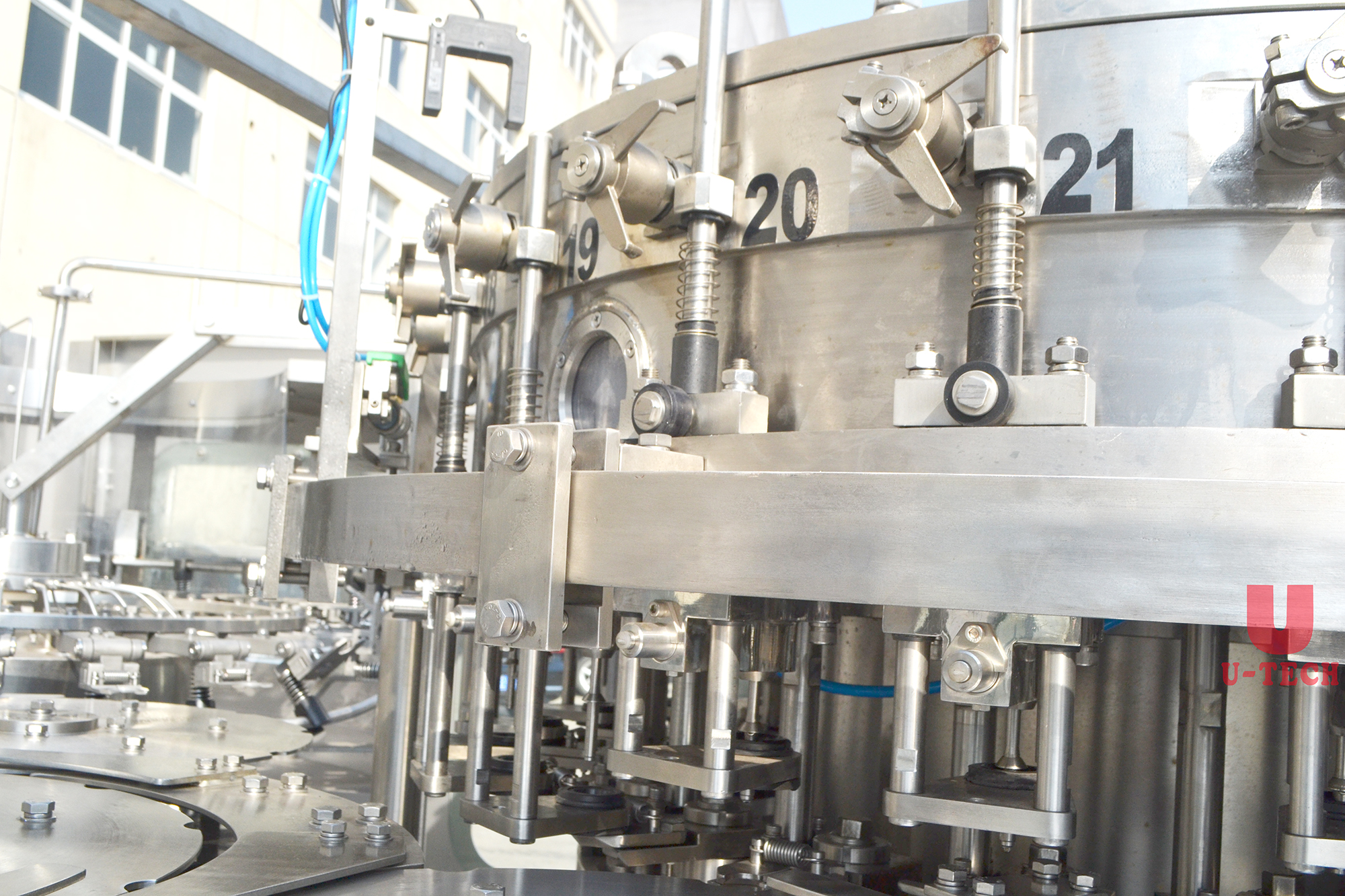

Filling heads
24

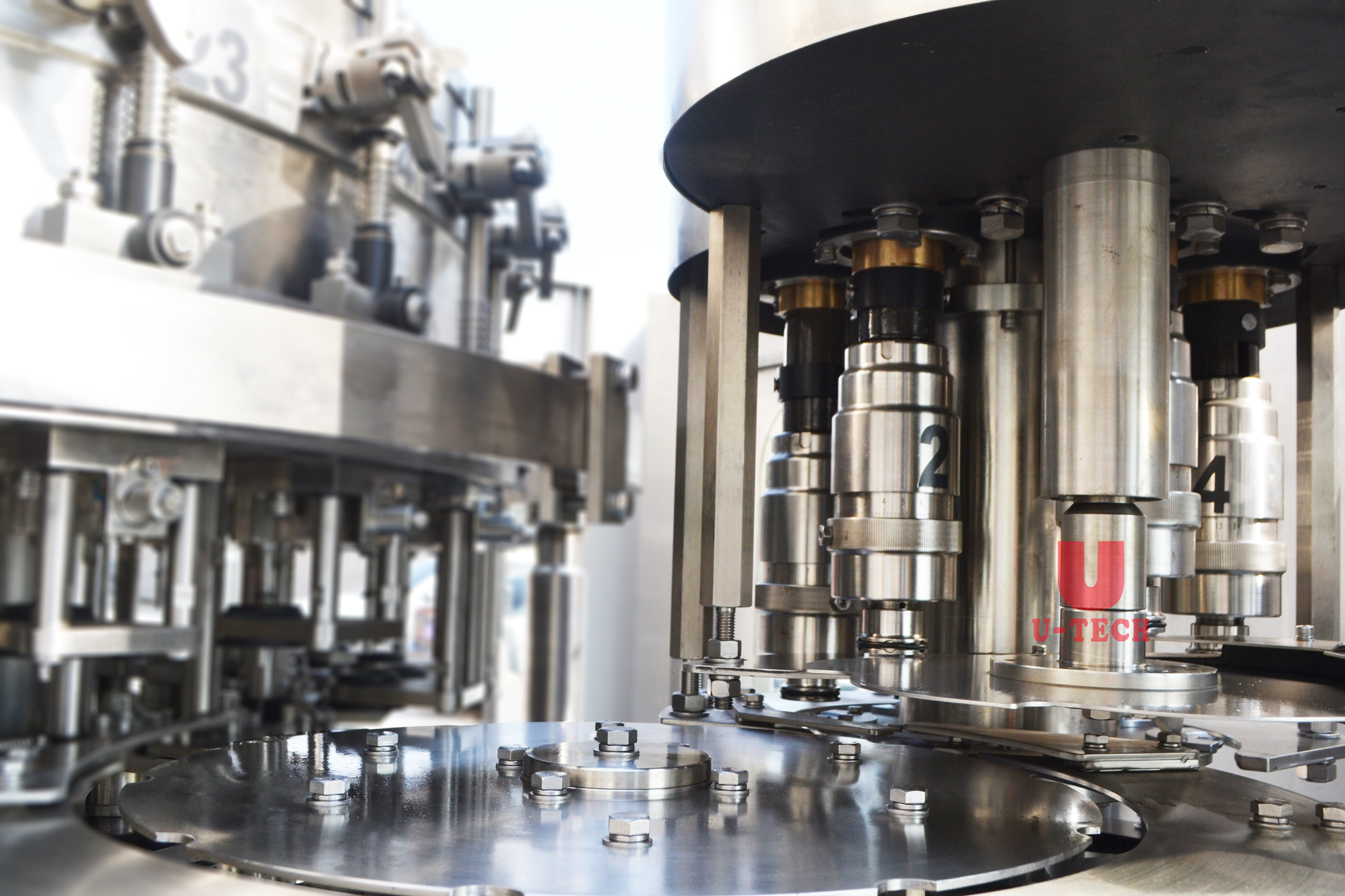

Capping heads
6
suitable bottle
PET bottle,plastic bottle
Diameter ofbottle
φ55-110mm
Height of bottle
150-310mm
Weight
5000kg
Main motor power
2.2kw
Machine Details
Control System
S/N
Name
Brand
Country
1
Main motor
ABB
Switzerland
2
 Inverter
MITSUBISHI
Japan
3
PLC
OMRON
Japan
4
Touch screen
MITSUBISHI
Japan
5
Contactor
SCHNEIDER
France
6
Thermo- relay
SCHNEIDER
France
7
Air-break switch
SCHNEIDER
France
8
Proximity switch
TURCK
USA
9
Photoelectric switch
BANNER
USA
10
Air circuit system
SMC
Japan
11
Water pump
Southern
China
Complete Filling Line

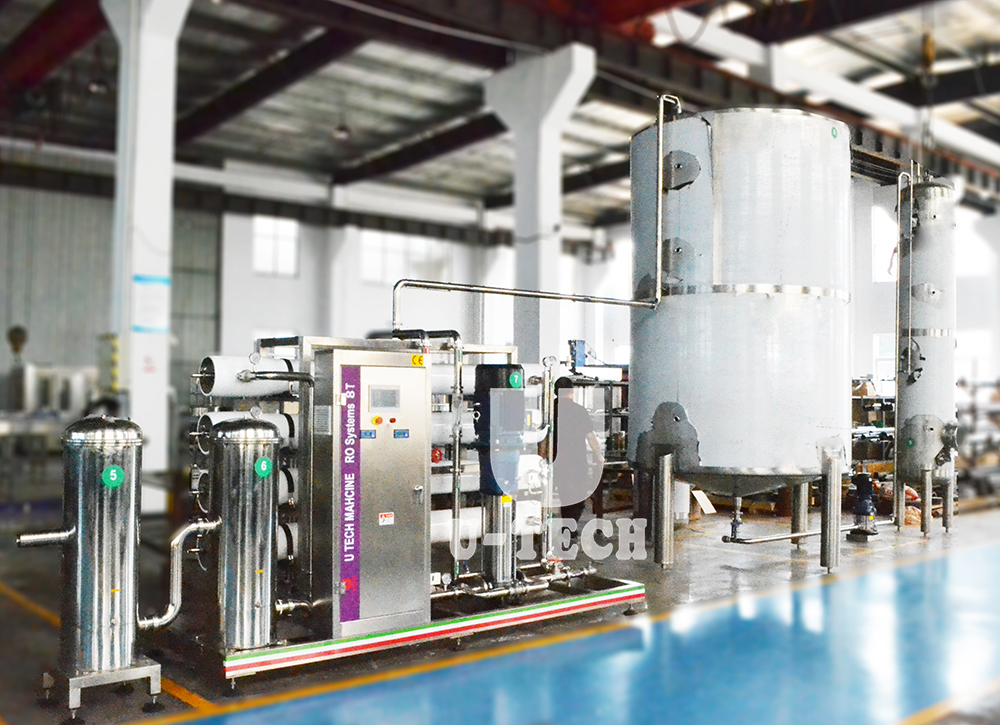

Water Treatment System

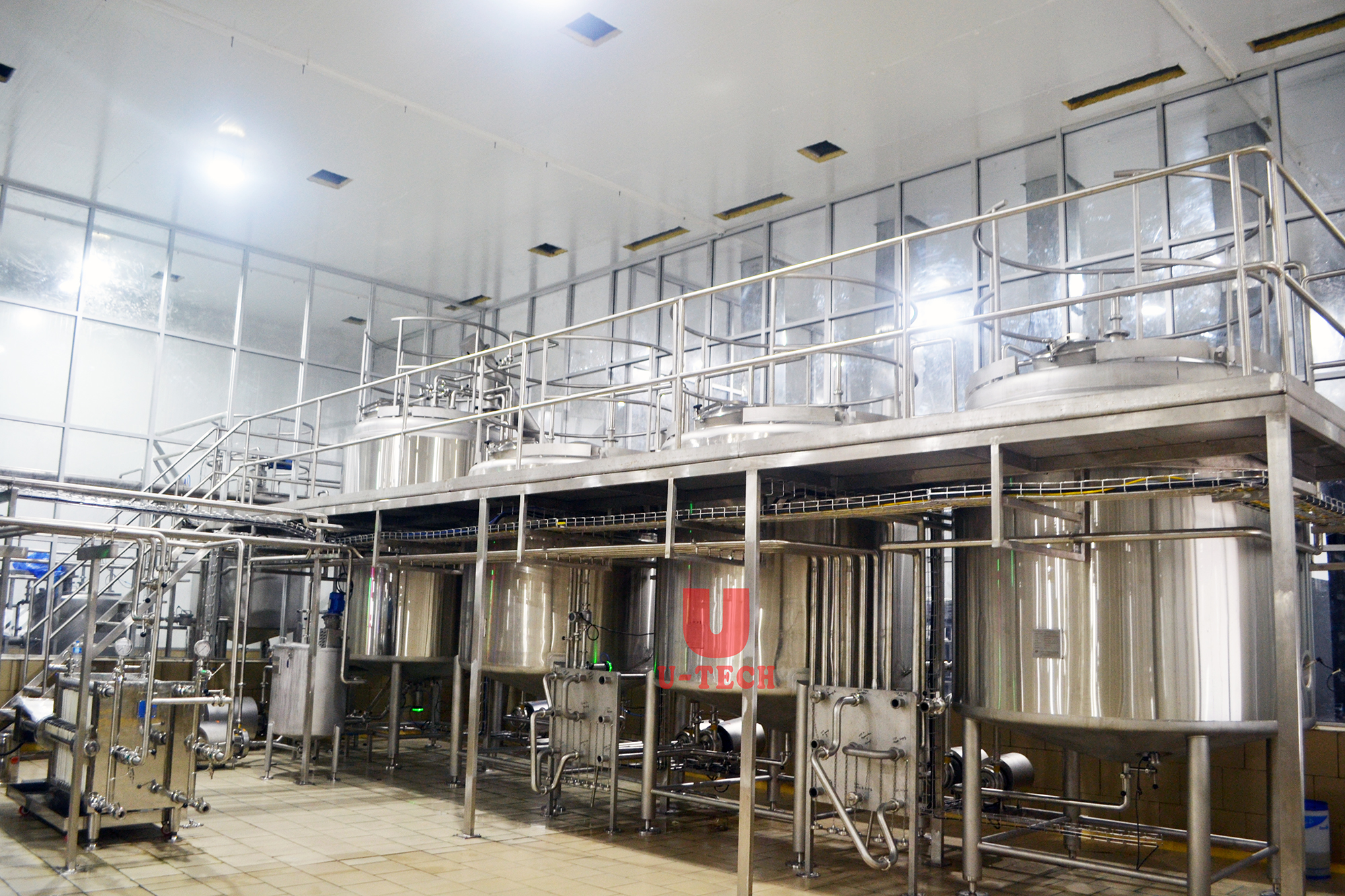

Preparation system

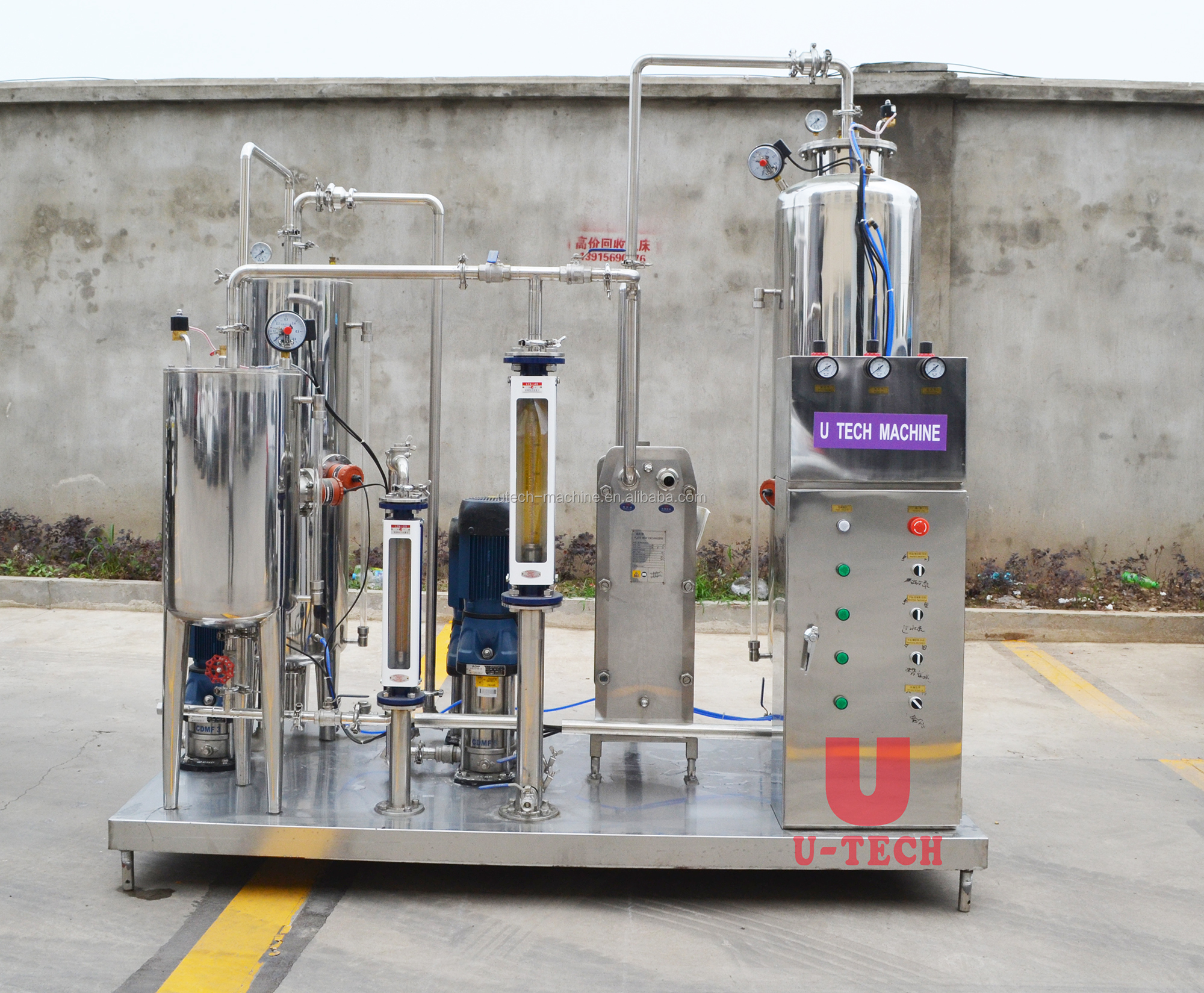

Drink mixer

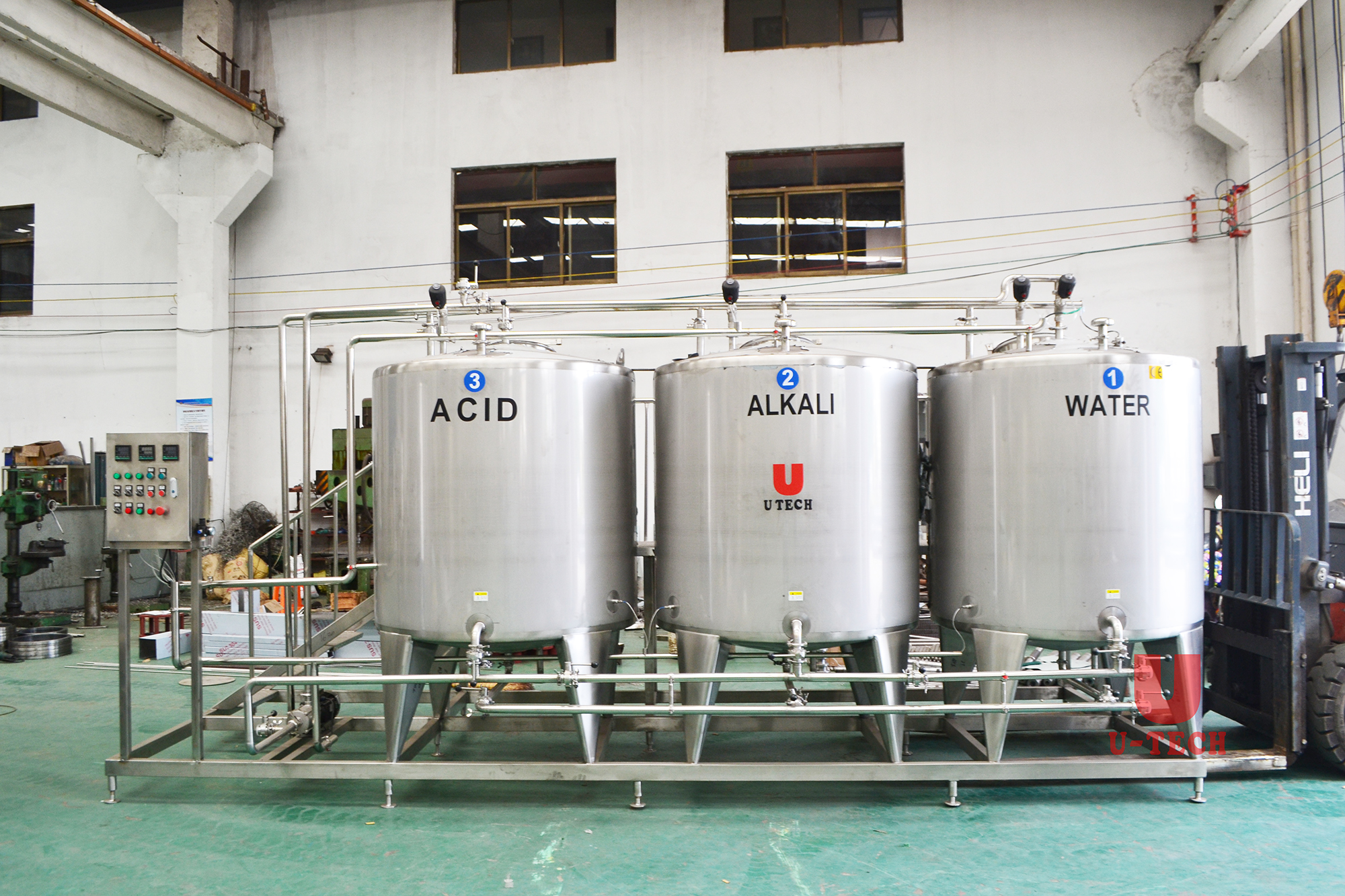

CIP System
Automatic Bottle Blowing Machine
Carbonated drink filling machine

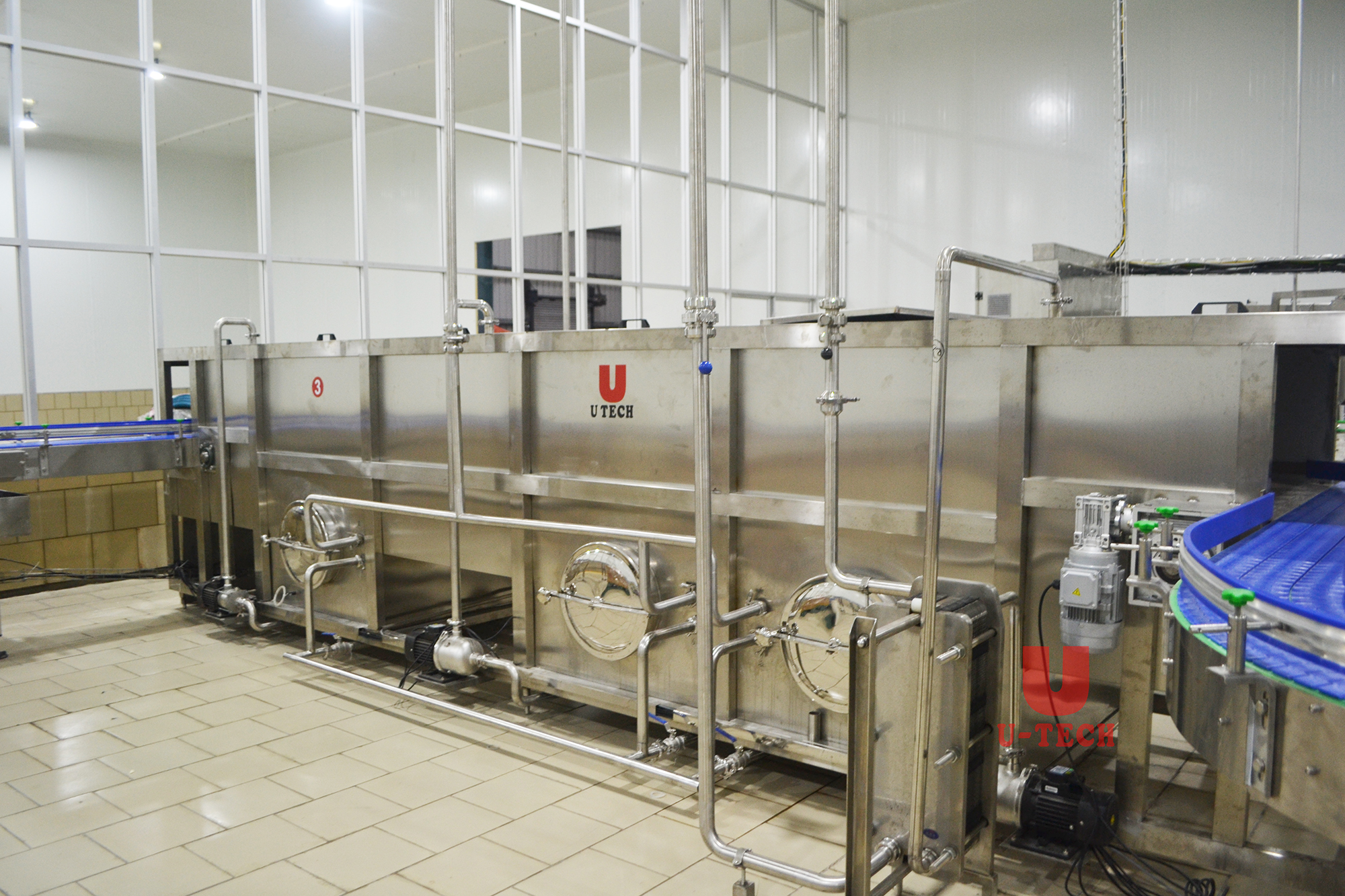

Warm machine
Dryer
Laser printer
Sleeve Labeling Machine
Shrink Packing Machine
