Automatic Servo Piston Lubricating Motor Engine Lube Oil 20L Drum Filling Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Introduction

This UT series automatic edible food oil filling machine for bottle adopts serve ball-screw system to drive the piston cylinder.It's widely used in Food, Chemical, Medical, Cosmetics, Agrochemical industry, applicable for filling liquid, especially for high viscosity material and foamy liquid, such as: Oil, Sauce, Ketchup, Honey, Shampoo, Lotion Lubricant oil, etc. And it is suitable for barrels, jars and bottles of different sizes, shapes and volumes.

Technical parameter

Model	UT-2
Forming and sealing speed	10ctns/min
Carton storage quantity	100pcs (1000mm)
Carton size	L200-450×W150-400×H100-400mm
Power supply	110/220V, 50/60Hz, 1 Phase
Power	200W
Applicable tape	48/60/75mm (Choose one type)
Machine size	L2000×W1900×H1450mm
Machine weight	450kg

Details Images

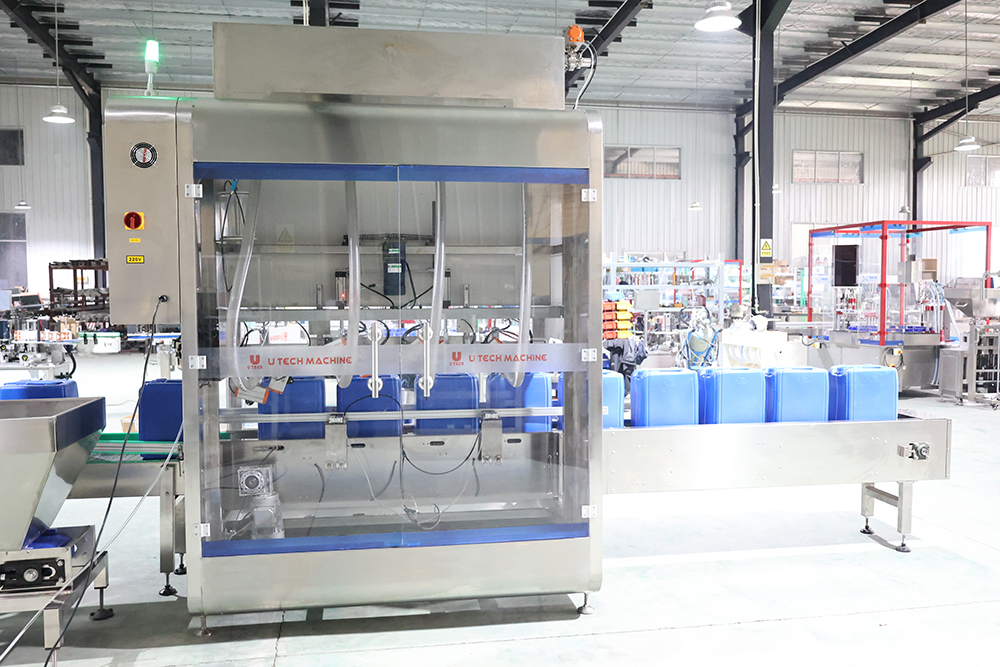

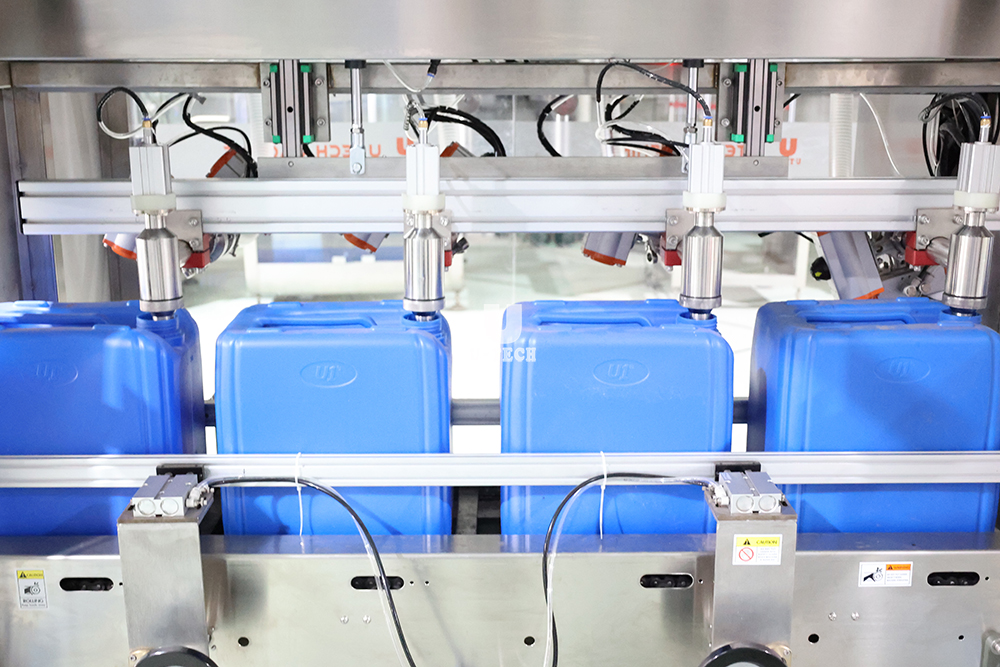

Filling part

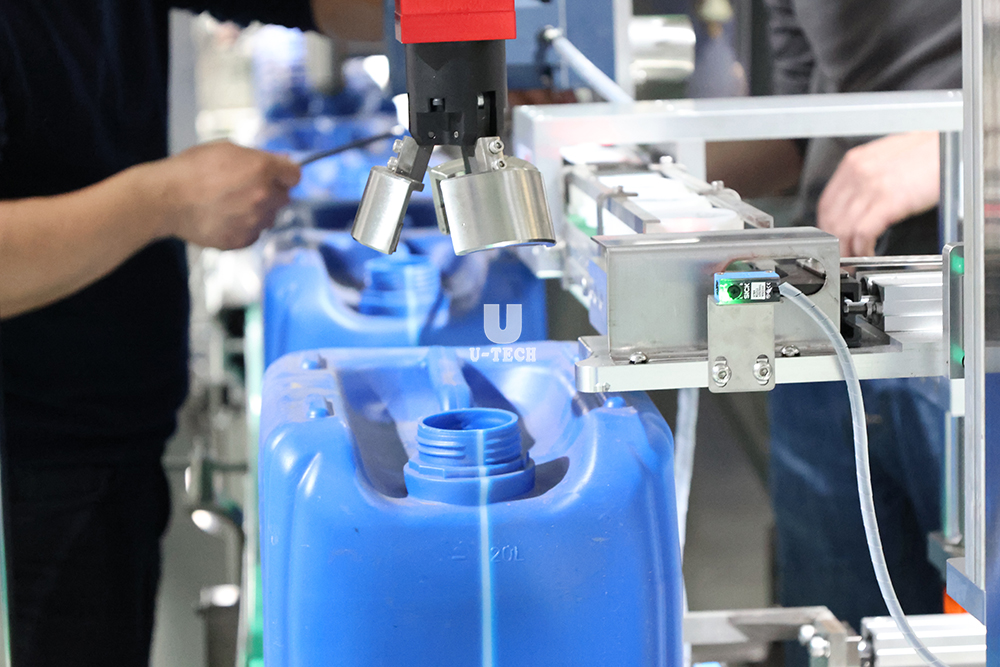

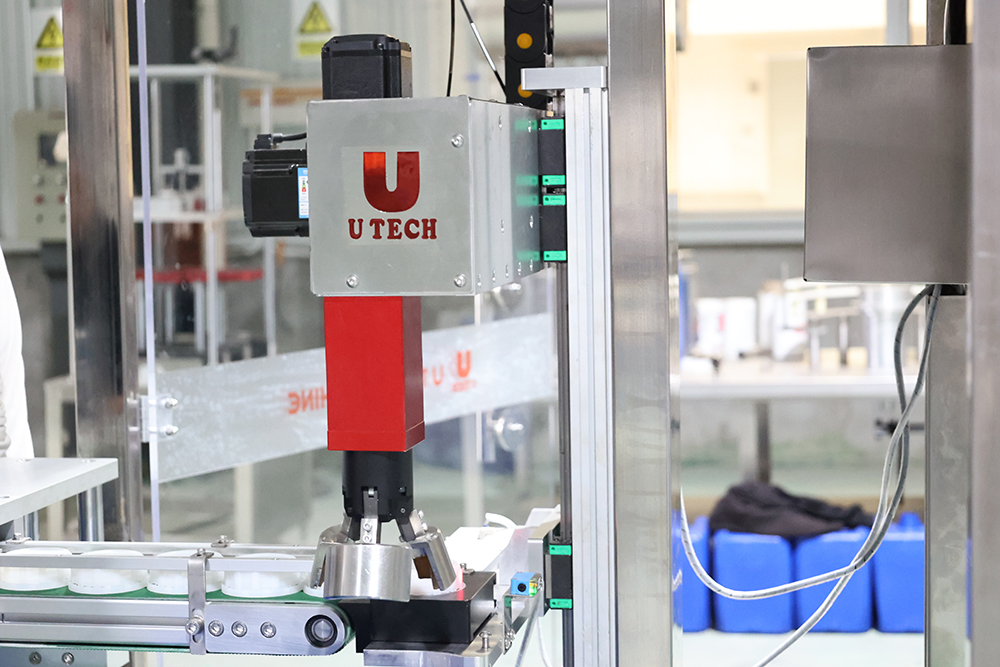

Capping part

Adhesive labeling machine
