Product Description

Introduction

 The BST series extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines, chemical products, pesticides, detergents, etc with material of PE,PP,PVC from 5ml to 20L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.

Application

Technical parameter

Model	BST80
Max. Product Volume	(L)	30L
Dry cycle	(pc/h)	700
Screw Diameter	(mm)	65
Screw L/D ratio	(L/D)	25
Screw drive power	(KW)	15
Screw heating capacity	(KW)	5.04~6.7
No. of heating zone	(ZONE)	3
Max. Output of HDPE	(Kg/hr)	60
Oil pump drive power	(KW)	7.5
Clamping force	(KN)	60
Platen distance	(mm)	148~508
Mold moving stroke	(mm)	380
Max. Size of Mold(W*H)	(mm)	370*390
Max. Die diameter	(mm)	145
Die heat capacity	(KW)	2.5
No. of heating zone	(ZONE)	3
Central distance of Double head	(mm)	160,180
Blowing pressure	(Mpa)	0.6
Air volume	(M3/MIN)	0.4
Cooling water pressure	(Mpa)	0.2~0.3
Water consumption	(L/MIN)	50
Size of machine ( LWH)	(m)	3.431.772.58
Weight of machine	(TON)	4

Features

Electrical control system: The machine works under the PLC control(made by the
Mitsubishi Co. of Japan) via a man-and-machine interface(displayed in Chinese version or in English version).The machine is equipped with a modularized temperature controller and operated through a touch-type coloure screen.All the production data can be set up,modified,searched and monitored and the machine trouble diagnosis can be completed both on the touch-type screen.The electric elements work on the non-contact working principle,thus being durable in service life.

Hydraulic system:The machine works under the proportional pressure control. The machine is equipped with hydraulic valves and hydraulic pumps imported from world-famous companies,thus assuring consistent and reliable working performance.

Plasticizing system:The high performance screw used on the machine assures thorough and homogeneous plasticization and mixing of plastics.

Speed regulation system:Frequency-converter-controlled speed regulator + speed change gearbox with hardened alloy steel gears.Speed regulation can be completed smoothly with less noise generated.Therefore the machine is durable in service life.

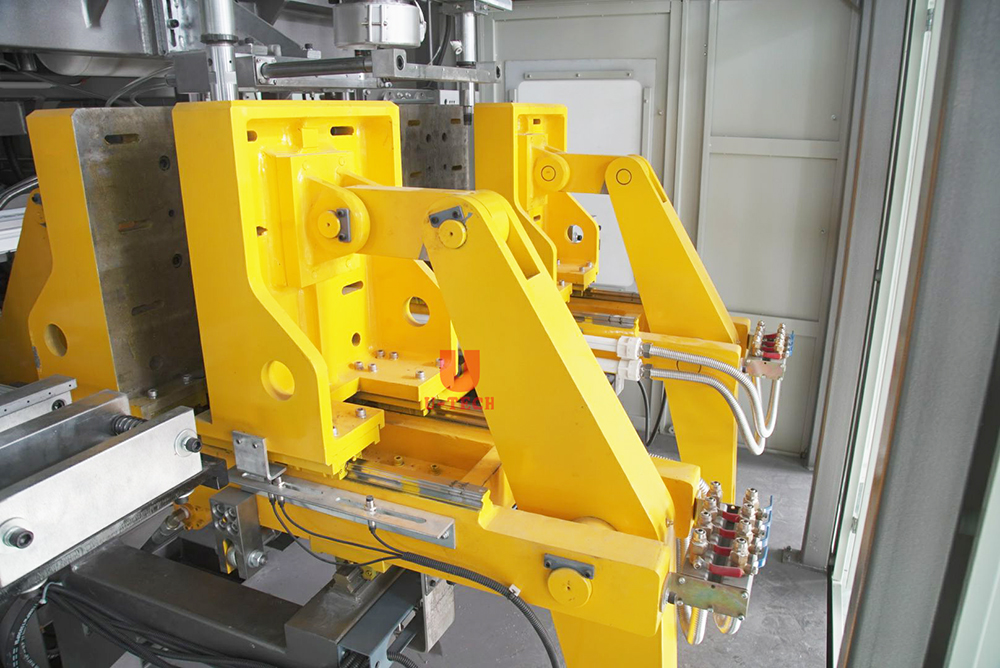

Mould opening,closing & moving system:A big 3-point central beam mechanism for opening & closing the mould halves and locking the mould assures balanced distribution of locking force and is free of any deformation after long-time operation.The mould is horizontally moved on linear spherical ball guideways at high traveling accuracy and rapid speed and with less resistance.

Air-bolowing needle bracket:The air-blowing needle bracket is of solid L-square design.The sturdy bracket assures smoothness of the product cut.

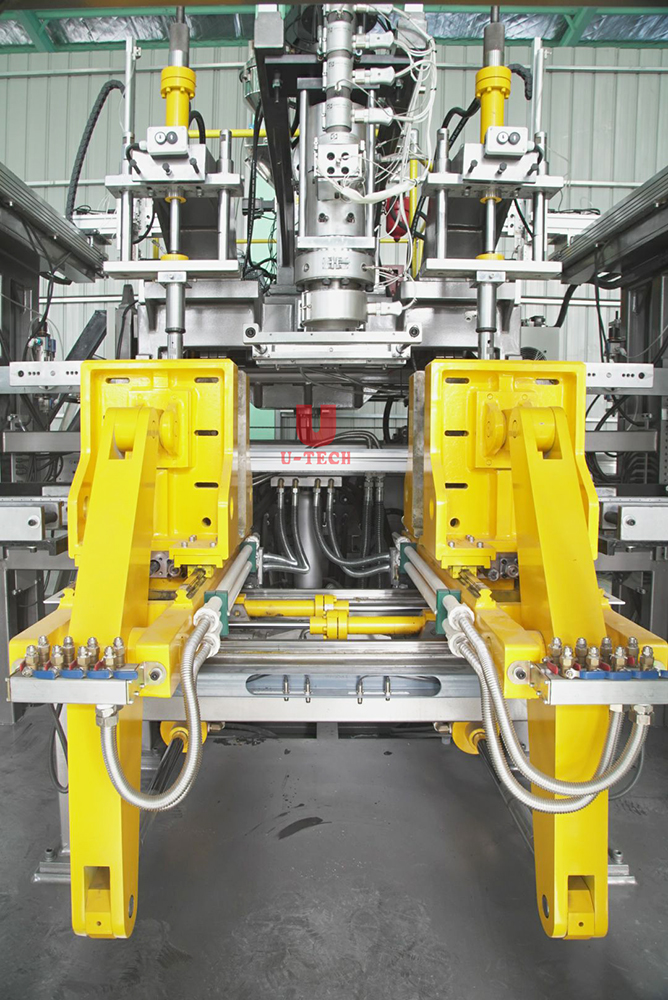

Details Images

Related Products

 Bottle neck cutting and trimming machine

 Leak tester

 Empty bottle bag packing machine

FAQ

Q1:Do you have any reference project?
  >> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.

Q2:What's your guarantee or the warranty of the quality if we buy your machines?    >>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.

Q3: Do you provide customized service?
  >> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.

Q4:When can I get my machine after I paid?
  >> A4:We will deliver the machines on time as the date we agreed both side.

Q5:How can I install my machine when it arrives?
  >> A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your
technicians how to run the machines.
