Automatic Gas Beverage Soft Drink Sparking Soda Water Mixer Co2 Mixing Machine

Share to:

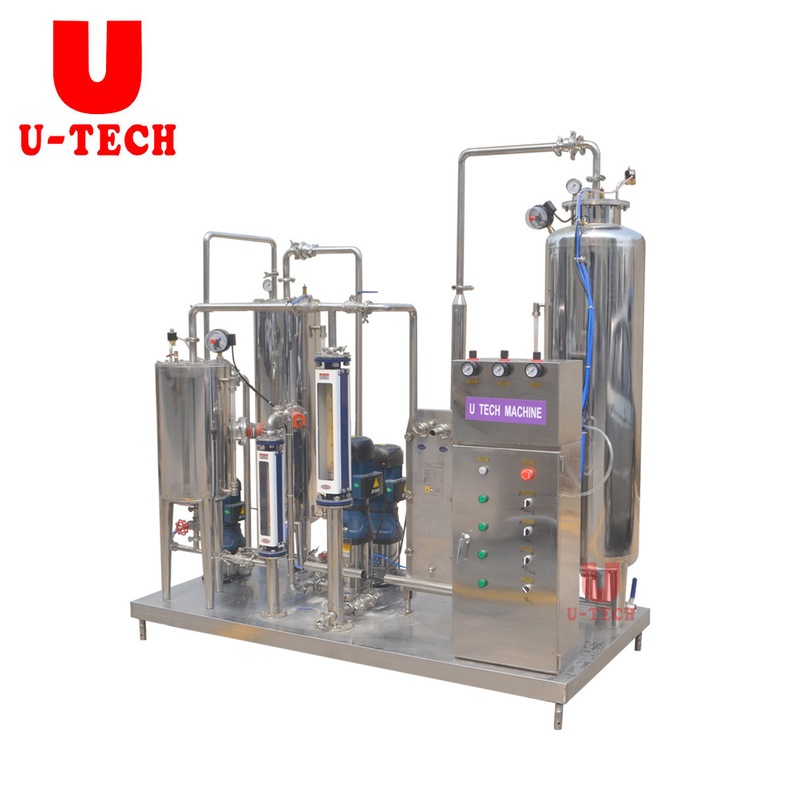

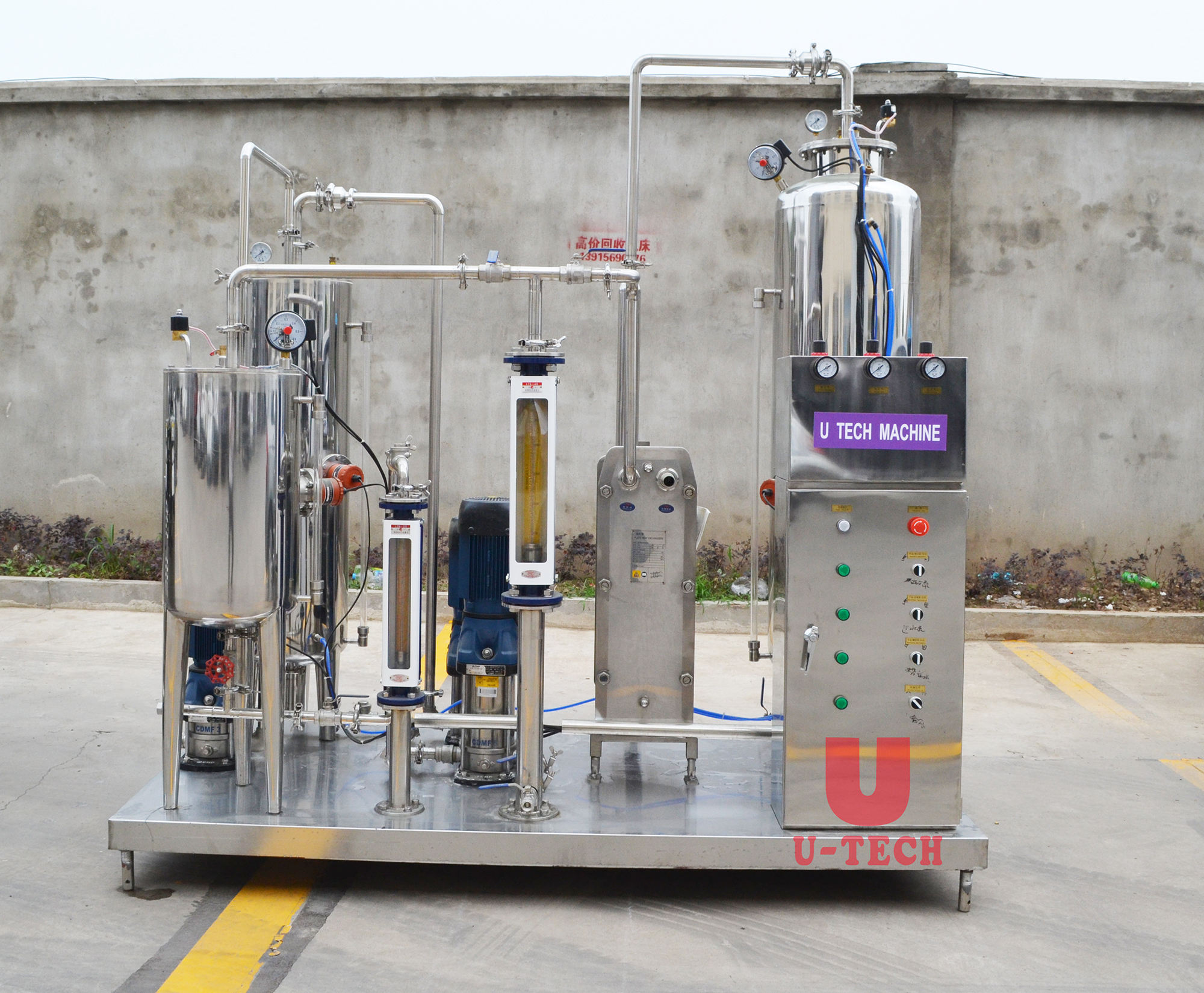

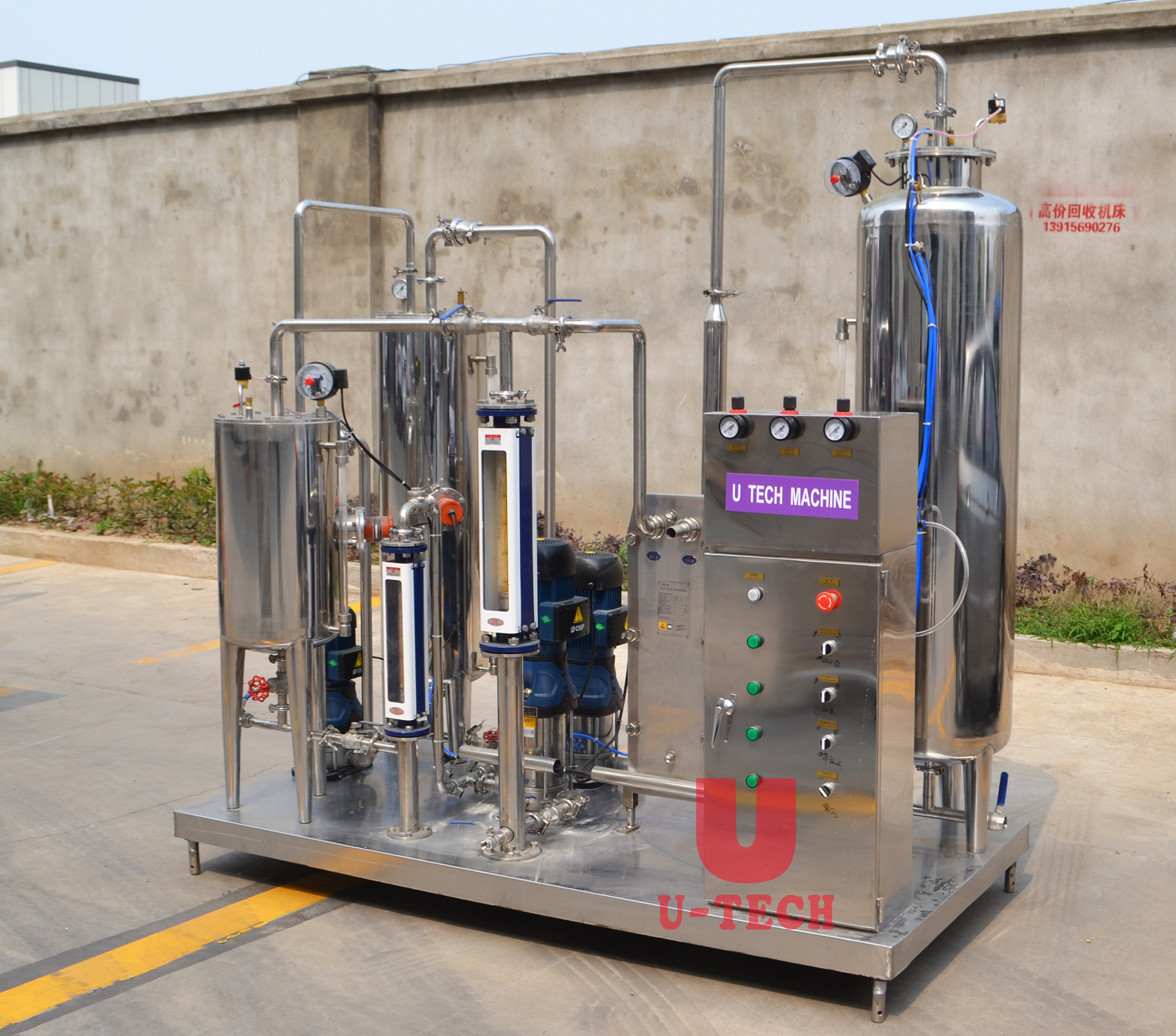

Automatic Gas Beverage Soft Drink Sparking Soda Water Mixer Co2 Mixing Machine

Availability:

Quantity:



Inquire Add to Basket

Brand:
U TECH

Product Description

Product Intruduction

 The beverage mixer is designed to improve the proportion of water, syrup and carbon dioxide accurately and elaborately. It adopts foreign advanced technology static mixer to reduce water layer, increase carbonation time and ensure beverage mixing effect.Carbon dioxide reflux deoxidization is used to save carbon dioxide and achieve the purpose of deoxidization. High quality water pump and electrical appliances constitute a perfect automatic control system It has the advantages of coordinated action,beautiful appearance, convenient cleaning and high degree of automation. It is suitable for mixing various types of drinks. Such as soft and hard drinks such as soda, juice and cola.


Detailed Product Description:

Technical parameter

Model	UT-1500A	UT-3500A	UT-3000	UT-5000	UT-7000	UT-10000	UT-15000
Capacity(L/hr.)	1000-1500	2000-3500	2000-3000	4000-6000	8000-9000	10000-12000	12000-16000
Gas content in beverage(GV)	1.5-2.5	1.5-2.5	>3.0	>3.0	>3.5	>3.5	>3.5
Mixing range(Syrup-water)	1:3-1:6				1:3-1:6
Tempeature in chilled water	0-5ºC				0-4ºC
Water deoxidization method	Deoxidized by CO2				Deoxidized by vacuum system
Working pressure of pre-carbination tank and syrup tank(Mpa)	0.05-0.08				Pre-carbonation tank:-0.08~-0.06 Syrup tank:0.05~0.08
Working pressure in storage tank(Mpa)	0.2-0.5				0.2-0.5
Power supply(kw)	1.1	1.5	3.70	5.2	8.5	11	15
Overall dimension(mm)	9007002000	11009002100	160012002100	200015002200	320021002500	380022002750	430022002550
Weight(kg)	500	650	1200	1800	2800	4800	6500
