Product Introduction

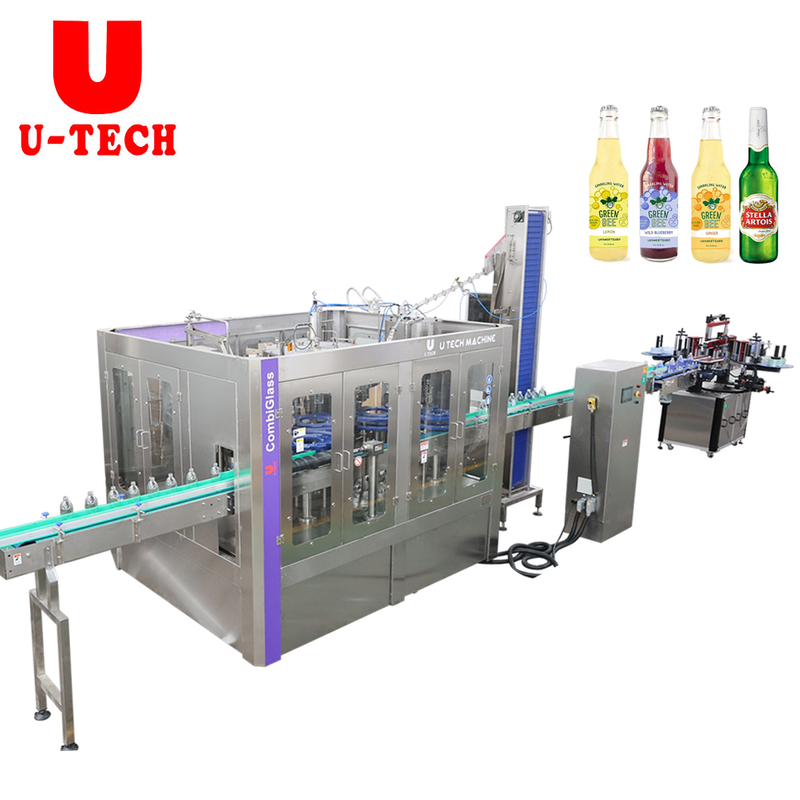

This glass bottle filling machine adopts advanced SIEMENS programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.
Technical Parameters
Model | Washing | Filling | Capping | Capacity(b/h)500ml | Motor power | Overall dimension(mm) |
| heads | heads | heads | (KW) |
| BFGF14-12-5 | 14 | 12 | 5 | 2000bph | 1.5KW | 2100x1400x2500 |
| BFGF18-18-6 | 18 | 18 | 5 | 3000bph | 2.2KW | 2460x1720x2650 |
| BFGF24-24-6 | 24 | 24 | 6 | 4000bph | 3KW | 3100x2100x2650 |
| BFGF32-32-10 | 32 | 32 | 10 | 6000bph | 4KW | 3500x2500x2650 |
| BFGF40-40-10 | 40 | 40 | 10 | 8000bph | 7.5KW | 4600x1800x2650 |
Machine Details

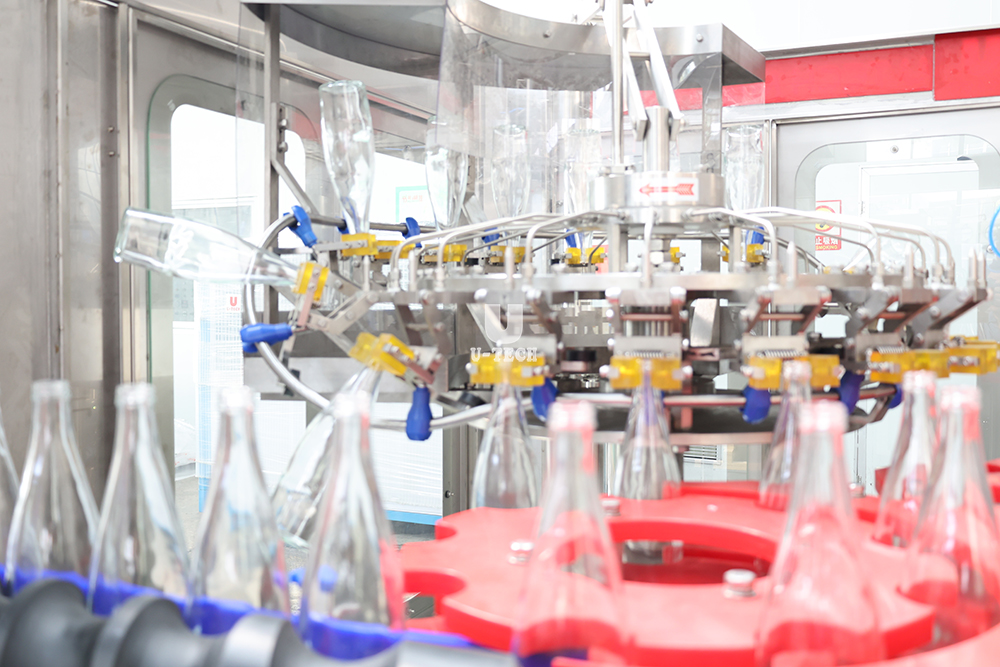

Washing part
Into bottle way is air conveyor direct connection with bottle dial.All 304/316 stainless steel washer, water injection design, water level balance, cleaner and less water.
All 304/316 stainless steel gripper with plastic pad to ensure the smallest possibility of bottle collision to protect the bottle is not easy to break.
All 304/316 stainless steel washing pump make the machine more durable.

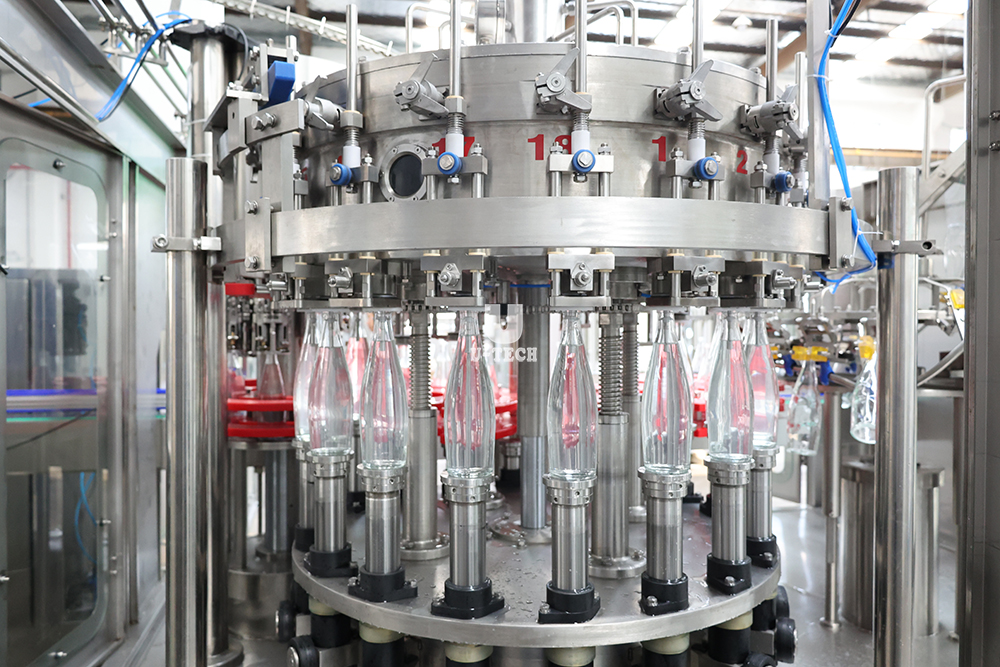

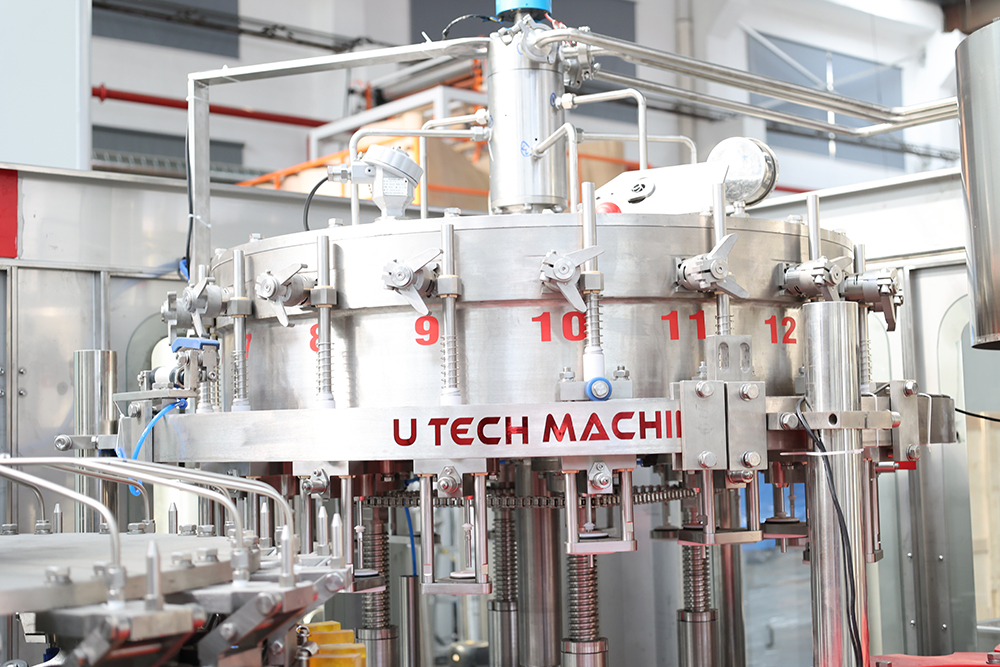

Filling part
No Bottle No Filling. All 304/316 stainless steel filling pump.
All 304/316 Stainless steel high precision filling nozzle.
All 304/316 stainless steel contact parts and liquid tank, fine polish, no death corner, easy to clean.

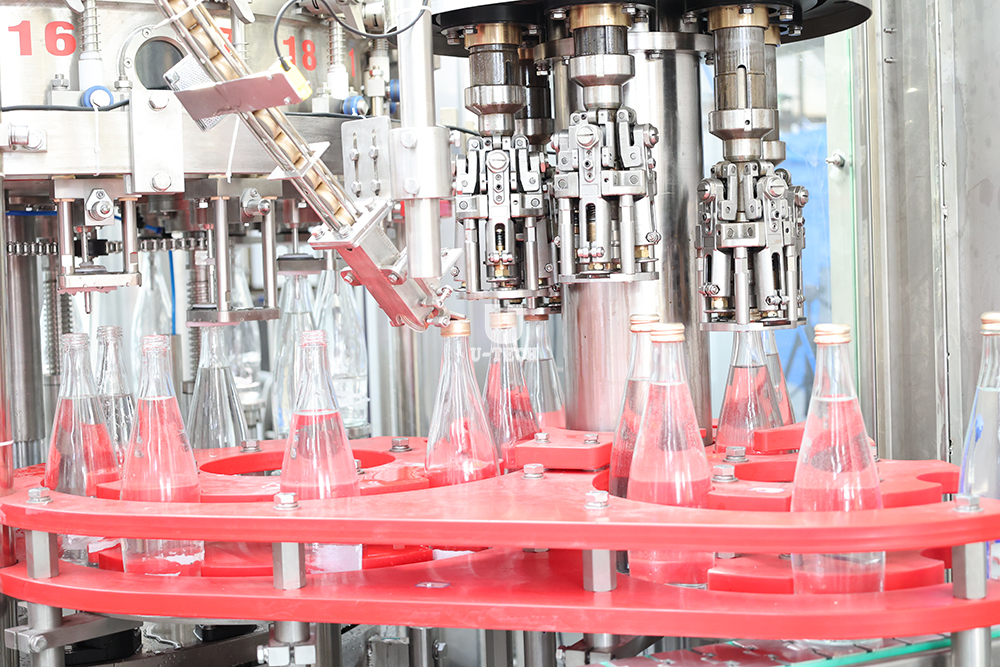

Capping part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping. All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
Capping effect is stable and reliable
Features

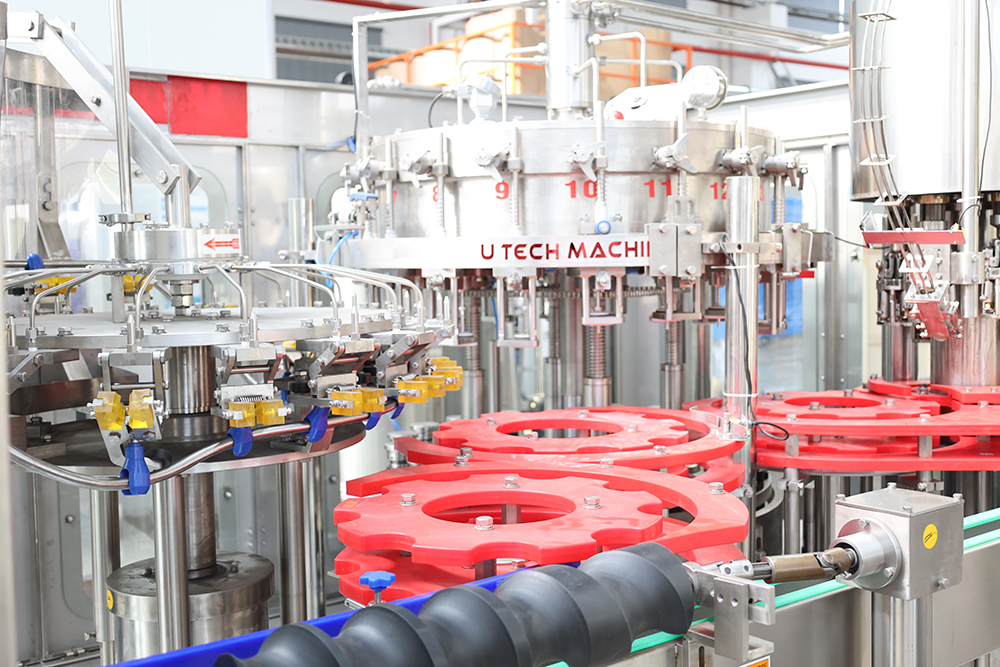

1. Rinsing empty bottle, filling, and capping functions are integrated in one system, fully automatic synchronized working.Bottle travels on neck to neck from in-feed till out-feed resulting scratch free movement of bottle.
2. Pressure or vacuum filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.
3. No Bottle No Filling, no caps no capping, no caps auto stops.When bottle jam auto stop, machine accident auto stop.Open the window when machine running, machine auto paused.Heavy duty stainless steel filling pump & rinsing pump.Food grade 316L or 304stainless steel contact parts, smooth & fine Polish, no dead angles.
