Automatic Complete Plant A To Z Tin Canning Line Aluminium Beer Can Filling Machine

Availability:

Quantity:



Inquire Add to Basket

Brand:
U TECH

Product Description

Product Introduction

1.Introduction of Wine Drink Wine Drink is one of the fastest growing beverage segments worldwide, with healthier lifestyles,urbanisation and improved retail infrastructure all driving this development.

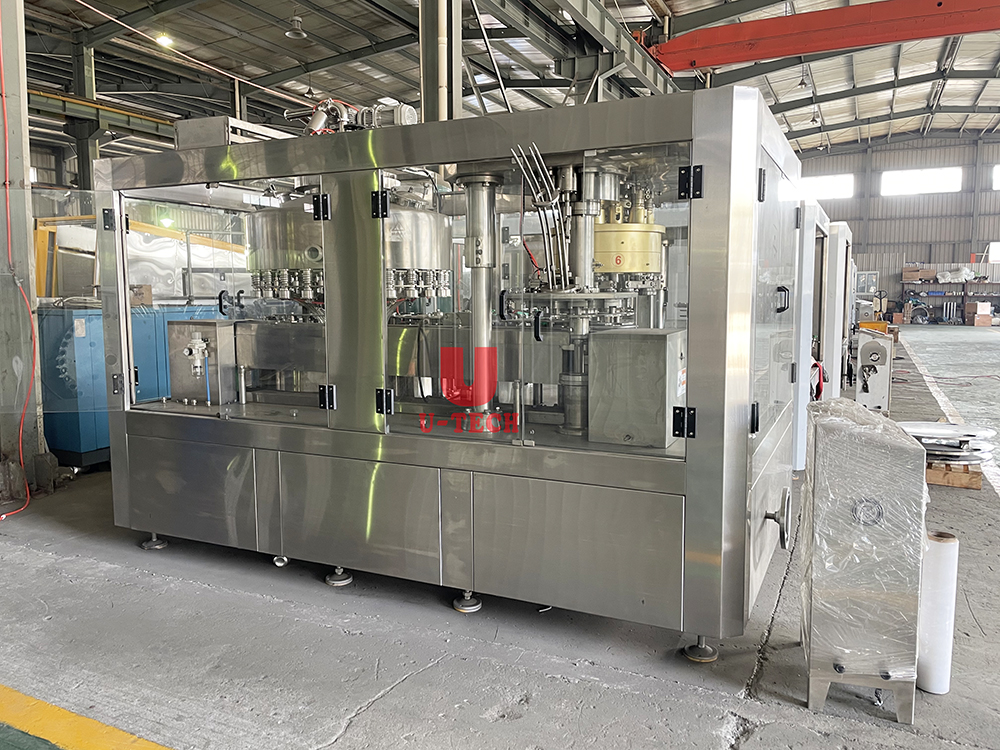

2. Introduction of Wine drink cans filling machine The machine is composed by the filling and capping parts which produced by abroad introduced advanced technique. The performance and structure both are up to international level. The whole machine joins the mechanical, electric, and pneumatic ways to control.
The auto control liquid level equipment fixed in the filler machine keeps the stable of the liquid level.

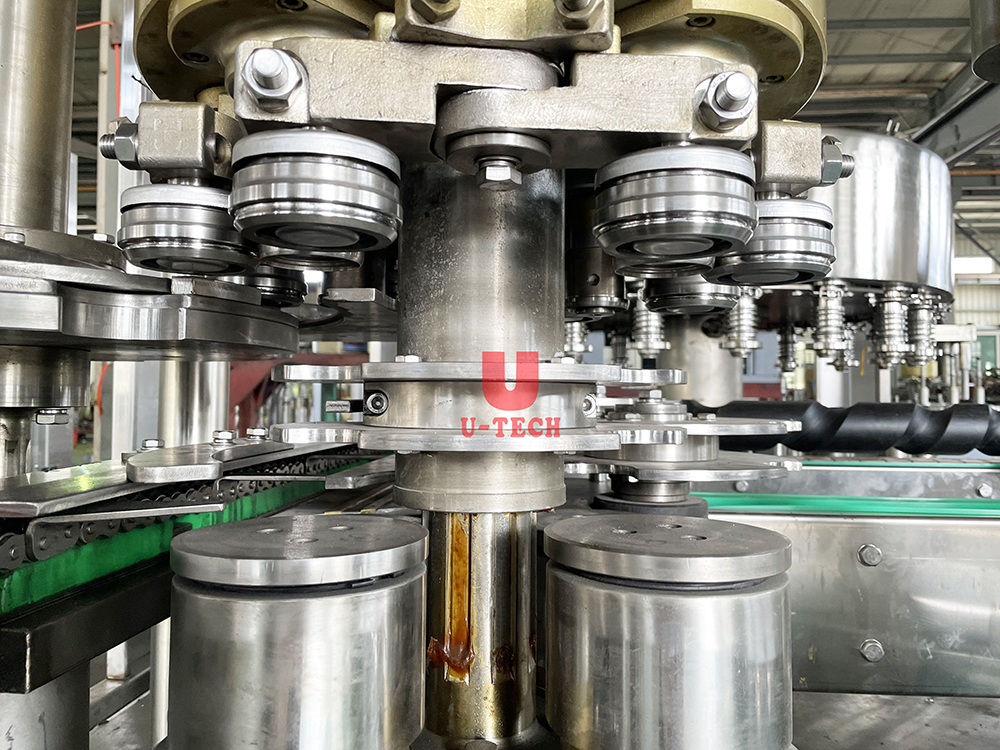

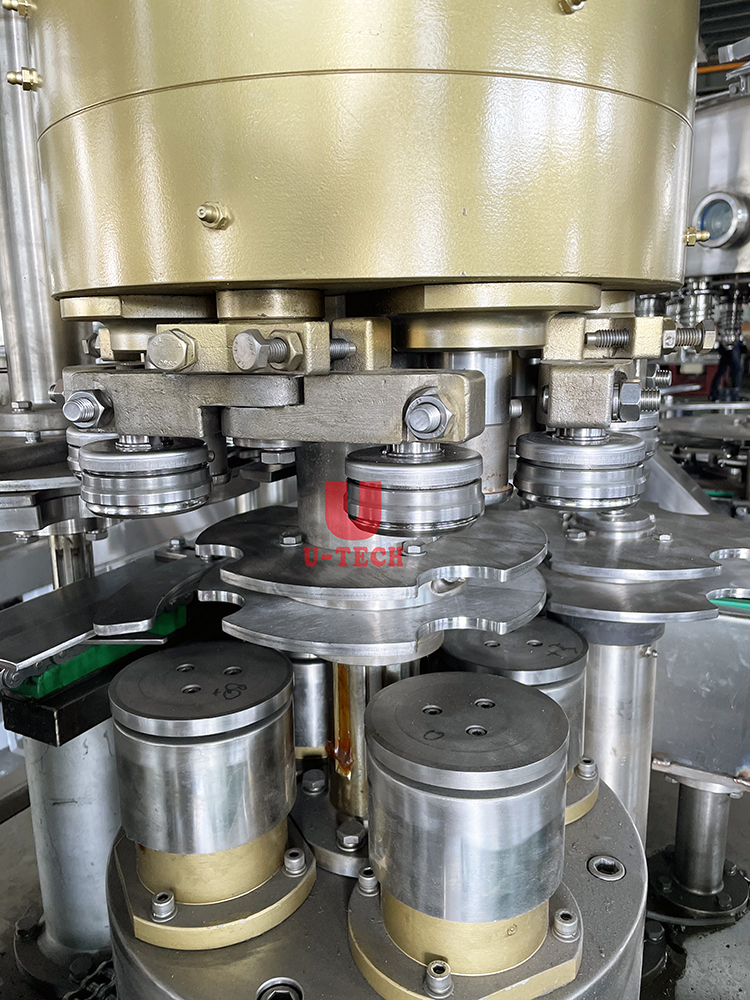

The row-rolling completes the capping by the rotary type equipment: a can-a cap, no cans-no caps.
They will automatically stop when no cans and the cans crushed. The higher standard of roboticized is fit for all kinds of pull-tab cans.

Technical Parameters

Model	BST12-1	BST16-4	BST24-6	BST32-8
Capacity	1200-1500cans/hour	5000-6000 CPH	7000-9000 CPH	10000-12000 CPH
Can Volume	200ml-1000ml	200ml-1000ml	200ml-1000ml	200ml-1000ml
Can diameater	50-70mm	50-70mm	50-70mm	50-70mm
Bottle high	120-170mm	120-170mm	120-170mm	120-170mm
Machine power	1.5KW	2.2KW	3.7KW	5.5KW
Machine size	175x120x195CM	305x175x220CM	340X195X220CM	350x235x225CM

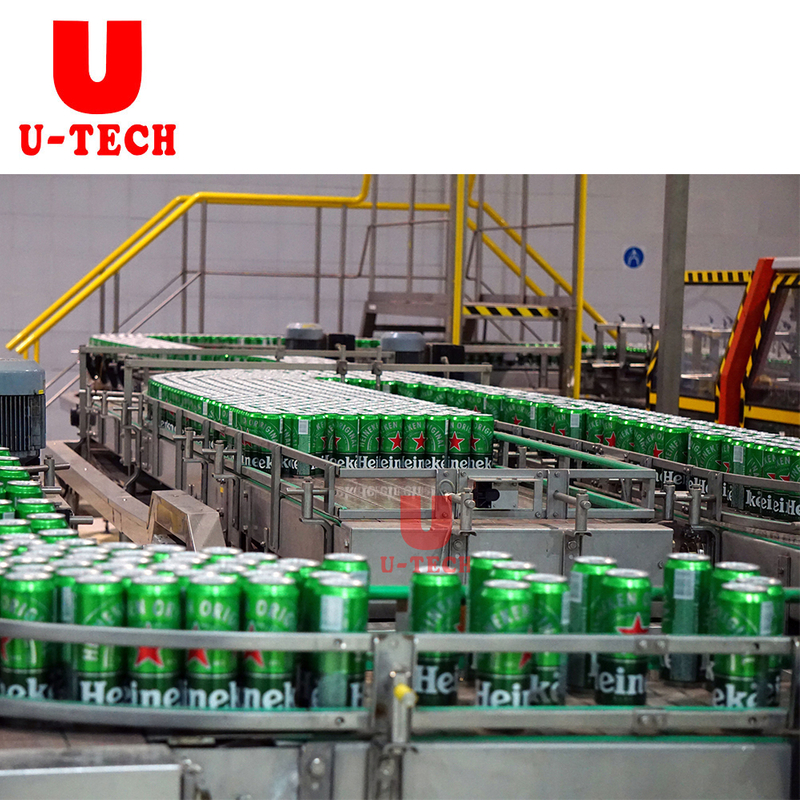

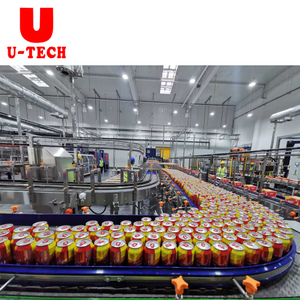

Production line flow

water treatment system

beverage preparation system

CO2 mixer

CIP

Can Depalletizer

Spray washer

Can filling capping machine

warming machine

can dryer

liquid level detector

internal pressure detector

sleeve labeling machine

coding machine

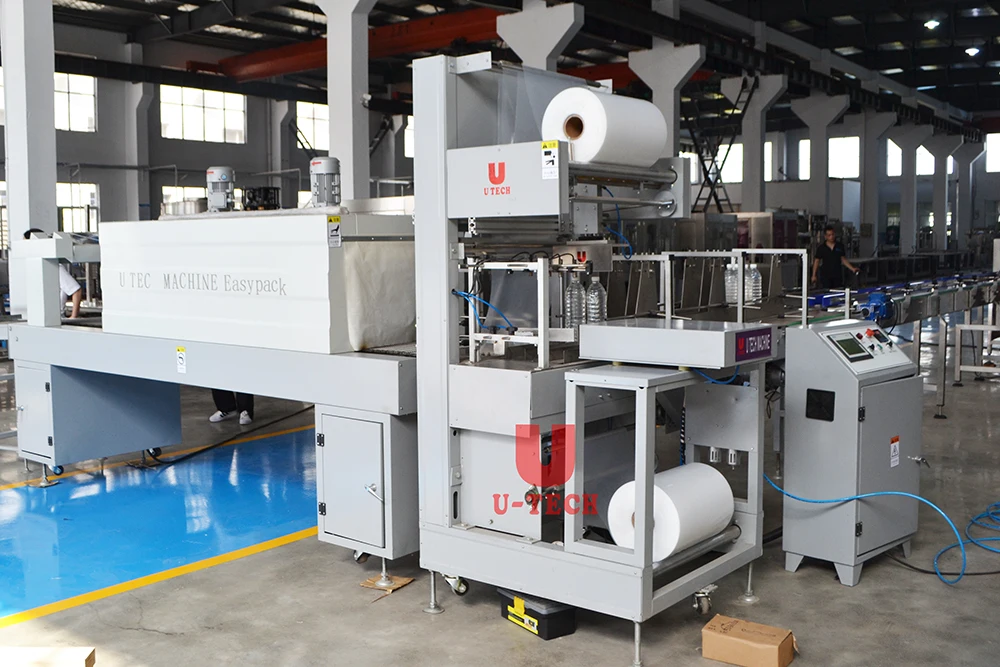

shrink packing machine

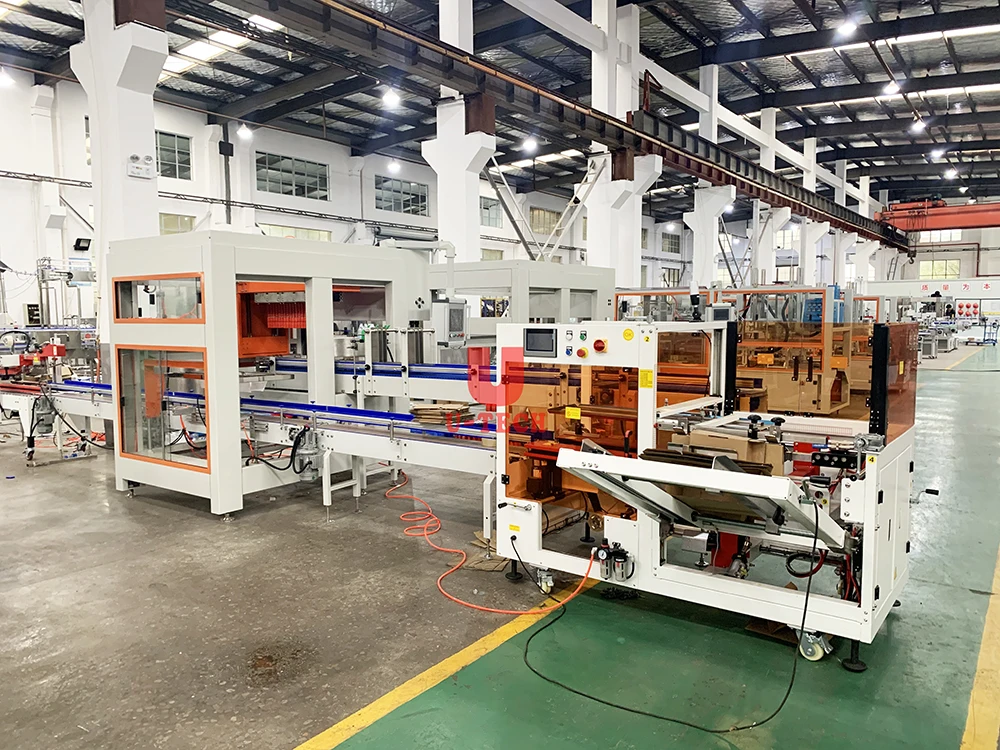

case packer

Control System

S/N	Name	Brand	country
1	Main motor	ABB	Switzerland
2	Inverter	MITSUBISHI	Japan
3	PLC	OMRON	Japan
4	Touch screen	MITSUBISHI	Japan
5	Contactor	SCHNEIDER	France
6	Thermo- relay	SCHNEIDER	France
7	Air-break switch	SCHNEIDER	France
8	Proximity switch	TURCK	USA
9	Photoelectric switch	BANNER	USA
10	Air circuit system	SMC	Japan
11	Water pump	Southern	China
