Automatic 1L 2L 3L 5L PP PE HDPE Plastic Bottle Oil Pot Toys Jerry Can Extrusion Blow Molding Machine Price

Share to:

Automatic 1L 2L 3L 5L PP PE HDPE Plastic Bottle Oil Pot Toys Jerry Can Extrusion Blow Molding Machine Price

Availability:

Quantity:



Inquire Add to Basket

Brand:
U TECH

Product Description

Product Introduction

 Extrusion blow molding machine is a combination of extruder, blow molding machine and mold clamping mechanism. It is composed of extruder and parison die, inflation device, mold clamping mechanism, parison thickness control system and transmission mechanism. The parison die is one of the important parts that determine the quality of blow-molded products, and there are usually side feed die and central feed die. When large-scale products are blow-molded, the storage cylinder type billet die is often used. The storage tank has a minimum volume of 1kg and a maximum volume of 240kg. The parison thickness control device is used to control the wall thickness of the parison. The control points can reach up to 128 points, generally 20-30 points. The extrusion blow molding machine can produce hollow products with a volume ranging from 2.5ml to 104l.

Sample

Technical Parameters

Specifications	Units	BST65 Series	BST70 Series
Material		PE,PP,PV,PVC,PA	PE,PP,PV,PVC,PA
Max Container capacity	L	2	5
Number of die head	set	1,2,3,4	1,2,3,4
Output (dry cycle)	Pc/hr	1500	1000
Machine dimension(LxWxH)	M	2.8x1.7x2.5	3.1x1.8x2.6
Total weight	ton	4	4.5
Clamping force	KN	56	68
Platen opening stroke	mm	150-500	150-500
Platen size	mm	320x360	320x360
Move mould stroke	mm	420	420
Min mould thickness	mm	205	205
Motoe power of oil pump	KW	7.5/11	11/15
Max pressure	Mpa	10	12
Air pressure	Mpa	0.6	0.7
Air consumption	M3/min	0.4	0.6
Average engergy consumption	KW	12	17
Screw diamater	mm	50	65
Screw L/D ratio	L/D	24	24
Plasticing capacity	Kg/hr	40	70
Number of heating zone	zone	3	3
Extruder heating power	KW	10.8	13.8
Extruder driving power	KW	11	15
Number of heating zone	Zone	2	3
Power of die heating	KW	4.2	5.7
Max die pin heating	mm	75	135
Center distance of double die	mm	130	160
Center distance of tri-die	mm	90	110
Center distance of tetra-dia	mm	75	85

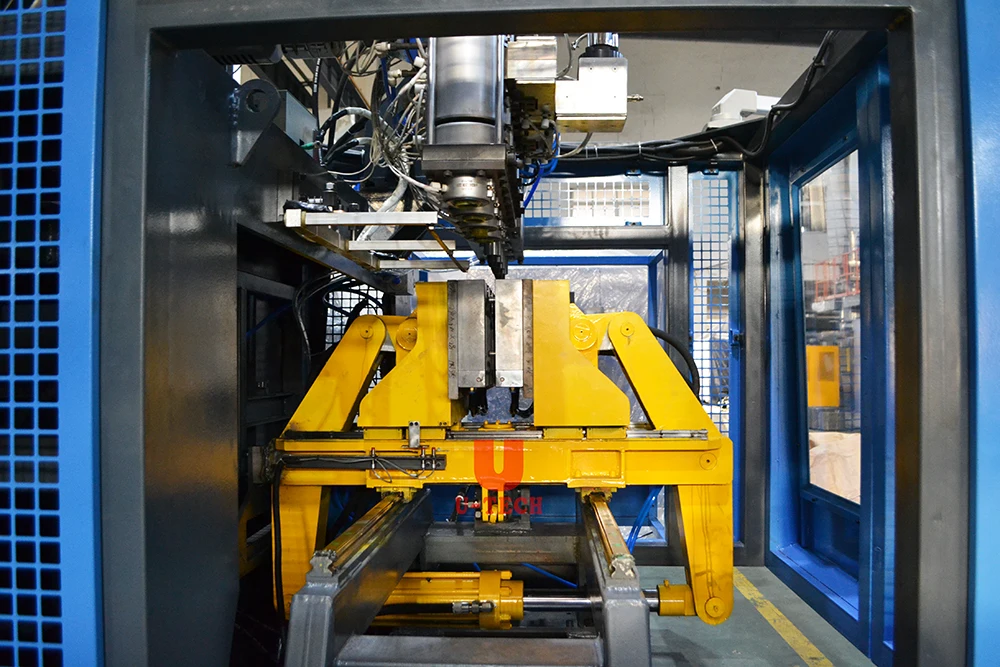

Details Images

Packing &Shipping

Certifications

FAQ

Q1:Do you have any reference project?   >> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.

Q2:What's your guarantee or the warranty of the quality if we buy your machines?
   >>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.

Q3: Do you provide customized service?
   >> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.

Q4:When can I get my machine after I paid?
   >> A4:We will deliver the machines on time as the date we agreed both side.

Q5:How can I install my machine when it arrives?
   >> A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
