5000BPH 2019 Automatic Bird Nest Beverage Filling Capping Machine Glass Bottle Packing

Quantity:
  • UT14-12-5
  • U TECH
Description and Flow
This is full automatic 3-in-1 small bottle rinsing filling and capping machine which is piston filling type. It could be applicable for all kinds of oil, birds' nest , fruit &vegetable sauce(with or without solid piece),granule drink quantify filling and capping.It has PLC control system and is easy to operate.

The machine is a kind of professional filling machine for bird nest which applies to glass bottle. It is made of high quality SUS304 stainless steel. Main components are processed precisely by CNC machine tool. The machine adopts advanced photo electricity to detect running status. No bottle no filling. It realize man-machine conversation because of applying touch screen for operation.
Technical Parameters
Model
UT14-12-5
Stations
Washing 14 filling 12 capping 5
Capacity
5000bph
Total power
About 3 kw
Dimensions
2600*1900*2500mm
Weight
3000kg

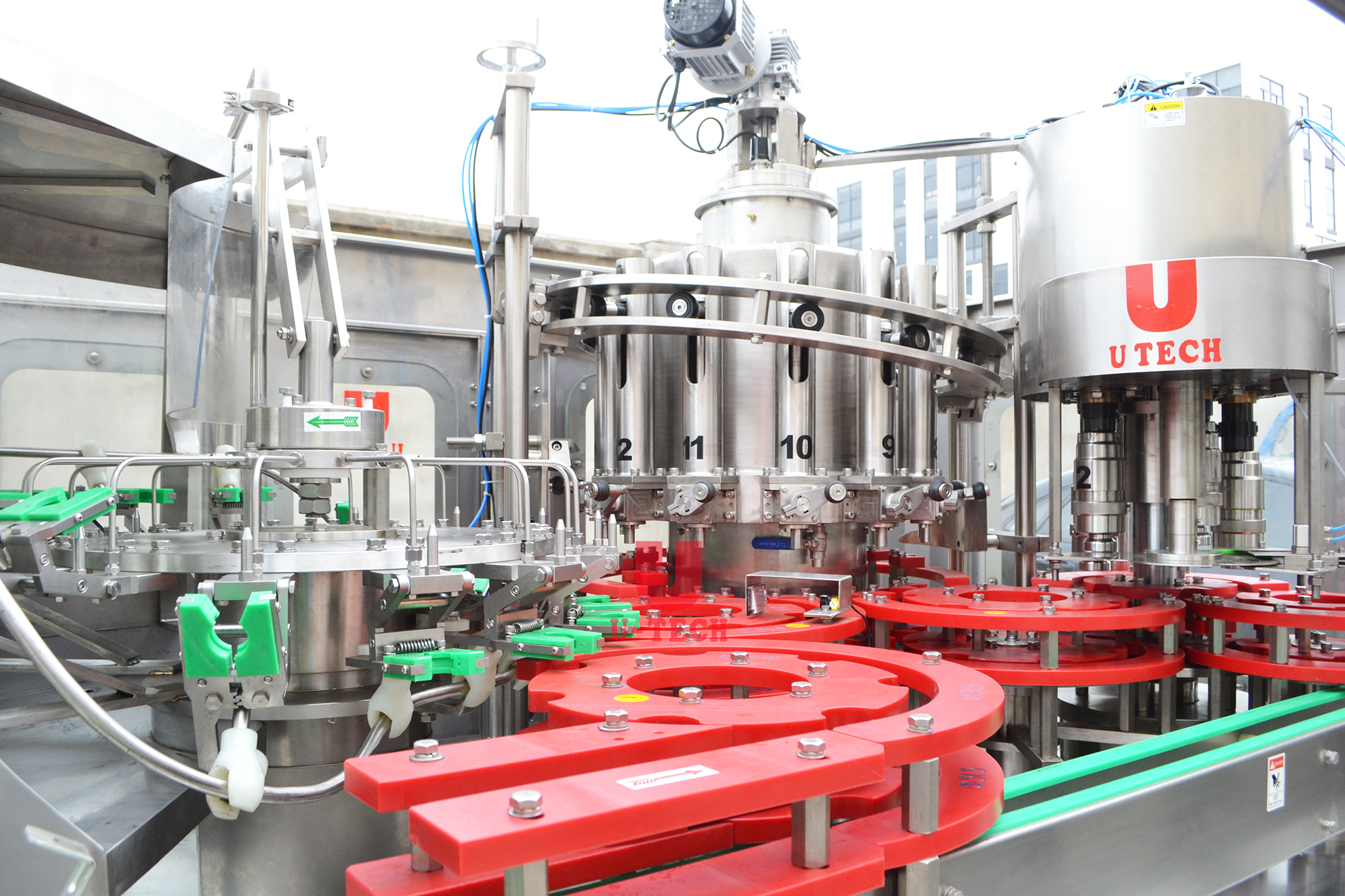

Detailed Images

Main Features

1. Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way.


2. Adopting clamping bottleneck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottleneck way in the whole conveying process. When bottle type changes, you need to change the board related with bottle diameter.


3. Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.


4. Screw capper adopts French advanced technologies which can screw cap promptly when clamping bottle.


5. The PLC and transducer are chosen from international famous brand, such as SCHNEIDER, MITSUBISHI and so on.

Bird nest processing system
1.Jacketed kettle
Capacity:600L
Power:0.75KW
2.Washing elevator
Overall size: 4000*1200*1400 (mm)Net belt width: 800mm
Power supply: 380v/50Hz
Total power: 4kW
Output: 400kg/ hour
Material: 304 stainless steel
Discharging method: automatic discharging

3.Material basket

Size: 0.8*0.8*0.1M 
Material:SUS304, with 1MM mesh

4. Leaching tank

Size:1*1*1M 
Material:SUS304, 38.1mm with drain hole

5.Manual Pick table

Size:1.2*1.2*1MSUS304
6.Sugar melting tank
a. Capacity: 300L
b. Form: three-layer closed upright type
c. Material: AISI304, 2.5mm inner liner, 1.5mm honeycomb jacket, 1.2mm outsourcing, 40mm PU foam insulation
d. Internal and external polishing 250# or 304 2B
e. Entry and exit caliber: ¢25 clip style
f. Power: AC380V, 50HZ, 0.75kw, 49RPM
g. Configuration: manhole, agitator, thermometer, breathable hood, CIP cleaning head
7.Syrup pump
Material: SUS304
Structure: hard alloy mechanical sealing
8.Syrup filter
Specification:Ф300 H500mm
Pressure: 0.2Mpa
Material:SUS304stainless steel
Capacity: 0.5T
9.Mixer tank
Specification:Ф1050 H1050mm
Power:0.75kw
Material:SUS304stainless steel
Single layer:with stirrer
Capacity:1000L
10.pump
a. capacity: 1000-2000l /H H=20mH2O
b. form: food grade self-priming
c. Power: AC380V, 50HZ, 0.75-1.1kw
d. The material in contact with the product is AISI304
11.High level storage tank
a. capacity: 300L
b. form: two-floor closed upright type
c. Material: AISI304, 2mm inner liner, 1.2mm outsourcing, 40mm PU foam insulation
d. Internal and external polishing 250# or 304 2B
e. ¢38
f. Power: AC380V, 50HZ, 0.75kw, 49RPM
g. Configuration: manhole, agitator, level sensor, breathable hood, CIP cleaning head
12.CIP pump
a. capacity: 8000L/H H=18mH2O
b. form: food grade self-priming
c. Power: AC380V, 50HZ, 1.5kw
d. The material in contact with the product is AISI304
15.CIP machine
Material: SUS304
Structure: 3 tanks type, automatic control

Model UT 14-12-5
Washing heads14
Filling heads12
Capping heads5
Capacity4500-5000BPH (500ml)
Suited bottlesDesign by part glass
Enter source pressure0.7MPa
Enter consumption0.8 m3/min
Rinser water pressure0.20.25MPa
Rinser water consumption1-2t/hr
Working AC380V
Control DC24V
Main motor power2.2KW
Main power5.5KW
Diamension2260X1610X2750mm
Weight4000kg
