Product Description

Product Introduction

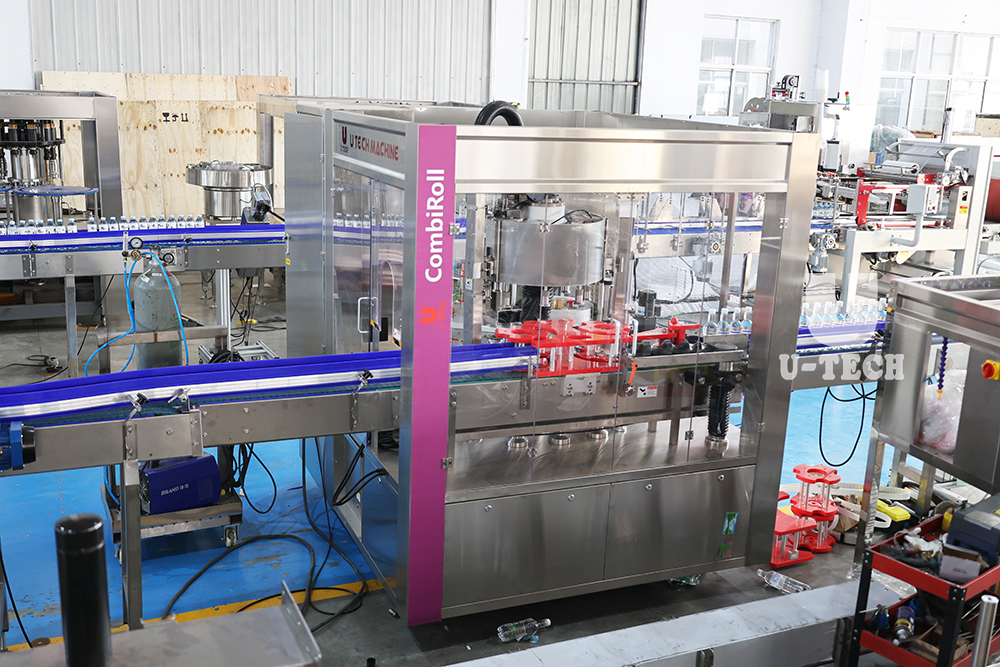

 CGF series bottled water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.Different models can satisfy various requirement of output from 2000BPH to 36000BPH.The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable.The photoelectric sensor detect all part running state, with high degree of automation, easy operation.

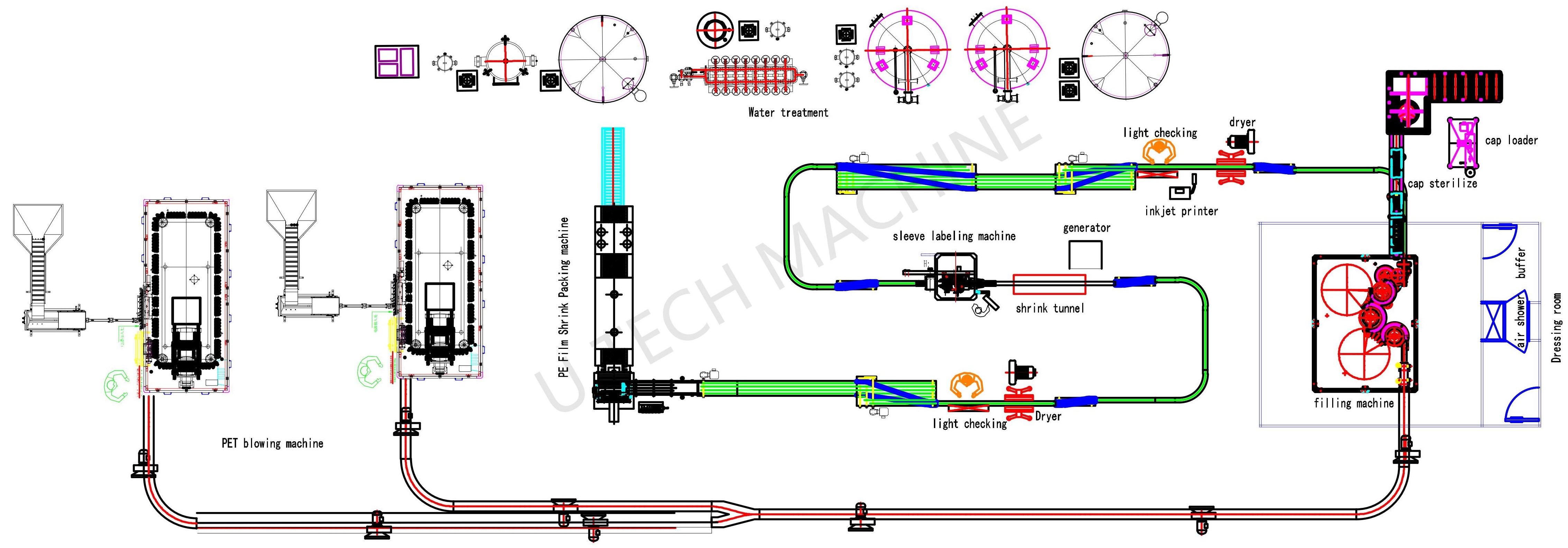

 Water filling line drawing

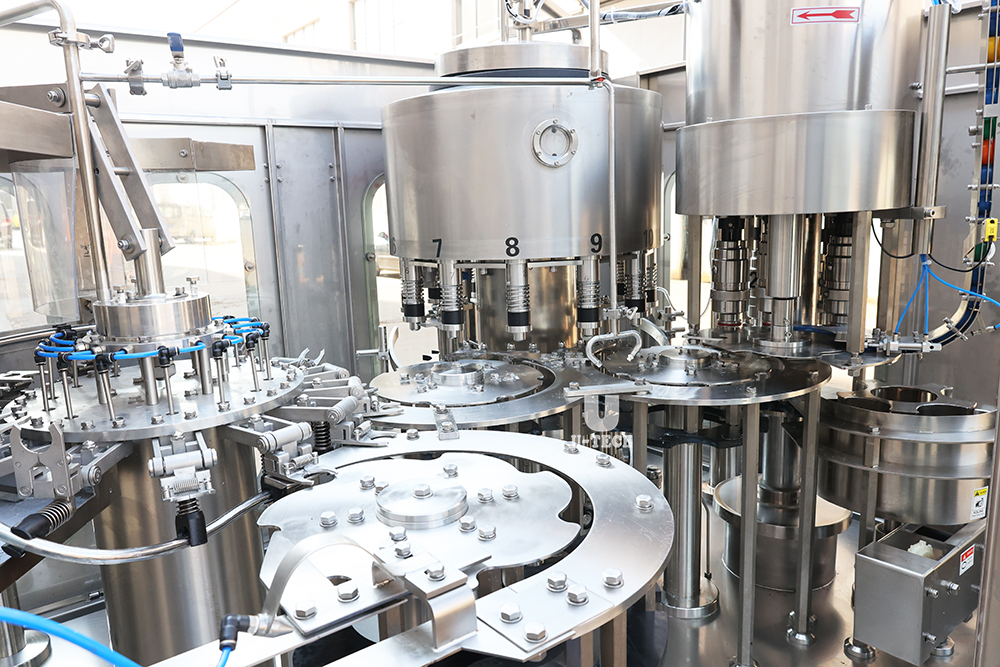

Filling Machine Details

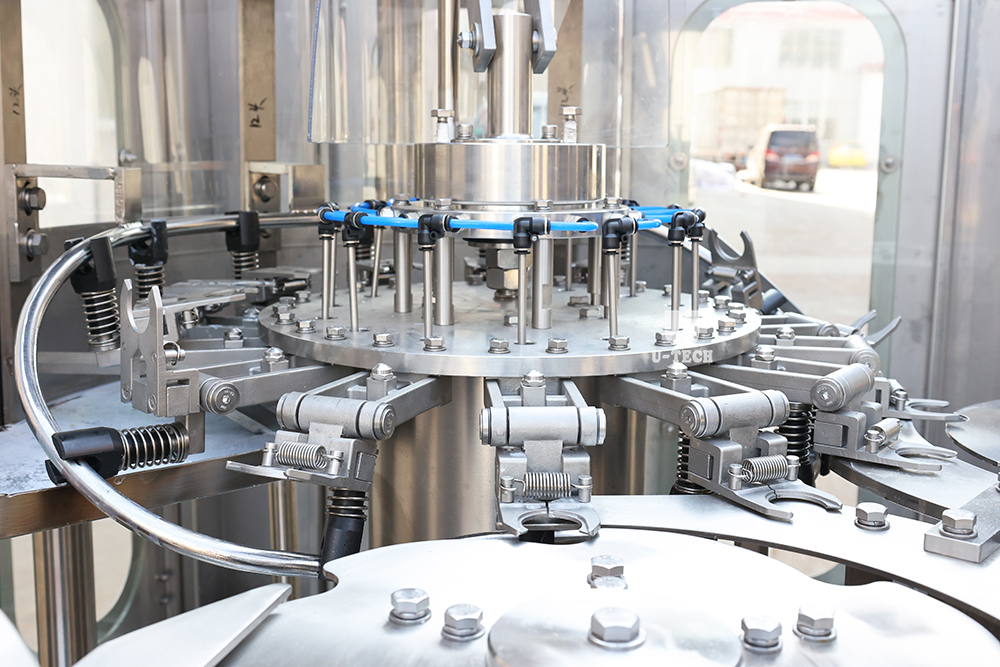

Washing heads



<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

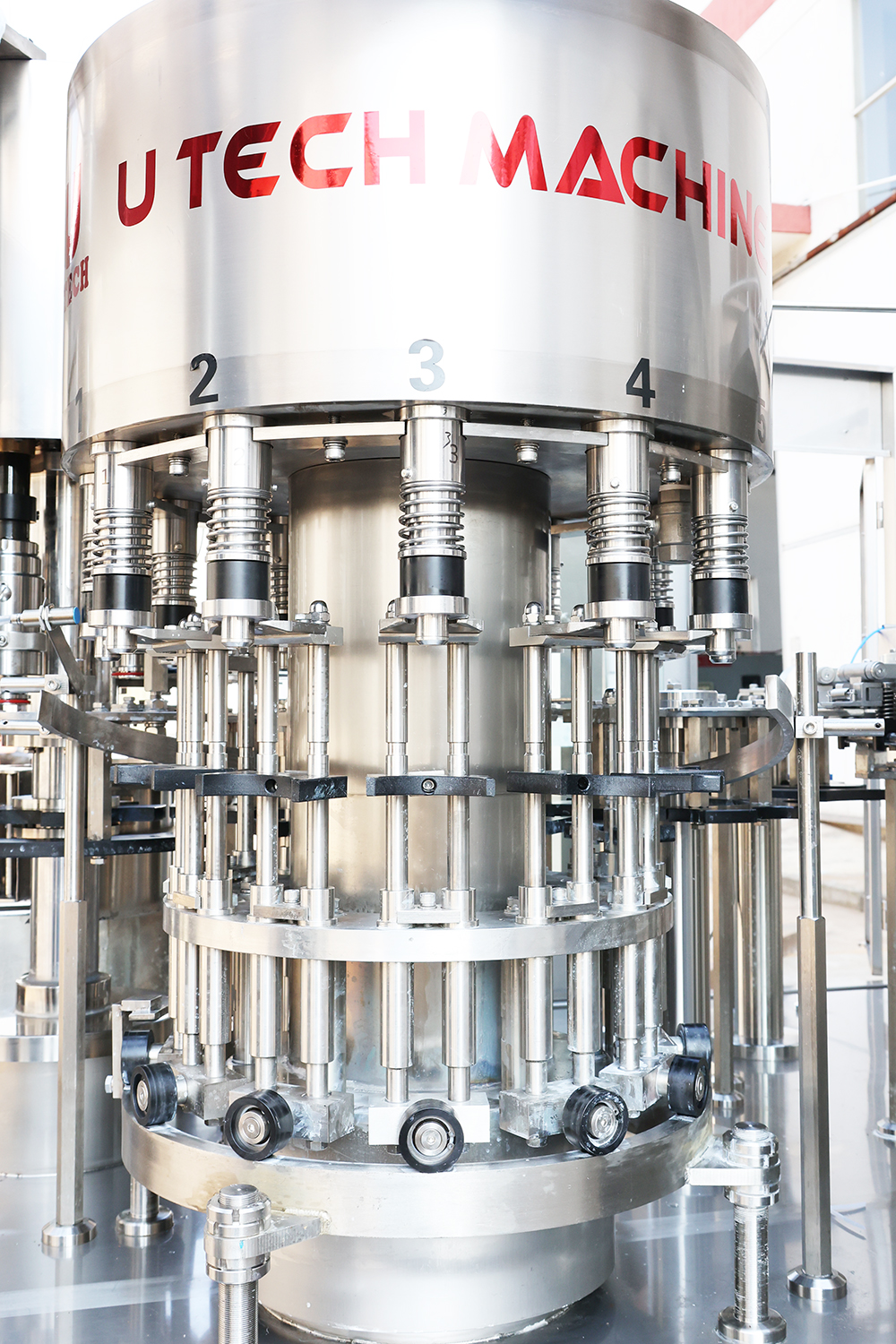

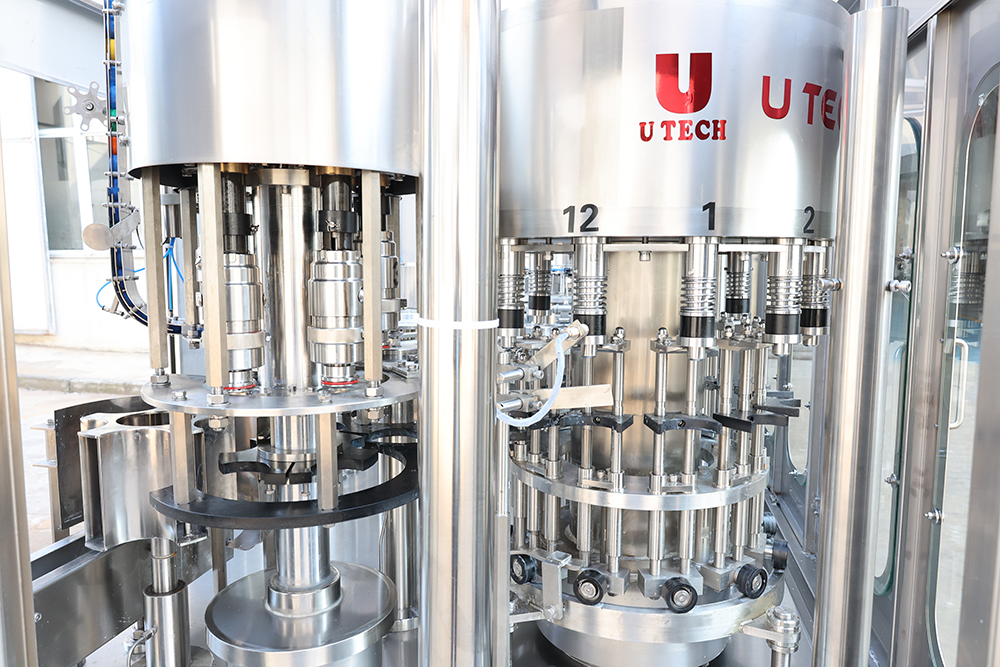

Filling heads


<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump

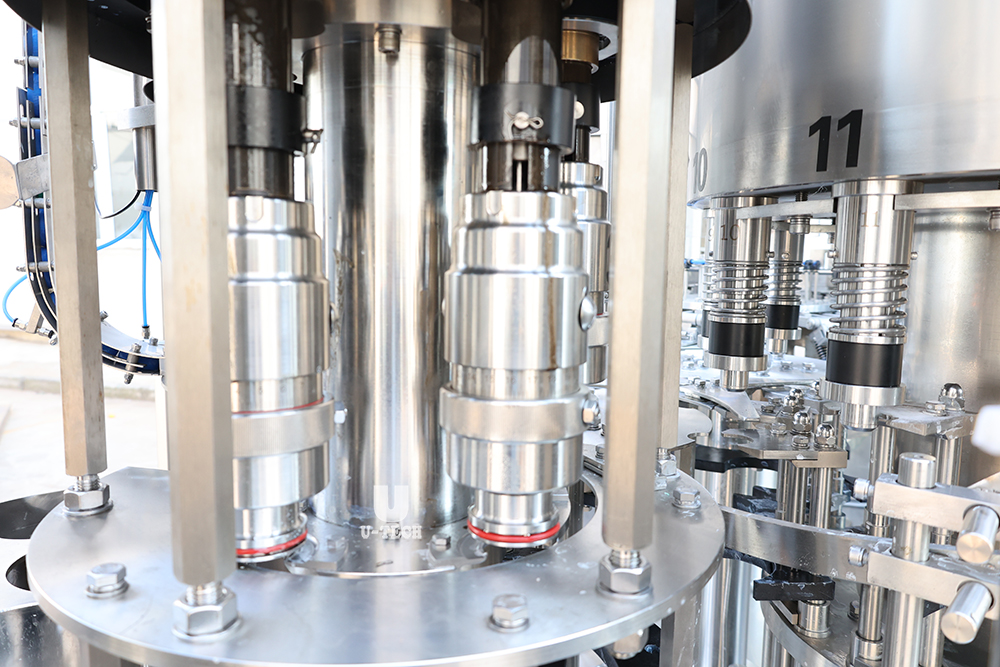

Capping heads



<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle

Technical Parameters

Model	CGF8-8-3	CGF14-12-5	CGF16-16-6	CGF24-24-6	CGF32-32-8
Capacity(500ML)	2000PBH	5000PBH	8000PBH	12000PBH	15000PBH
Washing heads	8	14	16	24	32
Filling heads	8	12	16	24	32
Capping heads	3	5	6	6	8
suitable bottle	PET bottle,plastic bottle
Diameter of bottle	55-110mm
Height of bottle	150-310mm
Suitable cap	Plastic screw cap
Weight	1500kg	2000kg	4000kg	4500kg	6000kg
Main motor power	1.2kw	1.5kw	3kw	3kw	3kw

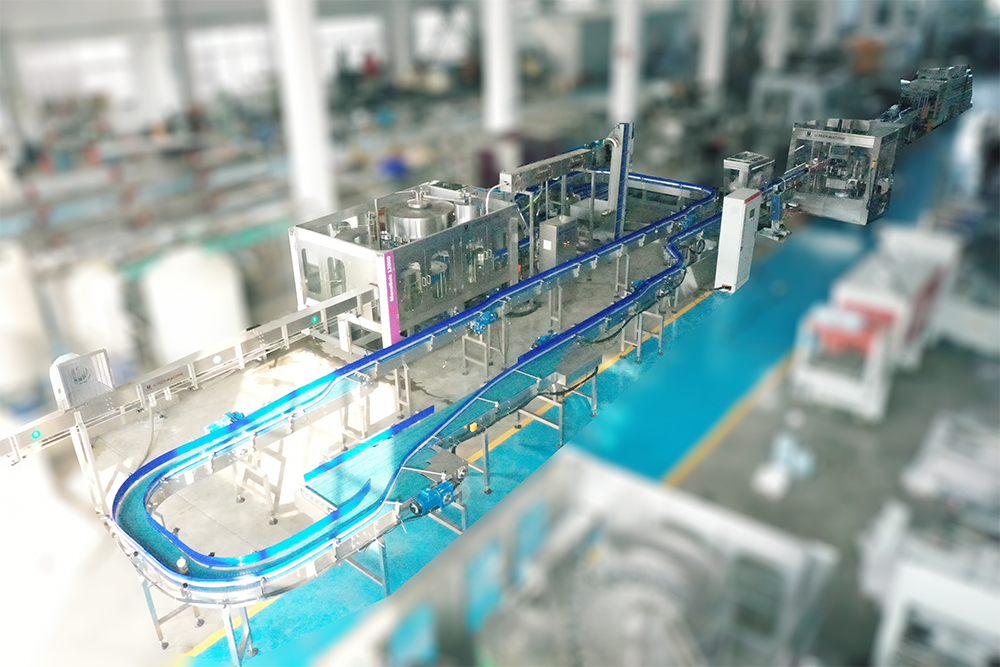

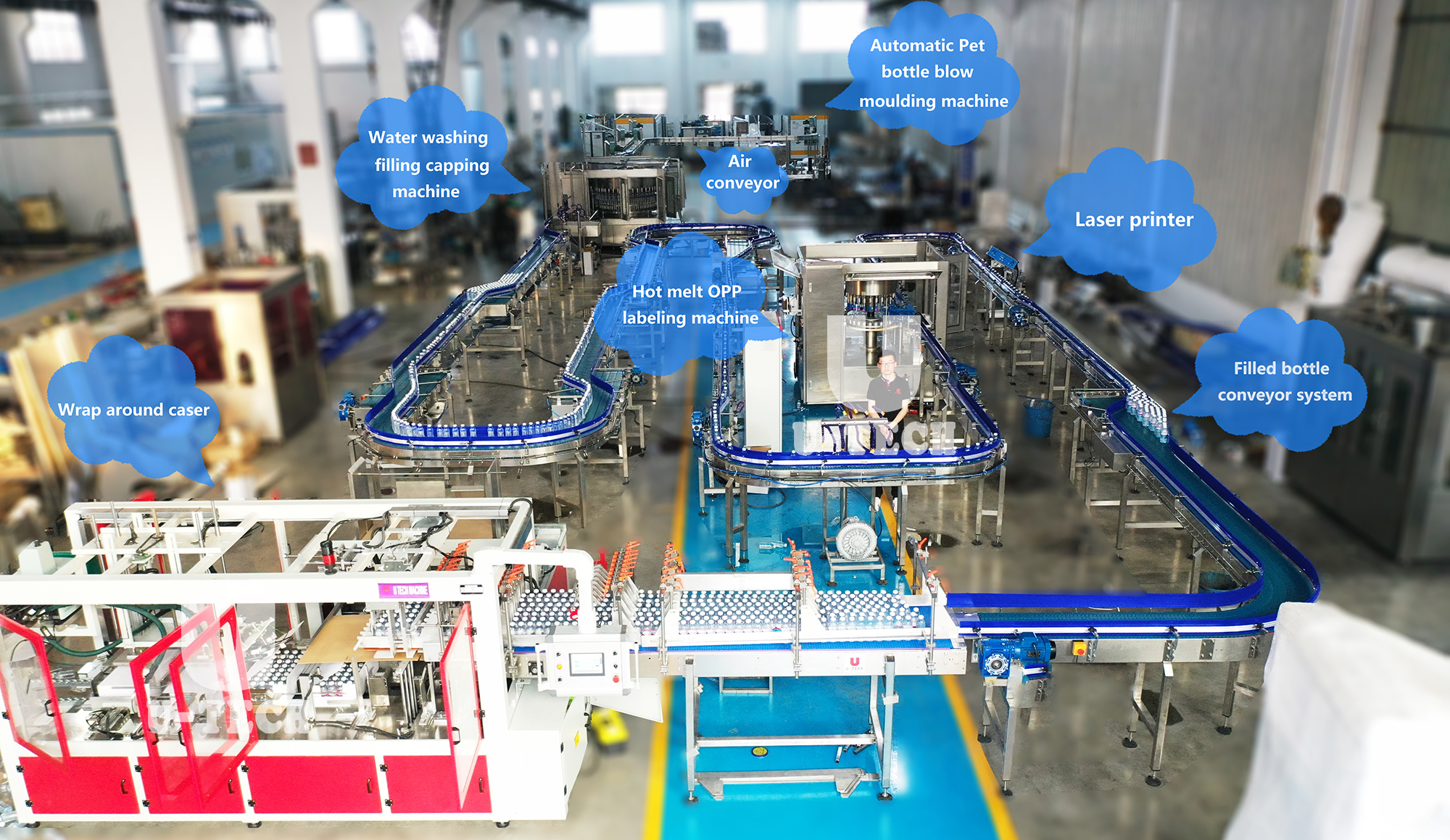

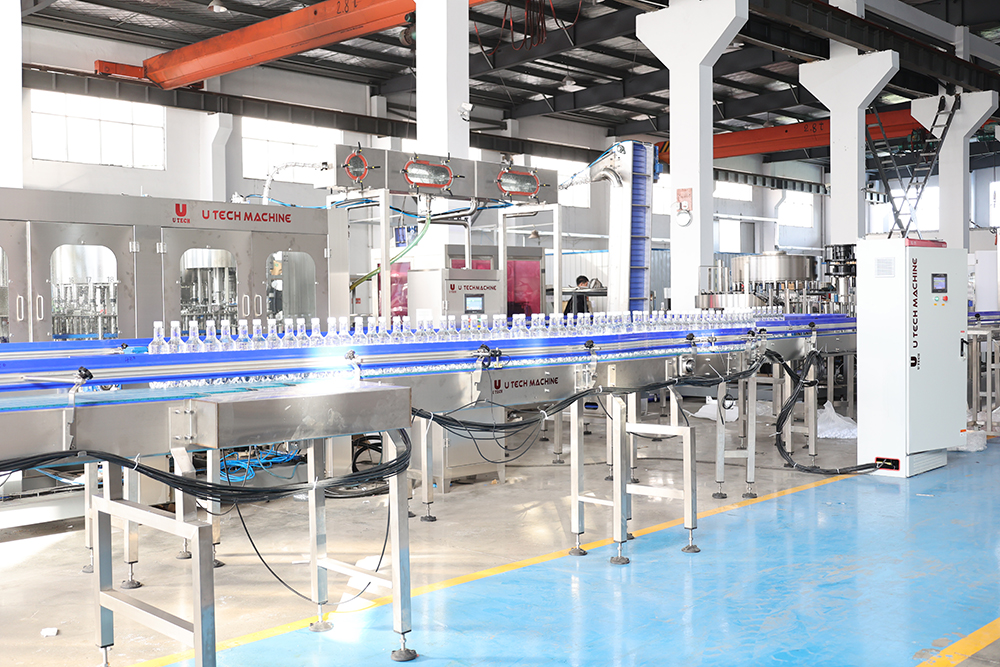

Production line flow

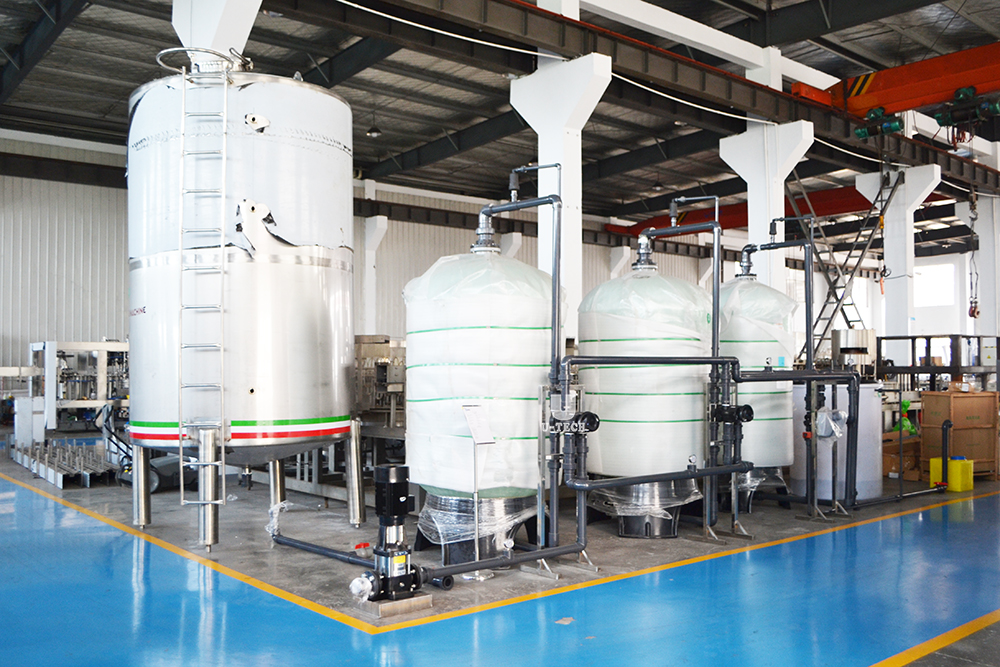

Water treatment system

 The system is the process of purifying the raw water by a series equipments and devices to be drinkable.

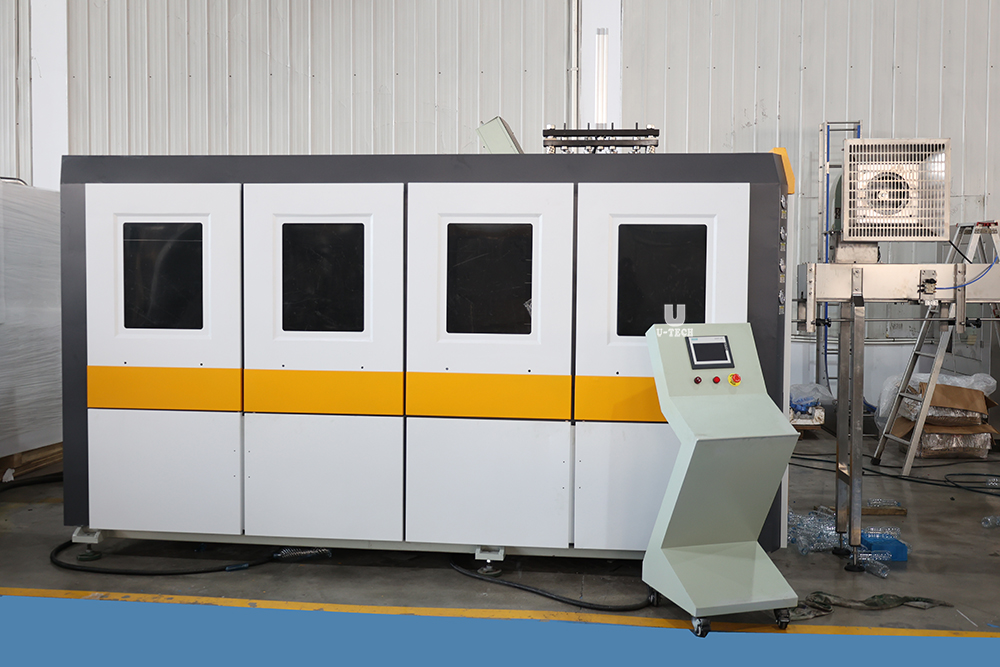

Automatic PET bottle blow moulding machine

 Suitable for blowing any kind of carbonated fruit juice beverage sparkling pure mineral water bottle.

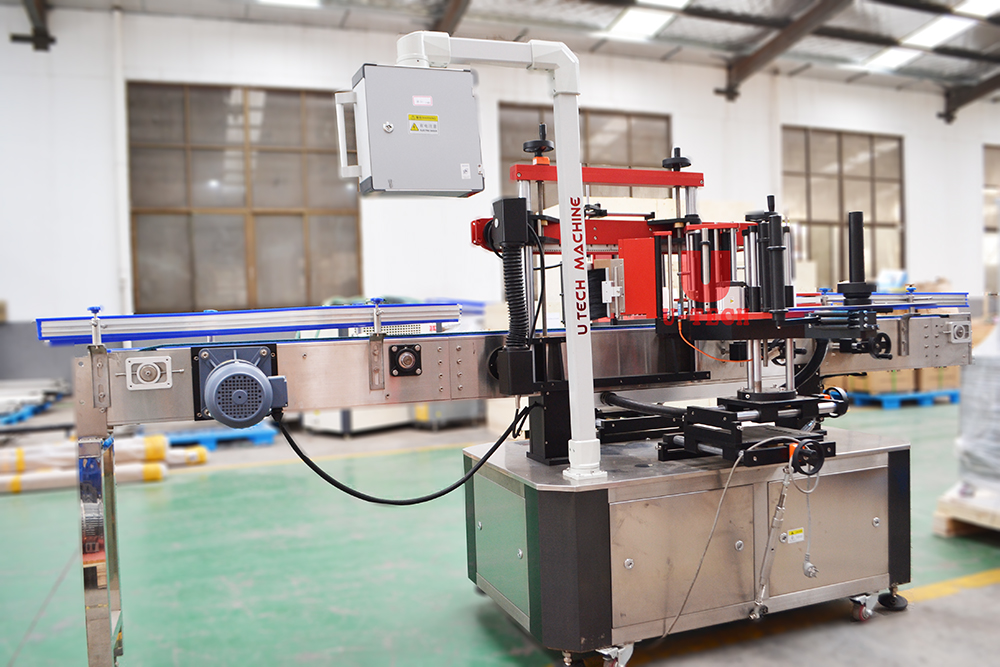

Hot melt glue OPP labeling machine

 This OPP labeling machine or hot melt adhesive labeler is suitable for labeling OPP material labels.

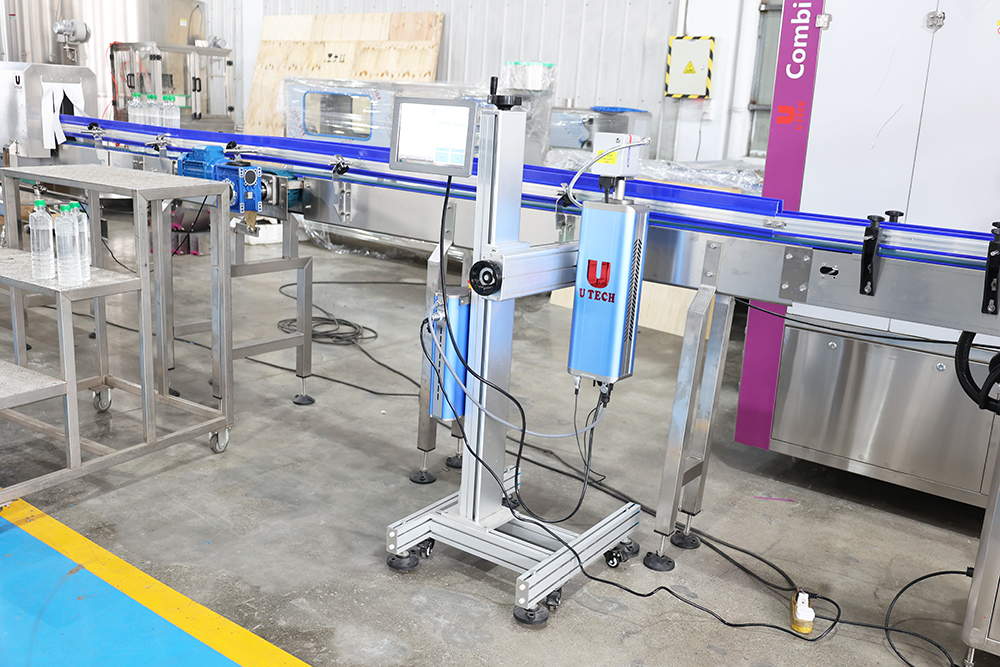

Laser printer

 The pet bottle laser printer is suitable for cables PE pipes, automatic production line of date code or bar code.

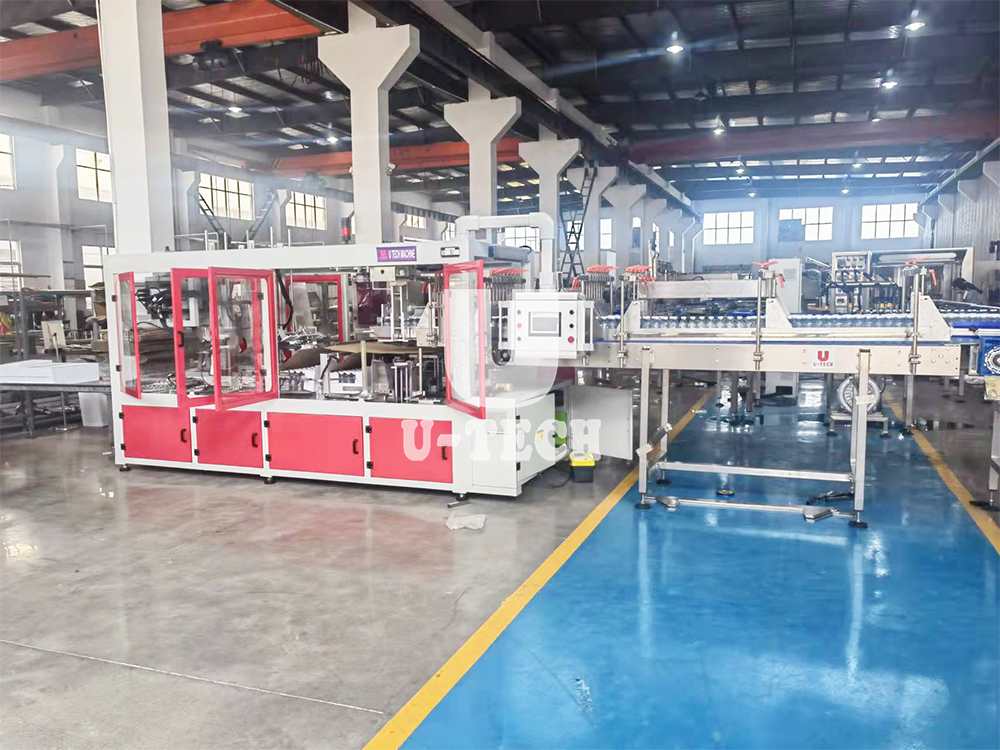

Wrap around caser

 The machine shapes the cartons automatically and closes their bottoms flaps within hot glue.

 Related products

 Cap injection molding machine

 Semi-Automatic PET Bottle Blowing Machine

 Sleeve labeling machine

 Adhesive labeling machine

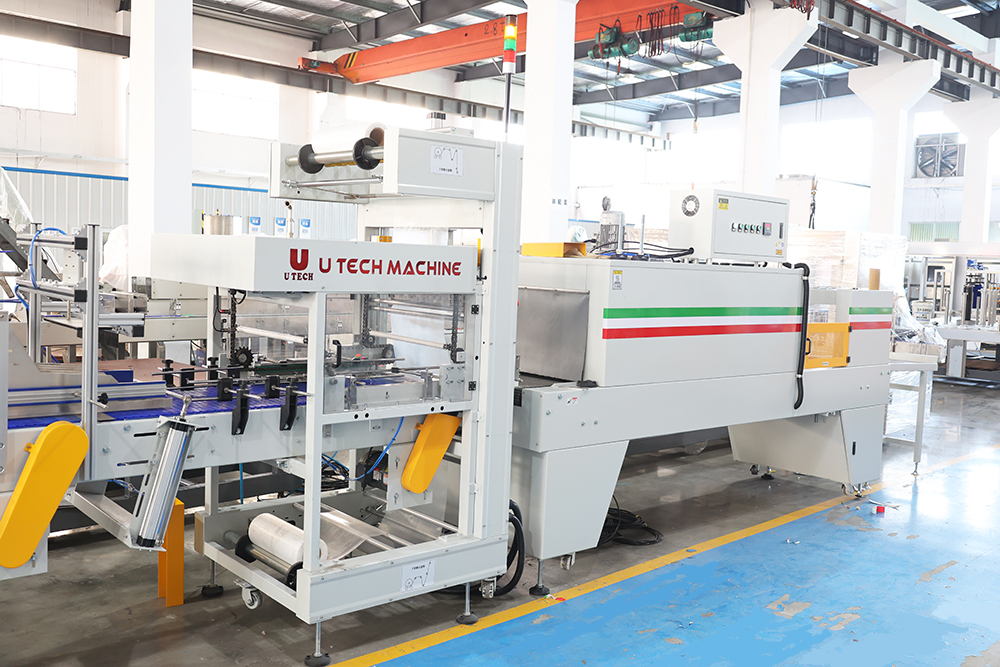

 Shrink packing machine
